8 Installation
StorCase Technology, Inc. DE90i-A66 User's Guide - Rev. A01
Installing the Receiving Frame
The drive should be installed into the carrier before installing the receiving frame into the
mounting bay of a computer or expansion chassis.
NOTE: Use a #2 Phillips screwdriver during this procedure.
1. Turn OFF power to the computer.
2. Open the computer system according to the manufacturer’s instructions. If
necessary, temporarily remove any expansion boards that may make
installation difficult.
3. Select the Master/Slave configuration on the rear of the receiving frame by
placing a jumper on the appropriate (J5) pins (Figure 6).
NOTE: Invalid jumper configuration of J5 will cause all LEDs (A, B, C) to blink
(Refer to Table 2).

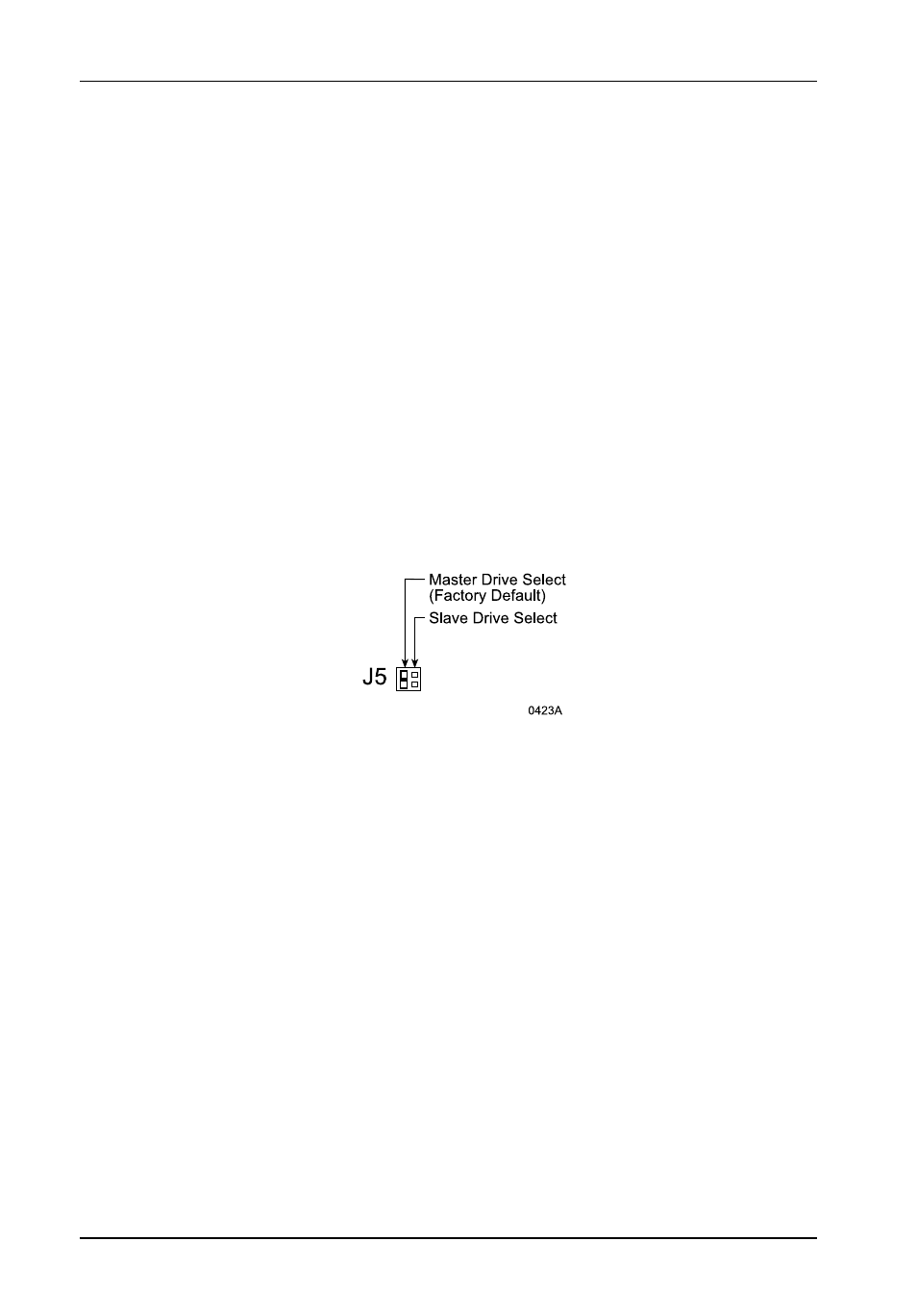

Figure 6: Master/Slave Configuration Jumper J5
4. With the drive carrier locked in place inside the receiving frame, install the
DE90i-A66 into the 5.25" drive opening in the computer or expansion chassis.
Use the appropriate guides to position the Data Express, and fasten it into
place with the four (4) #6-32 x 1/4 screws provided. Figure 7 illustrates the
location of the mounting holes. Mounting holes are provided on each side and
the bottom of the receiving frame to accommodate a variety of mounting
configurations. Use the mounting holes which best suit the computer or
expansion chassis configuration.
NOTE: Bottom mounting holes require self-tapping screws (not provided).
5. Adjust the front of the receiving frame so that the carrier slides freely in and
out on the receiving frame guides. The position of adjoining peripheral units
may require adjustment.
