Installation

StorCase Technology, Inc.

DE90i-A User's Guide - Rev. B02

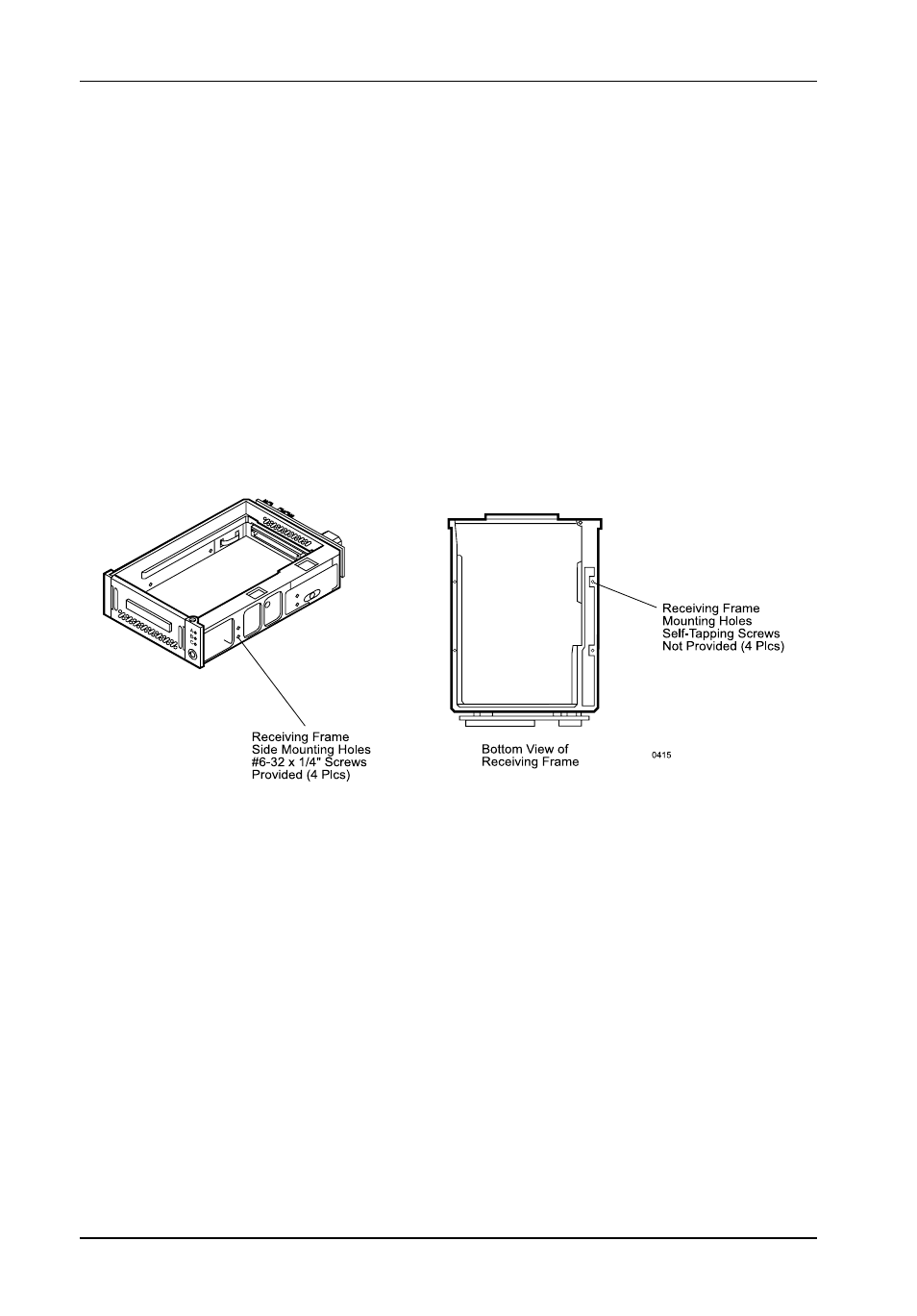

Figure 8: Receiving Frame Mounting Holes

To connect the drive to a remote activity LED in the computer system, connect

the appropriate cable(s) to the receiving frame circuitboard at J7 Pins A & C, as

shown in Figure 4.

Connect the I/O cable from the host adapter to the receiving frame. The Pin 1

indicator on the cable must be properly aligned. Refer to Figure 3 for the correct

Pin 1 location.

Connect the power cable from the DC power supply in the computer or expansion

chassis to the power connector on the DE90i-A receiving frame. Refer to Figure

4 for the DE90i-A receiving frame power connector location.

With the drive carrier locked in place inside the receiving frame, install the

DE90i-A into the 5.25 drive opening in the computer or expansion chassis. Use the

appropriate guides to position the DE90i-A, and fasten it into place with the four (4)

#6-32 Phillips screws provided. Figure 8 illustrates the location of the mounting

holes. Mounting holes are provided on each side and the bottom of the receiving

frame to accommodate a variety of mounting configurations. Use the mounting holes

which best suit the computer or expansion chassis configuration.

NOTE: Bottom mounting holes require self-tapping screws (not provided).

Adjust the front of the receiving frame so the carrier slides freely in and out on the

receiving frame guides. The position of adjoining peripheral units may require

adjustment.
