DE90i-A User's Guide - Rev. B02 StorCase Technology, Inc.
Installation 13
J4 J4A
Reserved
Slave Drive Select
Master Drive Select
(Factory Configuration)
0423

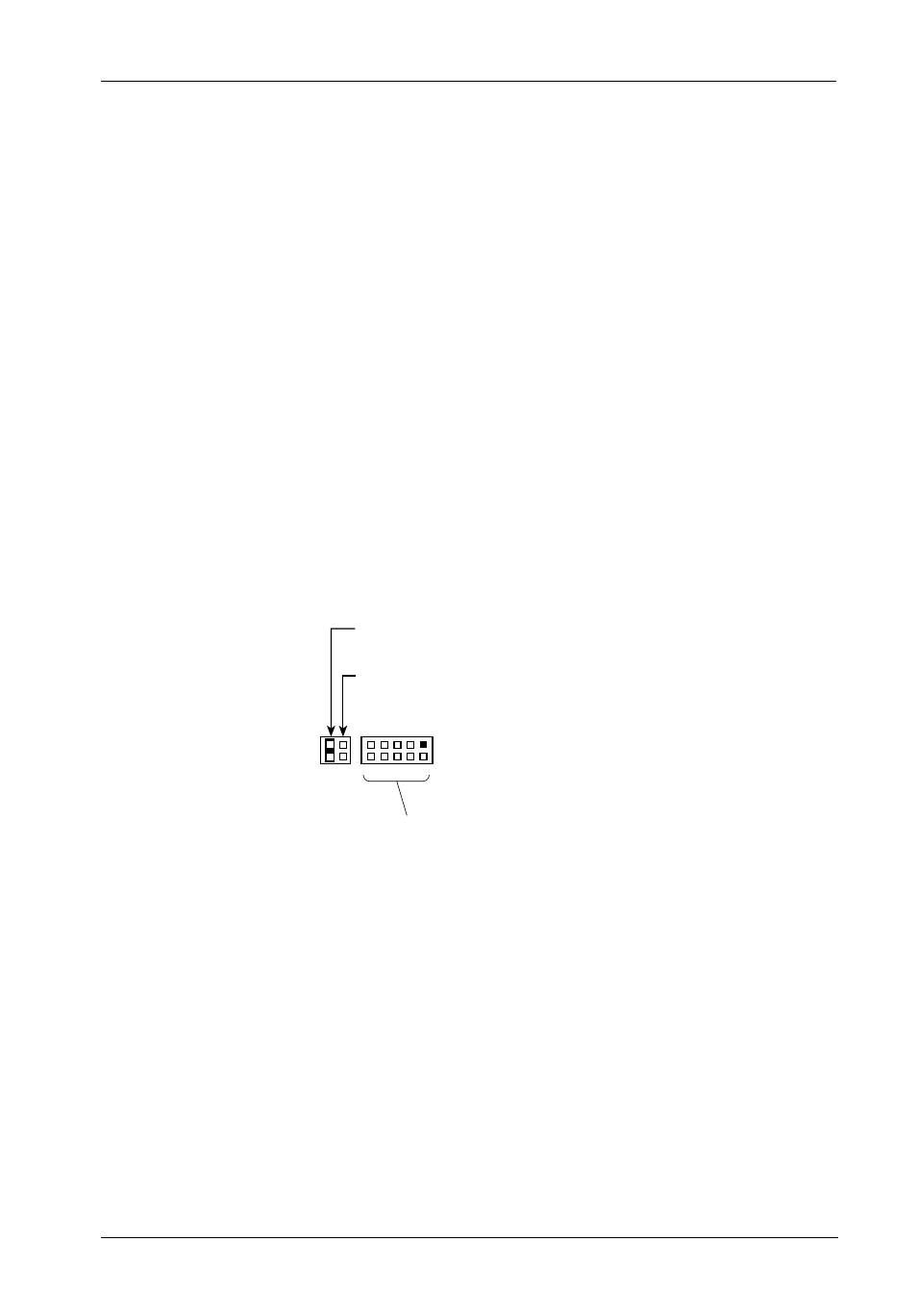

Figure 8: Master/Slave Configuration Jumper J4A
Installing the Receiving Frame
The drive should be installed into the carrier before installing the receiving frame into the
mounting bay of a computer or expansion chassis.
NOTE: Use a #2 Phillips screwdriver during this procedure.
1. Turn OFF power to the computer.
2. Open the computer system according to the manufacturer’s instructions. If
necessary, temporarily remove any expansion boards that may make installation
difficult.
3. Select the Master/Slave configuration on the rear of the receiving frame by placing
jumpers on the appropriate (J4A) pins (Figure 8).
