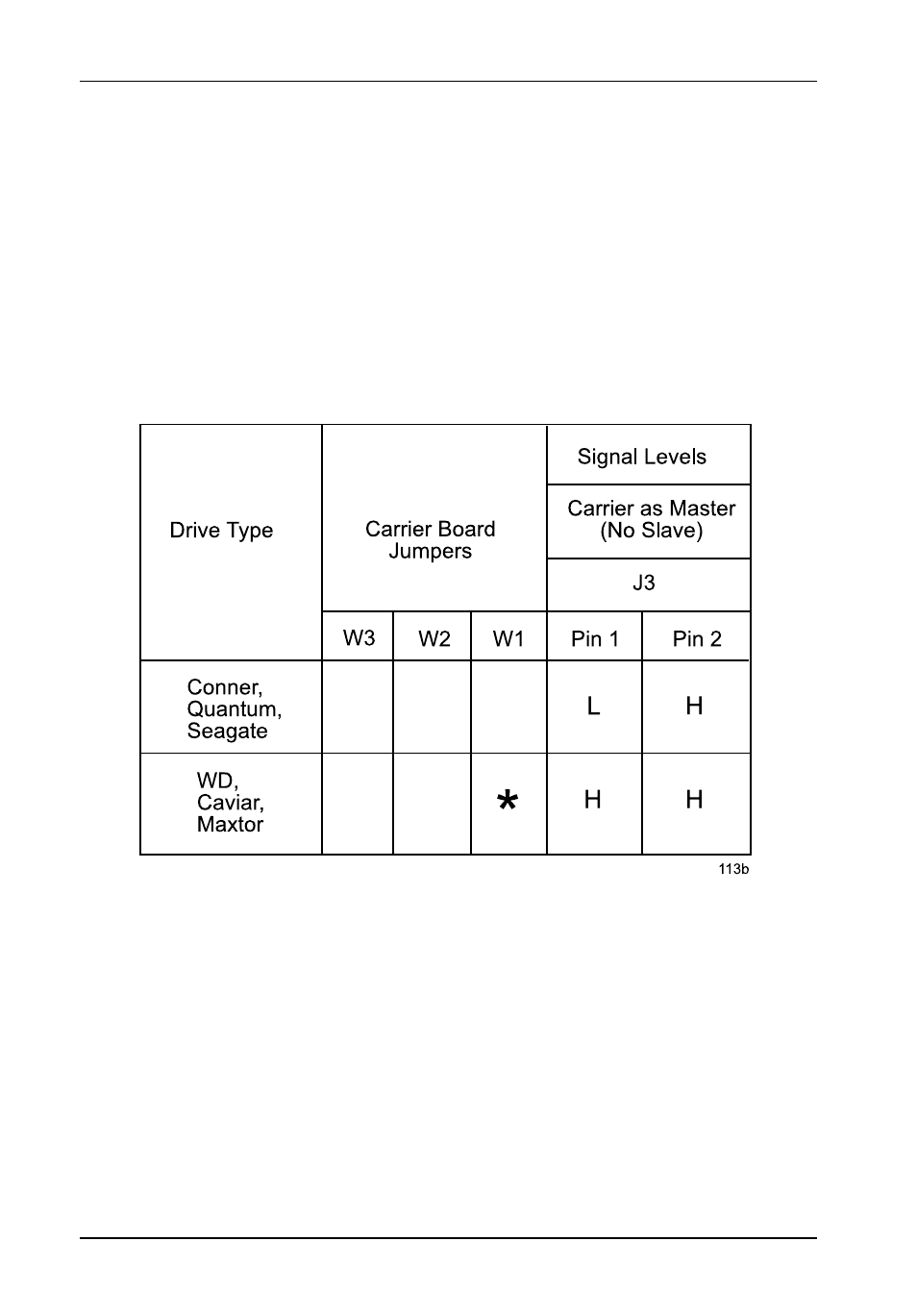

Table 3: J3 Master (No Slave) Signal Levels
*
corresponds to a jumper installed on the carrier
L (Low) corresponds to an installed jumper on the drive.
H (High) corresponds to a removed jumper on the drive.
If a slave drive is removed, Table 3 shows the signal levels on J3 Pin 1 & Pin 2 that will result
for different W1, W2, and W3 jumper settings.
