 To limit the pickup of electrical noise, keep thermocouple and millivolt signal
wires as far as possible from power and load lines.
 If noise persists for a device, try grounding the opposite end of the cable shield
or ground both ends of the shield.
2.6.1 Wiring Diagram

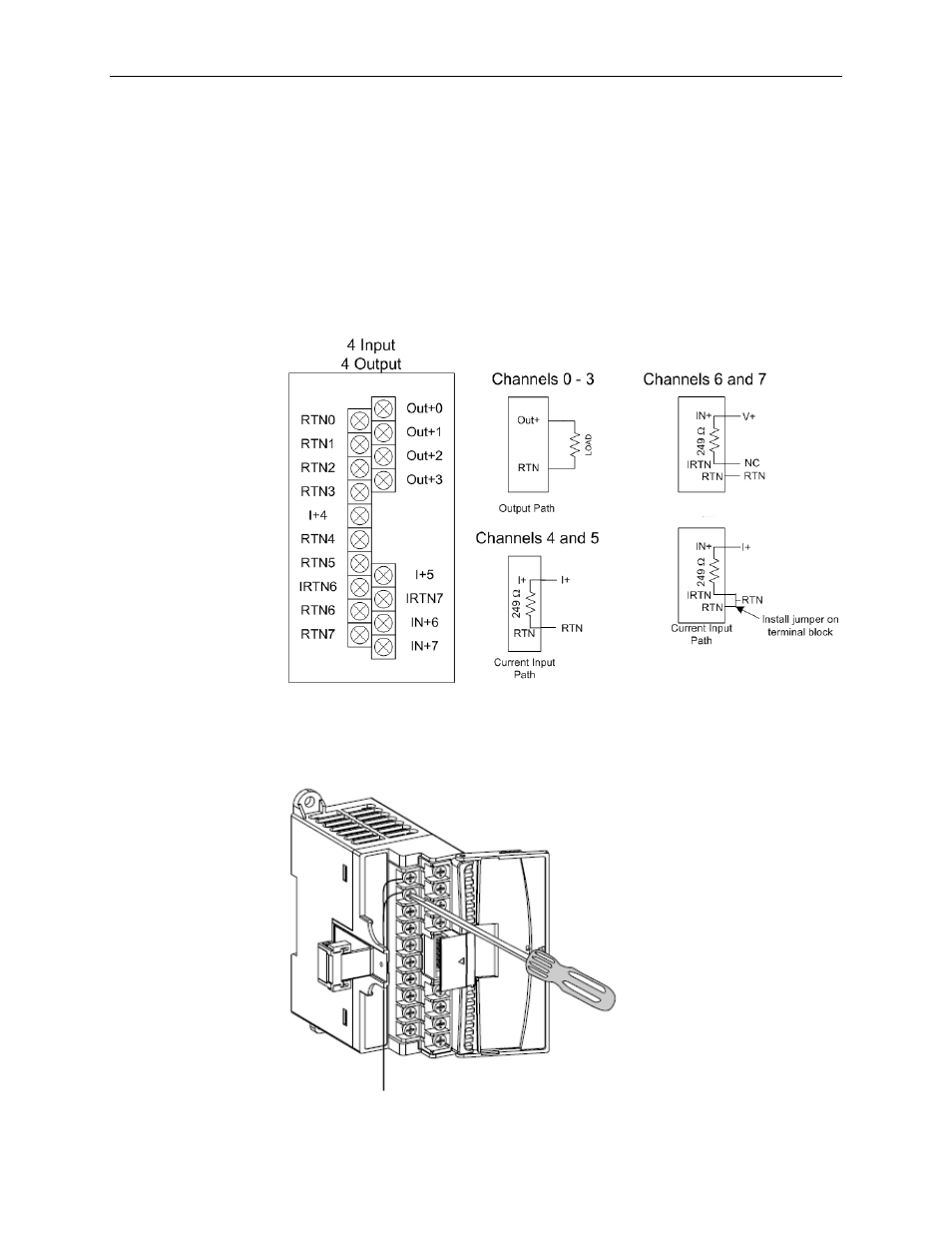

Refer to the following wiring diagrams for field wiring connections.
2.6.2 Wiring the Finger-Safe Terminal Block
Figure 2-6
Voltage/TC Input
Path
Figure 2-5 (Wiring Diagram)
