18
Hence, there is not a right or wrong position for a ground lift switch. If
either position improves an otherwise hummy-buzzy situation, that is the
right position.
The ASC with the optional transformer gives you two choices of
balanced outputs; electronic active balanced at the 1/4” TRS jack or
transformer balanced at the XL connector. On the Model ASC-T, the
transformer is wired only to the XL connector and the balanced active
output is wired only to the to the 1/4” TRS jack.
To prevent the transformer from interacting with the electronic active
output circuit, the XL output is automatically disabled when the 1/4”
TRS output jack is used on the ASC-T version.
This connector will accept the 4 pin rectangular plug of the power
module cable. This connector and respective plug are keyed so they will
fit in only one direction. For installation instructions refer to
"Connecting the Power Module" as described in Chapter 2.
For installations where the ASC is subject to extreme vibration or
movement, the wire tie holder may be used to secure the power cable.

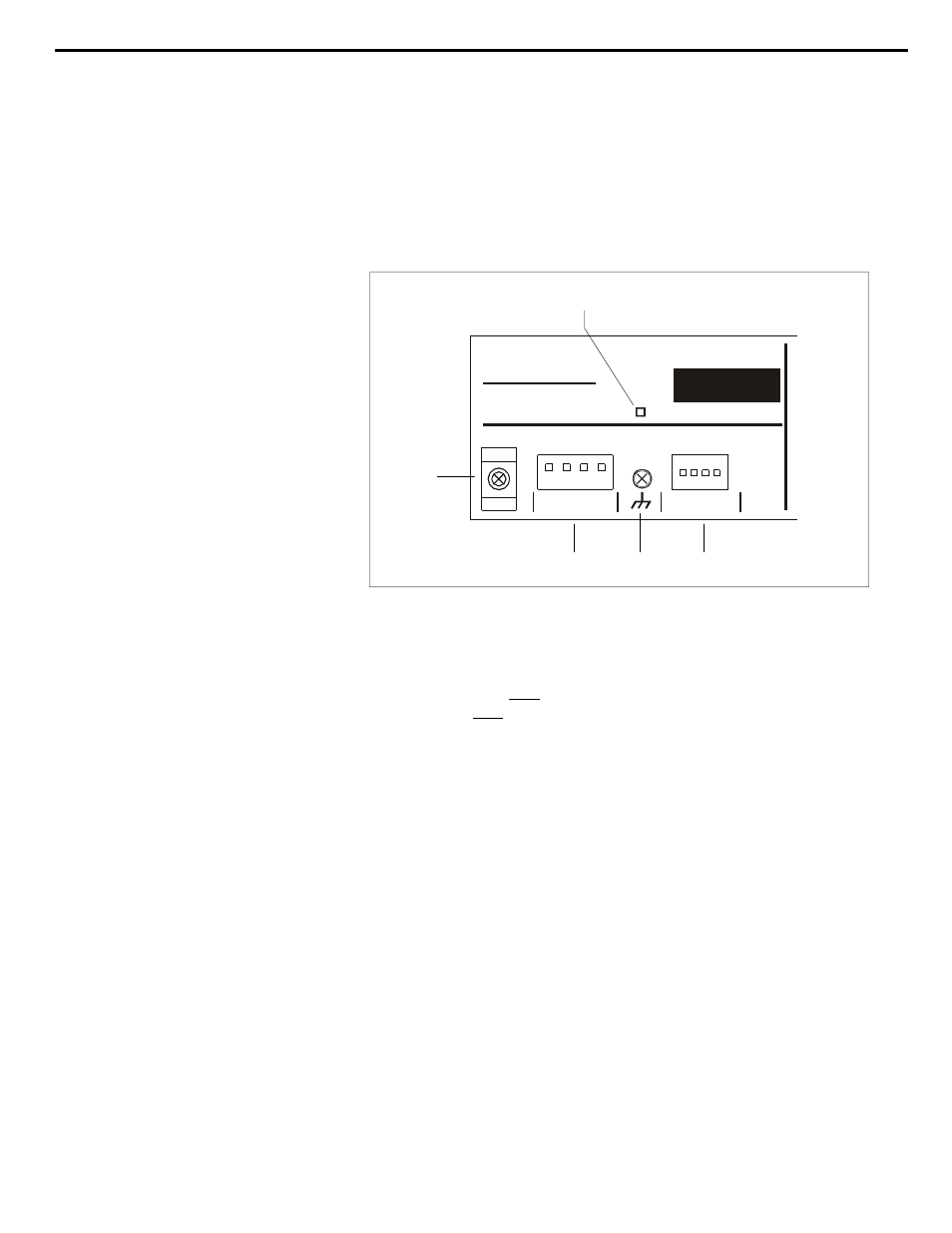

20. Power Supply Connector
21. Wire Tie Holder
Chapter 3 Operation Section
19
21
20
USE WITH SPECK
PRODUCTS ONLY
speck
electronics
Model ASC - 4 Band Equalizer
OUTPUT TRANSFORMER OPTION
Fallbrook, California
S/N
POWER AUX DC I/O
USE WITH PS-4
POWER MODULE
19. Transformer Option
(for Model ASC-T only)
22 23
