G AS C ONVECTION O VENS
OPERATOR’S MANUAL 1181887 REV 9 (10/14) PAGE 11 OF 44
2. Install eye-bolt (item “F”) to a frame member on the rear of the equipment. After checking carefully behind the frame
member for adequate clearance, drill a 1/4” hole through the frame member.
3. Thread hex nut (item “G”) and slide the washer (item “H”) onto the eye-bolt. Insert the eye-bolt through the 1/4” drilled
hole and secure with a washer (item “H”) and nylon lock nut (item “I”).
4. Using the spring-loaded snap hooks, attach the restraining device to the bracket and the eye-bolt.
5. Using the cable clamp (item “D”), adjust the restraining device extended length to prevent over-bending or kinking of
the appliance connector.
For units not equipped with flame safety devices, be sure all valves are turned off prior to disconnecting. After
reconnecting, be sure that the oven is switched OFF.
Double-deck ovens can be shipped already assembled, but can instead be shipped as two single-deck ovens to be
stacked in the field. Also, ovens that were originally ordered as single ovens can be stacked in the field (additional parts
are required). This installation step describes the procedure for stacking two single-deck ovens to form a double-deck
oven.
1. Uncrate the two ovens. Identify the oven that will be the lower oven (it will be the oven with leg pads attached to the
bottom corners). Attach the legs (or casters) to the lower oven as described in Step 2c.
2. If the oven that will be the top oven was NOT ordered as part of a double-deck oven, remove the four leg pads from
the bottom of the top oven.

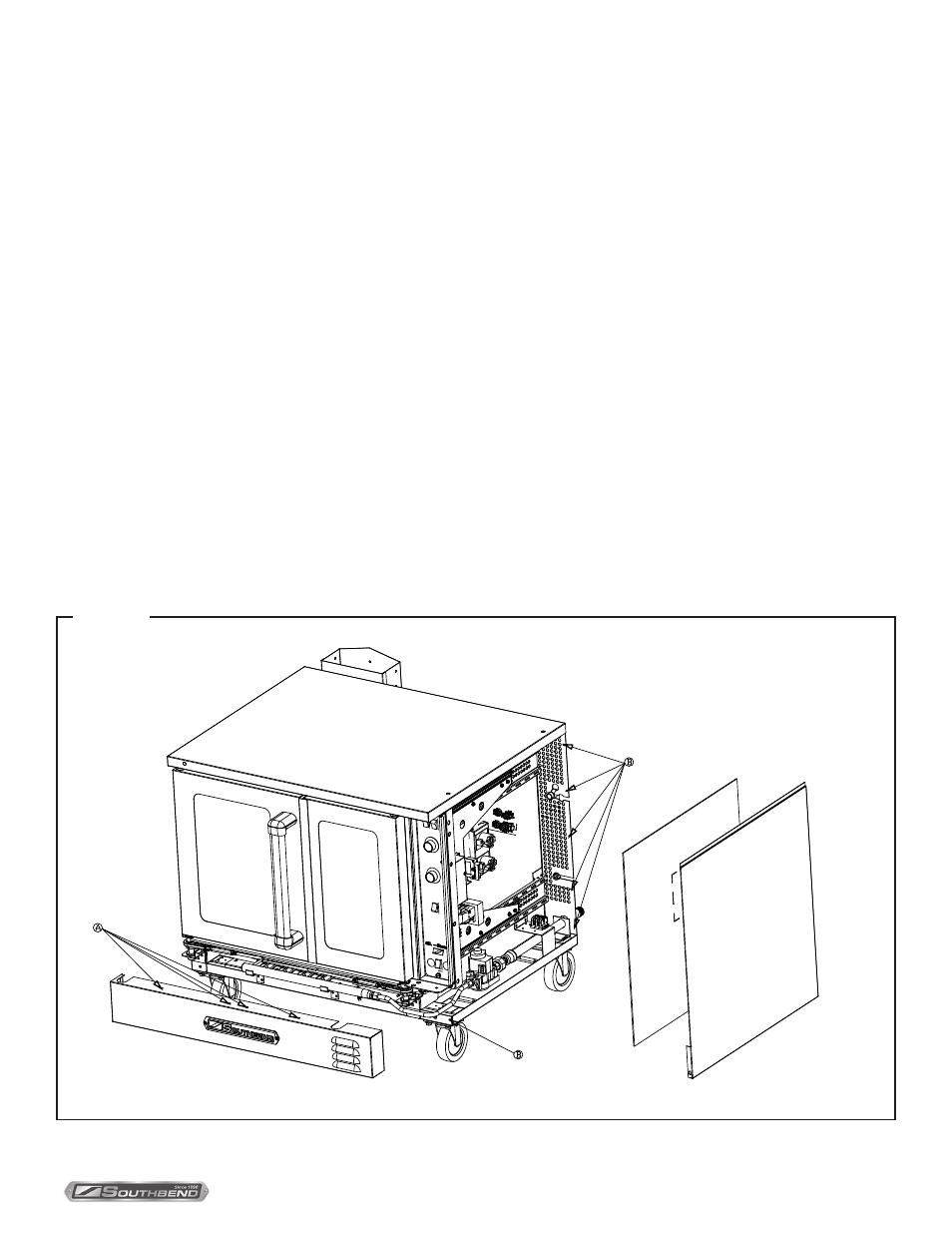

3. Locate and remove the four screws that secure the lower front panel (items “A” in the drawing below). Lift up the
panel and pull it forward to remove it, then set it aside.
4. Locate and remove the six screws that secure the right side panel to the oven (items “B” in the drawing below).
Remove the right side panel and insulation and set them aside.
I NSTALLATION
Figure 5
S TEP 4 : S TACK D OUBLE- D ECK O VEN (F NECESSARY)
