29
*Order Quantity As Required
FURNISH CATALOG, SERIAL, AND MODEL NUMBER
WHEN ORDERING PARTS
Fig. Part
No. No. Description
1. PT280-208 Long Tapping Screw (2)*
2. 68819 Product Label
3. PT280-221 Right Housing
4. PT280-203 Grip
5. PT280-210 Nut
6. PT280-244 Ball Bearing
7. PT280-234 Ball Bearing
8. PT280-202 Toothed Belt
9. PT280-235 Set Screw (2)*
10. PT280-232 Toothed Pulley (2)*
11. PT280-233 Ball Bearing
12. PT280-246 Inner Bulkhead Bracket
13. PT280-247 Flange Washer
14. PT280-248 E Type Clip
15. PT280-242 Key
26. PT280-209 Short Tapping Screw (10)*
16. PT280-241 Drive Shaft
17. PT280-204 Washer
18. PT280-207 Screw
19. PT280-206 Square Key
20. PT280-201 Right Bevel Gear
21. PT280-245 Left Bevel Gear
22. PT280-243 Ball Bearing
23. PT280-205 Direction of Rotation Label
24. PT280-222 Left Housing
25. PT280-231 Spindle
NOTE: Pre-Assembled Sets Recommended for
Replacements:
PT280-220 Housing Set
(Includes Figs. 3, 24)
PT280-230 Spindle Assembly
(Includes Figs. 7, 9-11, 25)
PT280-240 Drive Assembly
(Includes Figs. 6, 9-10, 12-16,
21-22)
Not shown:
PT280-300 Hub Set
PT280-301MP5 Wire Wheel Coarse (5 Pak)
PT280-302MP5 Wire Wheel Fine (5 Pak)
PT280-303MP3 Rubber Eraser (3 Pak)
Fig. Part
No. No. Description

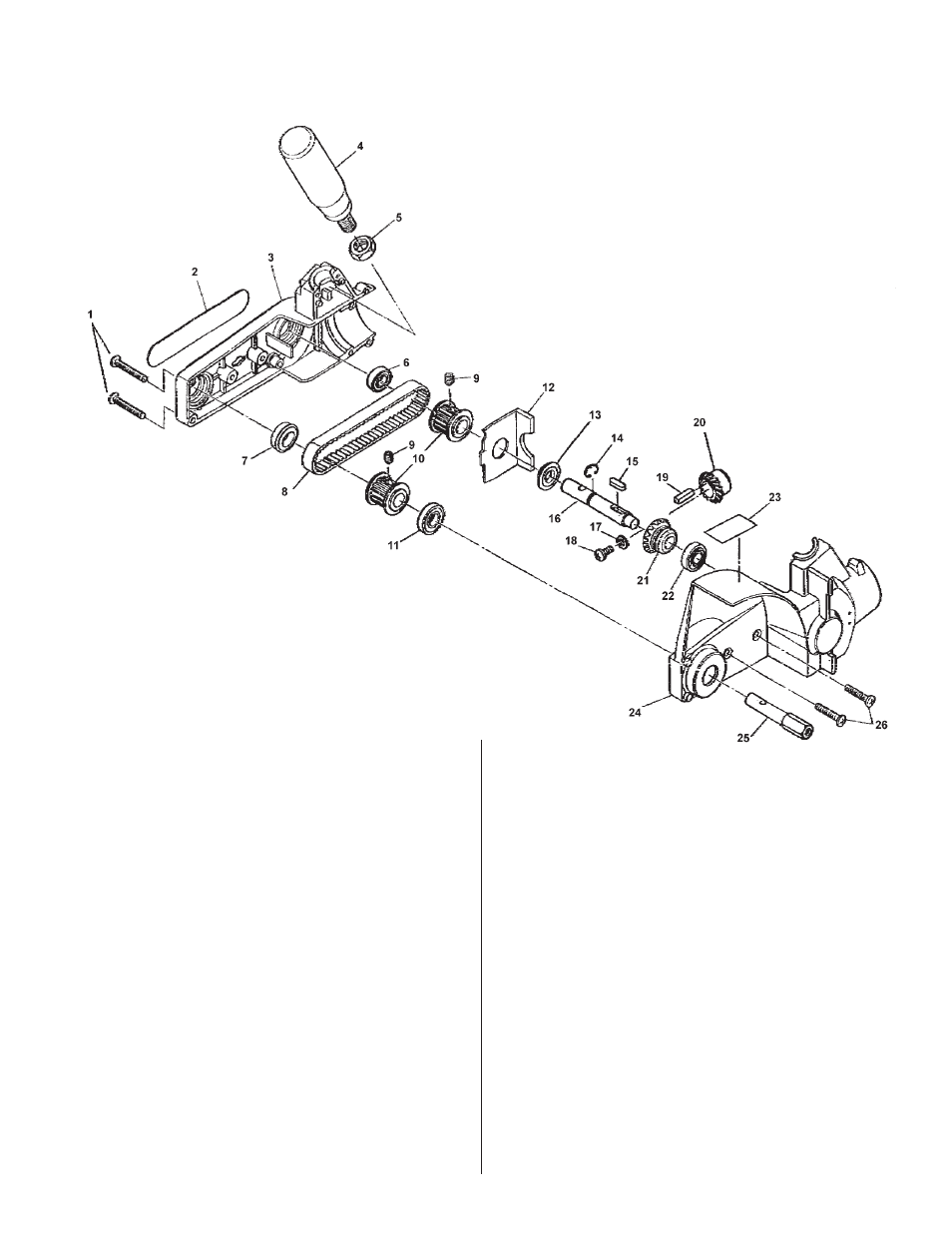

PARTS LIST FOR
ST2L1410 MATERIAL REMOVAL TOOL HEAD ASSEMBLY
