Page 24
24

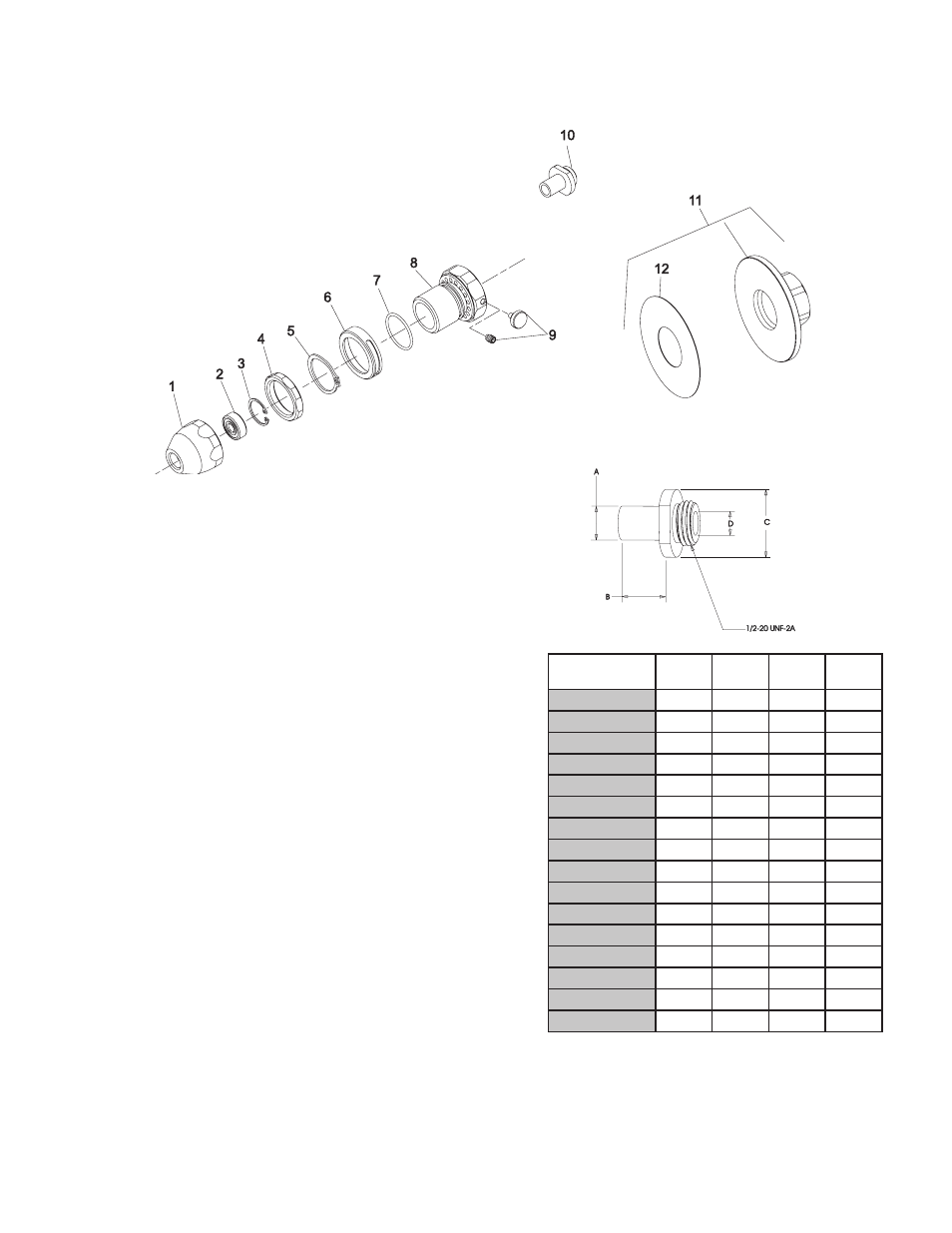

PARTS LIST FOR SRT10S SERIES ROUTERS
SERIAL“A”
*Order Quantity As Required
FURNISH CATALOG, SERIAL, AND MODEL NUMBER
WHEN ORDERING PARTS
1. 68598 Nose
2. 10270 Bearing—Ball
3. 21540 Ring—Retainer
4. 68600 Nut
5. 68603 Ring—Retainer
6. 68597 Collar
7.
14334
Ring —“O”
8. 68599 Body
9. 68602 Screw—Thumb
06458 Screw—Set
10.
68613
Guide—Router Collar (See chart)
11.
68611
Base (Includes Fig. 12)
12. 14108 Cover—Protector
Not Shown:
30209 Wrench—Allen
1995
Ass’y—Router Head
(Includes Figs. 1-9)
1996
Ass‘y—3” Router Head with Base
(Includes Figs. 1-4, 11)
Fig. Part
No. No. Description
(See chart)
Min Bit Length = 1.85”+ B + P
P = Desired bit protrusion
SIOUX PART
NUMBER
A
B
C
D
68613-12
3/8
1/4
3/4
9/32
68613-14
3/8
3/8
3/4
9/32
68613-16
3/8
1/2
3/4
9/32
68613-22
3/8
1/8
1-1/2
9/32
68613-24
3/8
1/4
1-1/2
9/32
68613-26
3/8
3/8
1-1/2
9/32
68613-40
7/16
1/4
3/4
21/64
68613-42
7/16
3/8
3/4
21/64
68613-44
7/16
1/2
1-1/2
21/64
68613-48
7/16
1/4
1-1/2
21/64
68613-50
7/16
3/8
1-1/2
21/64
68613-52
7/16
1/2
1-1/2
21/64
68613-62
1/2
1/4
1-1/2
11/32
68613-64
1/2
3/8
1-1/2
11/32
68613-66
1/2
1/2
1-1/2
11/32
68613-72
1/2
1/2
2-1/2
11/32
