Sioux Tools SRT10S - Manual (Page 23)

23
Fig. Part
No. No. Description
1.
74071 Collet Nut
2. 74072 Collet (1/8”)
74073 Collet (3/16”)
74074 Collet (1/4”)
74075 Collet (3mm)
74076 Collet (6mm)
3. 74070 Collet Body
4. SRT-50 Retainer
5. 04046 Muffler

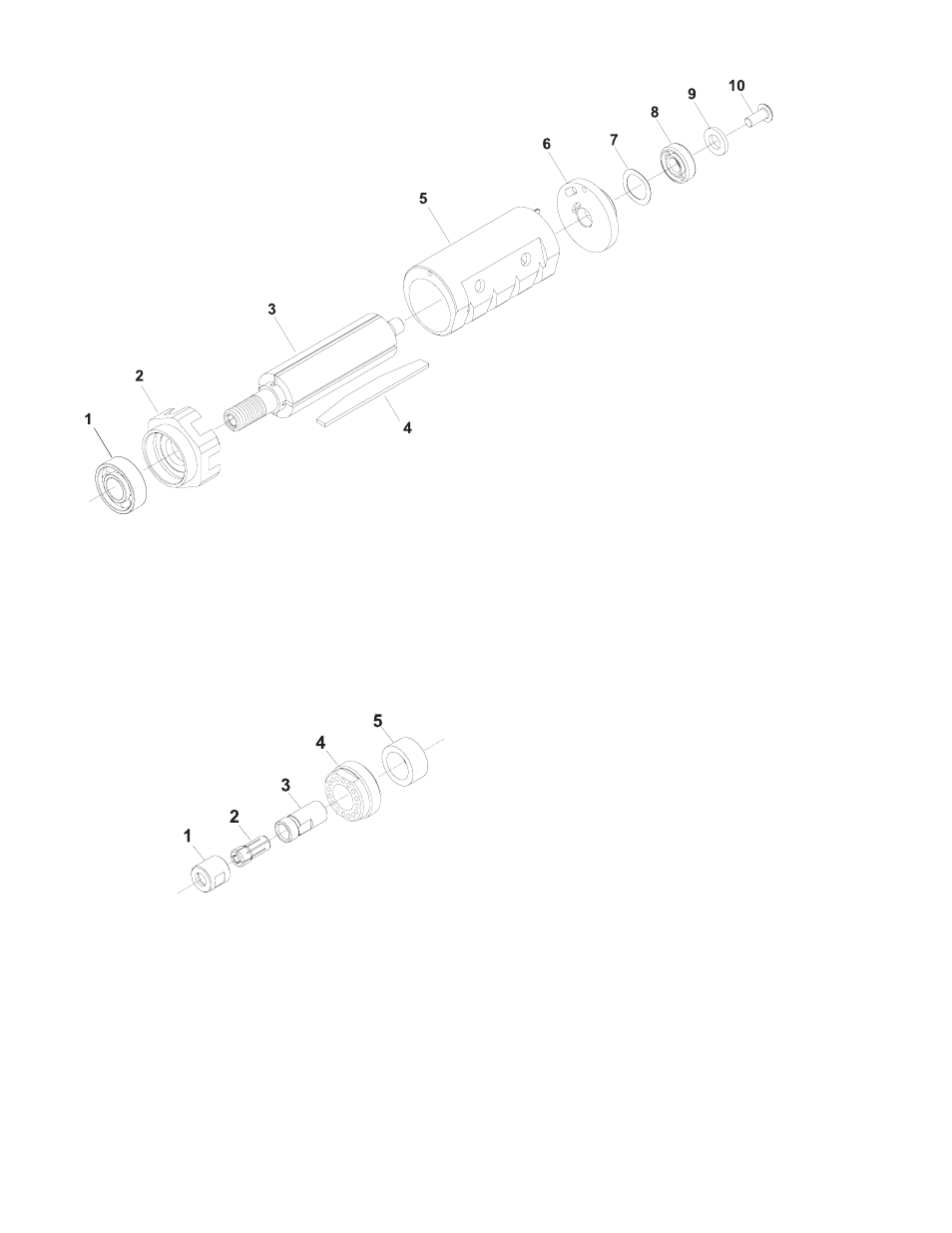

PARTS LIST FOR SRT10S SERIES ROUTERS & LAMINATE TRIMMER
SERIAL“A”
*Order Quantity As Required
FURNISH CATALOG, SERIAL, AND MODEL NUMBER
WHEN ORDERING PARTS
1. 10257 Ball Bearing 3/8 X 7/8 X 9/32
2. SDG-3 Front End Plate
3. 74026 Rotor, 5 Slot
4. SP74048 Vane Set
5. 74030 Cylinder, 25,000 RPM
74031 Cylinder, 18,000 RPM
6. 74023 Rear End Plate
7. 41338 Wave Washer .440 X .618 X .008
8. 10253 Ball Bearing
9. 74054 Washer .251 X .468 X .063
10. 74055 Screw #8-32 X 3/8 But Hd Cap
Not Shown:
SDG-M25 Drop-in Motor, 25,000 RPM
SDG-M18 Drop-in Motor, 18,000 RPM
SDG-TUS Motor Tune-up Kit
Fig. Part
No. No. Description
SRT MOTOR
