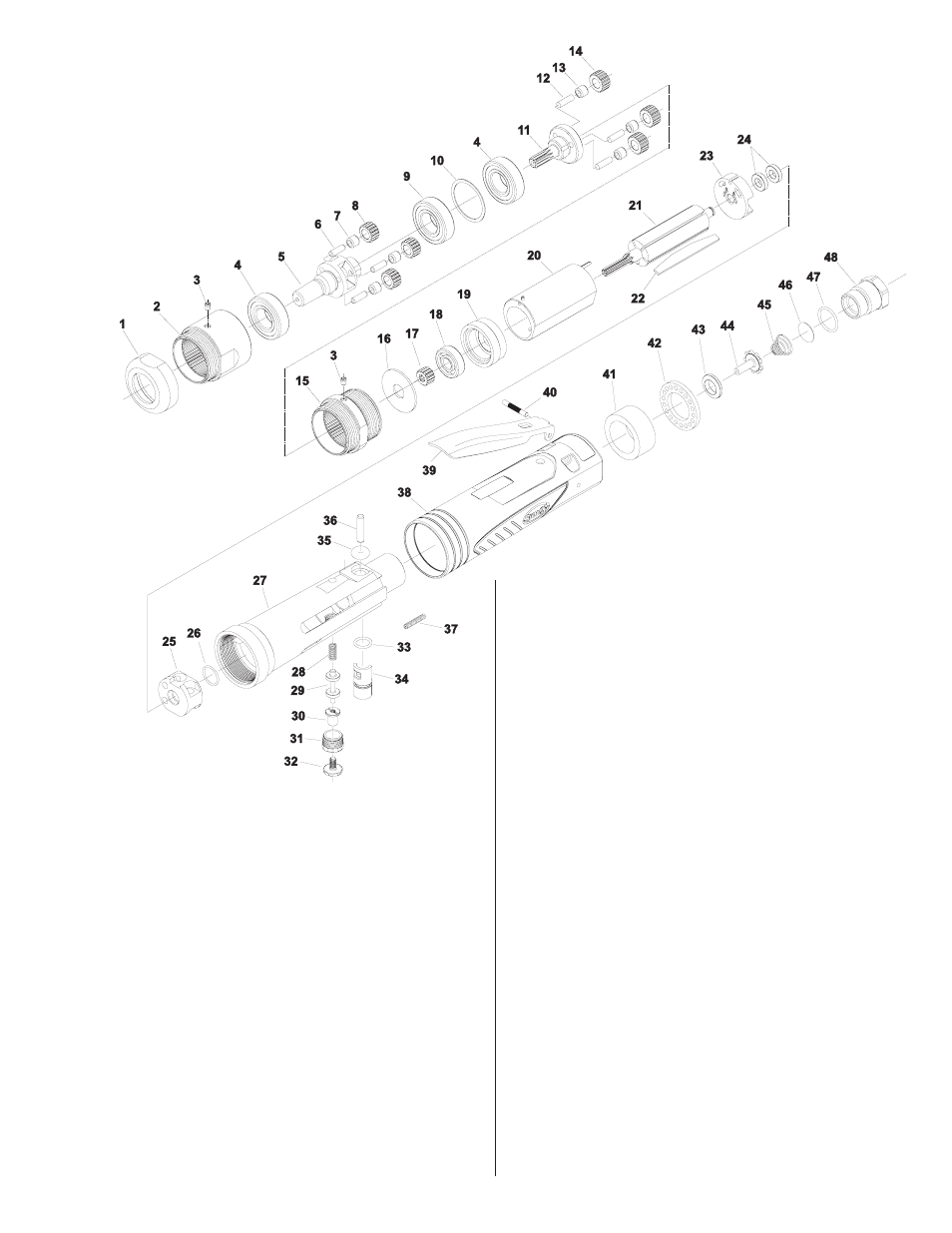

INSTRUCTIONS & PARTS LIST FOR
STP10S SERIES STRAIGHT TAPPERS
SERIAL“A”
Fig. Part
No. No. Description
1.
SDR-43 Gear Case Cap
2.
SDR-42 Double Reduction Gear Case (Includes Figure 3)
3.
30375 Grease Fitting (2)*
4.
10265 Ball Bearing (2)*
5.
SDR-67 B12 Taper Gear Carrier
6.
SDR-24 Pin (3)*(300, 700 & 500 RPM)
7.
10028FC Needle Bearing (3)*
8.
SDR-45 Planetary Gear (3)*(300, 700 & 500 RPM)
9.
ME11A33A Ball Bearing
10.
SDR-27 Spacer
11.
SDR-36 Cantilevered Gear Carrier (700 RPM)
SDR-37 Cantilevered Gear Carrier (500 RPM)
SDR-38 Cantilevered Gear Carrier (300 RPM)
SDR-39 Cantilevered Gear Carrier (1200 RPM)
12.
SDR-24 Pin (3)* (300 & 500 RPM)
30062 Pin (3)*(700 & 1200 RPM)
13.
10028B Needle Bearing (3)*(300 & 500 RPM)
10040 Needle Bearing (3)*(700 & 1200 RPM)
14.
SDR-44 Planetary Gear (3)*(300 RPM)
SDR-45 Planetary Gear (3)*(500 RPM)
SDR-46 Planetary Gear (3)*(700 & 1200 RPM)
15.
SDR-41 First Reduction Gear Case (Includes Figure 3)
16.
SDR-29 Wear Plate
17.
SDR-47 Sun Gear (700 & 1200 RPM)
18.
10220 Ball Bearing
19.
SDR-80 Front End Plate
20.
SP74130 Cylinder, Reversing
21.
SDR-7 Rotor (7 tooth)(300, 700 & 1200 RPM)
SDR-8 Rotor (10 tooth)(500 RPM)
22.
SP74048 Vane Set
23.
SDR-11 Rear End Plate
24.
SDR-26 Ball Bearing (2)*
25.
SDR-82 Rapid Reverse Insert
26.
69007 O-ring
27.
SDR-81 Straight Reversing Housing
28.
SDR-84 Reversing Spring
29.
SDR-83 Reverse Valve Spool
30.
SDR-88 Top Reverse Button
31.
SDR-85 Top Reverse Nut
32.
SDR-86 Top Reverse Cap
33.
74013 Regulator
34.
14290 O-ring
35.
67793 O-ring
36.
74018 Torr Pin, 3/16 X 7/8
37.
06402 Screw, 6-32 X 3/4 Set Soc Hex
38.
74103 Cover
39.
SDR-5 Lever
40.
74020 Knurl Pin
41.
74016 Muffler
42.
74017 Exhaust Deflector
43.
74008 Throttle Valve Seat
44.
74009 Throttle Valve
45.
74010 Taper Spring
46.
74011 Screen
47.
14281B O-ring, 1/16 X 5/8 X 3/4
48.
74012 Inlet Bushing
Not Shown:
77067A Support Handle Assembly
