Sioux Tools SCN CLINCH NUT TOOLS User Manual
Page 24
Form ZCE782
24
Date
2013February5/D
Fig. Part
No. No. Description
Fig. Part
No. No. Description
*Order Quantity As Required
FURNISH CATALOG, SERIAL, AND MODEL NUMBER
WHEN ORDERING PARTS

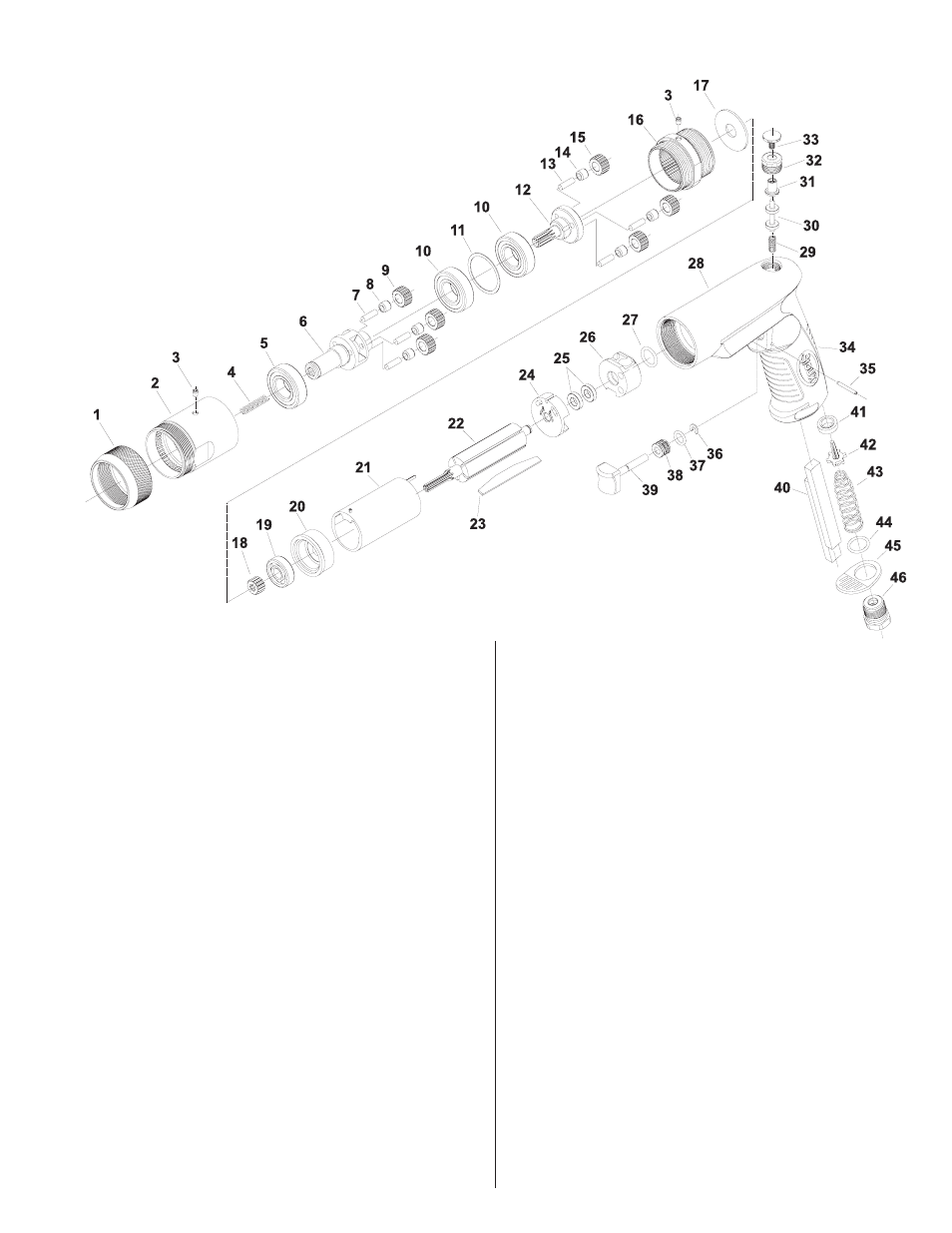

PARTS LIST FOR SCN CLINCH NUT TOOL DOUBLE REDUCTION POWER UNIT
SERIAL “A”
1.
SDR-91 Lock Ring
2.
SDR-94 Gear Case Cap
3.
30375 Grease Fitting (2)*
4.
21411B Spring
5.
10265 Ball Bearing
6.
SSD-61 Carrier (300, 500, 700 RPM)
SSD-62 Carrier (1200 RPM)
7.
SDR-24 Pin (300, 500, 700 RPM)(3)*
30062 Pin (1200 RPM)(3)*
8.
10028B Needle Bearing (300, 500, 700 RPM)(3)*
10040 Needle Bearing (1200 RPM)(3)*
9.
SDR-45 Planetary Gear (300, 500, 700 RPM)(3)*
SDR-46 Planetary Gear (1200 RPM)(3)*
10. ME11A33A Ball Bearing (2)*
11.
SDR-27 Spacer
12.
SDR-36 Cantilevered Gear Carrier (700 RPM)
SDR-37 Cantilevered Gear Carrier (500 RPM)
SDR-38 Cantilevered Gear Carrier (300 RPM)
SDR-39 Cantilevered Gear Carrier (1200 RPM)
13.
SDR-24 Pin (300, 500 RPM)(3)*
30062 Pin (700, 1200 RPM)(3)*
14.
10028B Needle Bearing (300, 500 RPM)(3)*
10040 Needle Bearing (700, 1200 RPM)(3)*
15.
SDR-44 Planetary Gear (300 RPM)(3)*
SDR-45 Planetary Gear (500 RPM)(3)*
SDR-46 Planetary Gear (700, 1200 RPM)(3)*
16.
SDR-41 First Reduction Gear Case (Includes Figure 2)
17.
SDR-29 Wear Plate
18.
SDR-47 Slip Over Pinion (700, 1200 RPM Only)
19.
10220 Ball Bearing
20.
SDR-80 Front End Plate
21.
SP74130 Cylinder, Reversing
22.
SDR-7 Rotor (300, 700, 1200 RPM)
SDR-8 Rotor(500 RPM)
23.
SP74048 Vane Set
24.
SDR-11 Rear End Plate
25.
SDR-26 Ball Bearing (2)*
26.
SDR-82 Rapid Reverse Insert
27.
69007 O-Ring Parker 3-906
28.
SPSDR-2B Pistol Rapid Reversing Housing
29.
SDR-84 Reversing Spring
30.
SDR-83 Reverse Valve Spool
31.
SDR-88 Top Reverse Button
32.
SDR-85 Top Reverse Nut
33.
SDR-86 Top Reverse Cap
34.
SPSDR-28 Grip (Includes Grip Tape)
35.
30610 Roll Pin 5/64 x 3/4 in
36.
21542 Retaining Ring
37.
14311 O-Ring
38.
SDR-23 Trigger Sleeve
39.
SDR-200 Trigger
40.
04046 Silencer Pad
41.
IM3100-22 Tipper Valve Seat
42.
SDR-20 Tipper
43.
SDR-13 Trigger Spring
44.
69007 O-Ring
45.
SDR-35 Exhaust Cap
46.
66244R Inlet Adapte
