Form ZCE782 23 Date 2013February5/D
Fig. Part
No. No. Description Fig. Part
No. No. Description
*Order Quantity As Required
FURNISH CATALOG, SERIAL, AND MODEL NUMBER
WHEN ORDERING PARTS

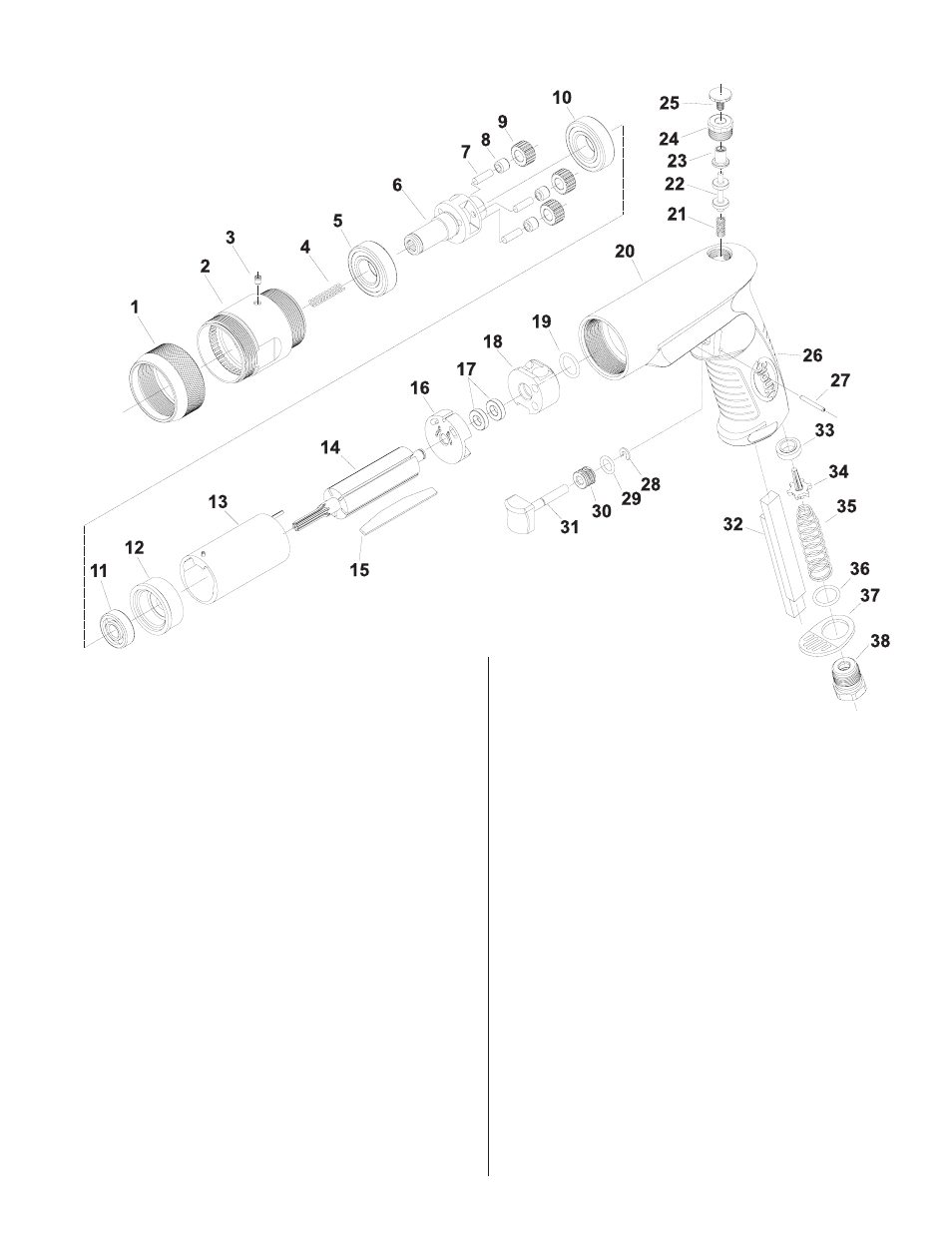

PARTS LIST FOR SCN CLINCH NUT TOOL SINGLE REDUCTION POWER UNIT
SERIAL “A”
1. SDR-91 Lock Ring
2. SDR-93 Gear Case
3. 30375 Grease Fitting
4. 21411B Spring
5. 10265 Ball Bearing
6. SSD-60 Carrier (2000 RPM)
SSD-61 Carrier (2500 RPM)
7. SDR-24 Pin (3)*
8. 10028B Needle Bearing (3)*
9. SDR-44 Planetary Gear (2000 RPM)(3)*
SDR-45 Planetary Gear (2500 RPM)(3)*
10. ME11A33A Ball Bearing
11. 10220 Ball Bearing
12. SDR-80 Front End Plate
13. SP74130 Cylinder, Reversing
14. SDR-7 Rotor (2000 RPM)
SDR-8 Rotor (2500 RPM)
15. SP74048 Vane Set
16. SDR-11 Rear End Plate
17. SDR-26 Ball Bearing (2)*
18. SDR-82 Rapid Reverse Insert
19. 69007 O-Ring Parker 3-906
20. SPSDR-2B Pistol Rapid Reversing Housing
21. SDR-84 Reversing Spring
22. SDR-83 Reverse Valve Spool
23. SDR-88 Top Reverse Button
24. SDR-85 Top Reverse Nut
25. SDR-86 Top Reverse Cap
26. SPSDR-28 Grip (Includes Grip Tape)
27. 30610 Roll Pin 5/64 x 3/4 in
28. 21542 Retaining Ring
29. 14311 O-Ring
30. SDR-23 Trigger Sleeve
31. SDR-200 Trigger
32. 04046 Silencer Pad
33. IM3100-22 Tipper Valve Seat
34. SDR-20 Tipper
35. SDR-13 Trigger Spring
36. 69007 O-Ring
37. SDR-35 Exhaust Cap
38. 66244R Inlet Adapter
