Sioux Tools SSD10S - Manual (Page 22)

Form ZCE798 22 Date 2013February1/D
23. SSD-22 Cantilever Hex Carrier (2000 RPM)
SSD-21 Cantilever Hex Carrier (2500 RPM)
24. SDR-24 Pin (3)*
25. 10028B Needle Bearing (3)*
26. SDR-44 Planetary Gear (3)* (2000 RPM)
SDR-45 Planetary Gear (3)*(2500 RPM)
27. SSD-40 Single Reduction Gear Case
(Includes Figure 27)
28. 30375 Grease Fitting
29. 10220 Ball Bearing
30. SDR-80 Front End Plate
31. SP74130 Cylinder, Reversing
32. SDR-7 Rotor (7 tooth)(2000 & 4000 RPM)
SDR-8 Rotor (10 tooth)(2500 RPM)
33. SP74048 Vane Set
34. SDR-11 Rear End Plate
35. SDR-26 Ball Bearing (2)*
36. SDR-82 Rapid Reverse Insert
37. 69007 O-ring
38. SDR-81 Straight Reversing Housing
39. SDR-84 Reversing Spring
40. SDR-83 Reverse Valve Spool
41. SDR-88 Top Reverse Button

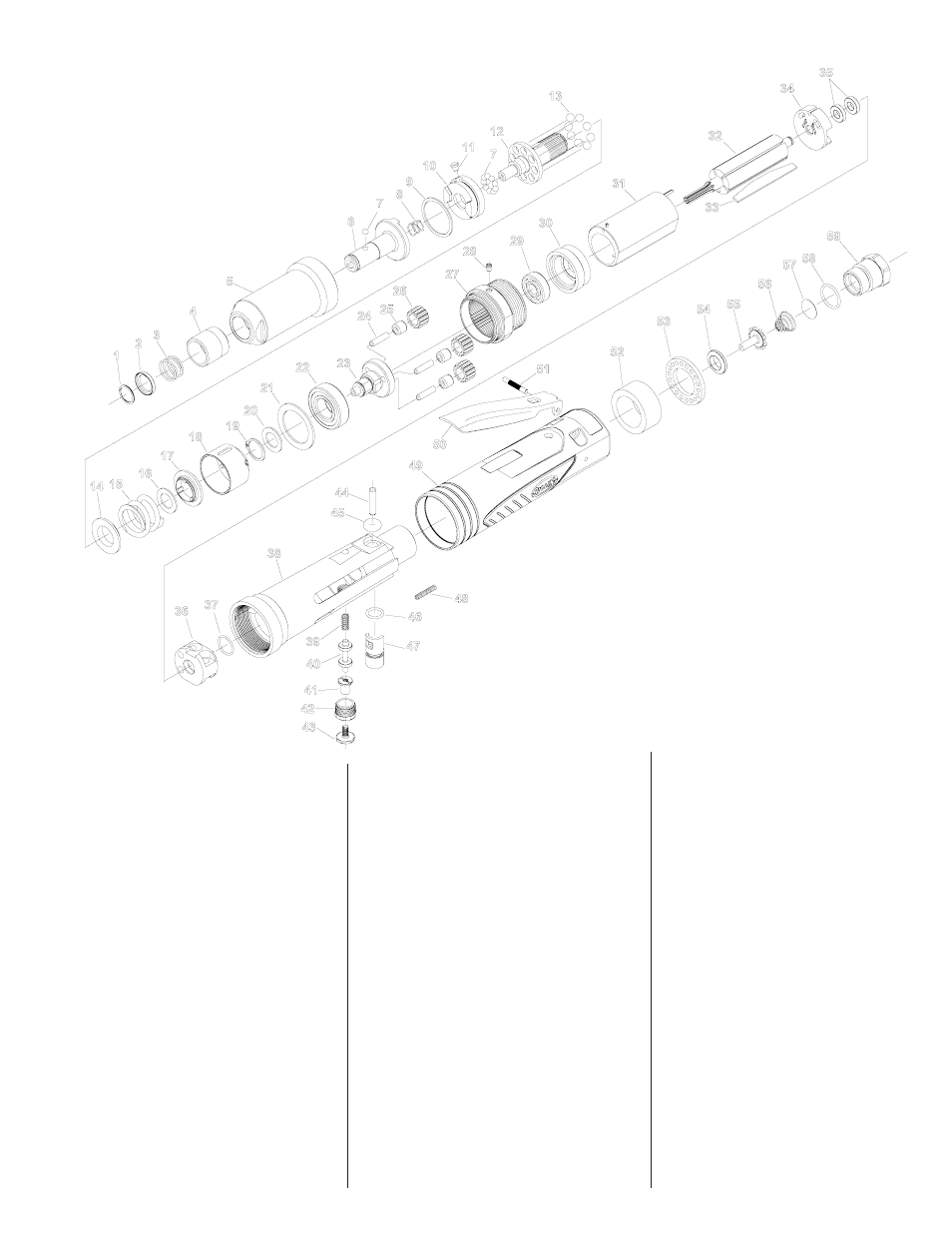

SSD10S STRAIGHT SERIES
SINGLE REDUCTION ADJUSTABLE CLUTCH SCREWDRIVERS
SERIAL “A”
Fig. Part
No. No. Description
Fig. Part
No. No. Description
*Order Quantity As Required
FURNISH CATALOG, SERIAL, AND
MODEL NUMBER
WHEN ORDERING PARTS
Fig. Part
No. No. Description
1. 74830 Spiral Retaining Ring
2. 44660 Ring Guide
3. 21406 Spring
4. 54468B Ball Retainer
5. SSD-25 Clutch Case
6. 22677 Bit Holder
7. 10902 Ball (10)*
8. 41250 Spring
9. 21827 Retaining Ring
10. 54071A Clutch Jaw
11. 54074 Ball Retainer
12. SSD-15 Clutch Spindle
13. 10291 Steel Ball (8)*
14. 54072 Spring Guide
15. 41249B Clutch Spring (High Torque)
41284 Clutch Spring (Low Torque)
16. 35273 Washer
17. 54073 Index Washer
18. 53095 Adjusting Nut Assembly
19. 21774 Retaining Ring
20. SSD-12 Adjustable Clutch Spacer
21. SSD-11 Spacer
22. 10265 Ball Bearing
42. SDR-85 Top Reverse Nut
43. SDR-86 Top Reverse Cap
44. 74018 Torr Pin, 3/16 X 7/8
45. 67793 O-ring
46. 14290 O-ring
47. 74013 Regulator
48. 06402 Screw, 6-32 X 3/4 Set Soc Hex
49. 74103 Cover
50. SDR-5 Lever
51. 74020 Knurl Pin
52. 74016 Muffler
53. 74017 Exhaust Deflector
54. 74008 Throttle Valve Seat
55. 74009 Throttle Valve
56. 74010 Taper Spring
57. 74011 Screen
58. 14281B O-ring, 1/16 X 5/8 X 3/4
59. 74012 Inlet Bushing
