ADJUSTMENT OF ADJUSTABLE CLUTCH
ABOVE 25 INCH POUNDS
To adjust clutch place adjusting wrench (No. 53099) with pin through opening in the clutch
case. Place 1/4” (6.4 mm) HEX wrench in the Bit Holder, press in and turn until adjusting
wrench falls into the slot of the Nut of the Clutch. Keep Bit Holder depressed in with HEX
Wrench and turn clockwise to increase and counterclockwise to decrease Torque.
BELOW 25 INCH POUNDS CHANGE TO GREEN SPRING NO. 41284
Again place adjusting wrench in position as for the higher Torque, but place a screw driver
blade through the bit holder opening until in contact with the slot at the far end. Rotate screw
driver until adjusting wrench falls into place, again rotate screw driver clockwise to increase
and counterclockwise to decrease Torque.
REVERSE OPERATION
The spindle rotation is controlled by the slide on the top, rear of the tool.
Move the slide to the right for right hand rotation and to the left for left hand rotation. To ensure maximum performance, make sure the slide is in the full
left or right position.
AIR SUPPLY
The efficiency and life of this tool depend on the proper supply of clean, dry air at a maximum of 90 PSI. The use of an air line filter, pressure regulator,
and lubricator is recommended.
Before connecting to tools, blow out the air line to remove water and dirt that may have accumulated.
HOSE AND HOSE CONNECTIONS
The air supply hose recommended is 3/8” (10mm) I.D. If an extension hose is necessary, use 1/2” (13mm) ID hose with couplings not less than 3/8”
(10mm) I.D.
LUBRICATION
For maximum performance and tool life, an air line lubricator, set to deliver 2 drops per minute, is recommended. SIOUX No. 288 Air Motor Oil is
recommended.
If an airline lubrication is not used, it is recommended that the tool be oiled daily before use to improve performance. Add 2-4 drops of air motor oil and
run the tool for 10-20 seconds to distribute oil through the tool.
Lubricate the gears through the grease fitting with Sioux 1232A grease after 100 hours of operation.
MAINTENANCE
Water, dust and other airline contaminants can cause rust and vane sticking. For long periods between tool use, flush the tool with a few drops of oil
and run for 10 seconds. This will help remove contaminants and reduce the formation of rust.

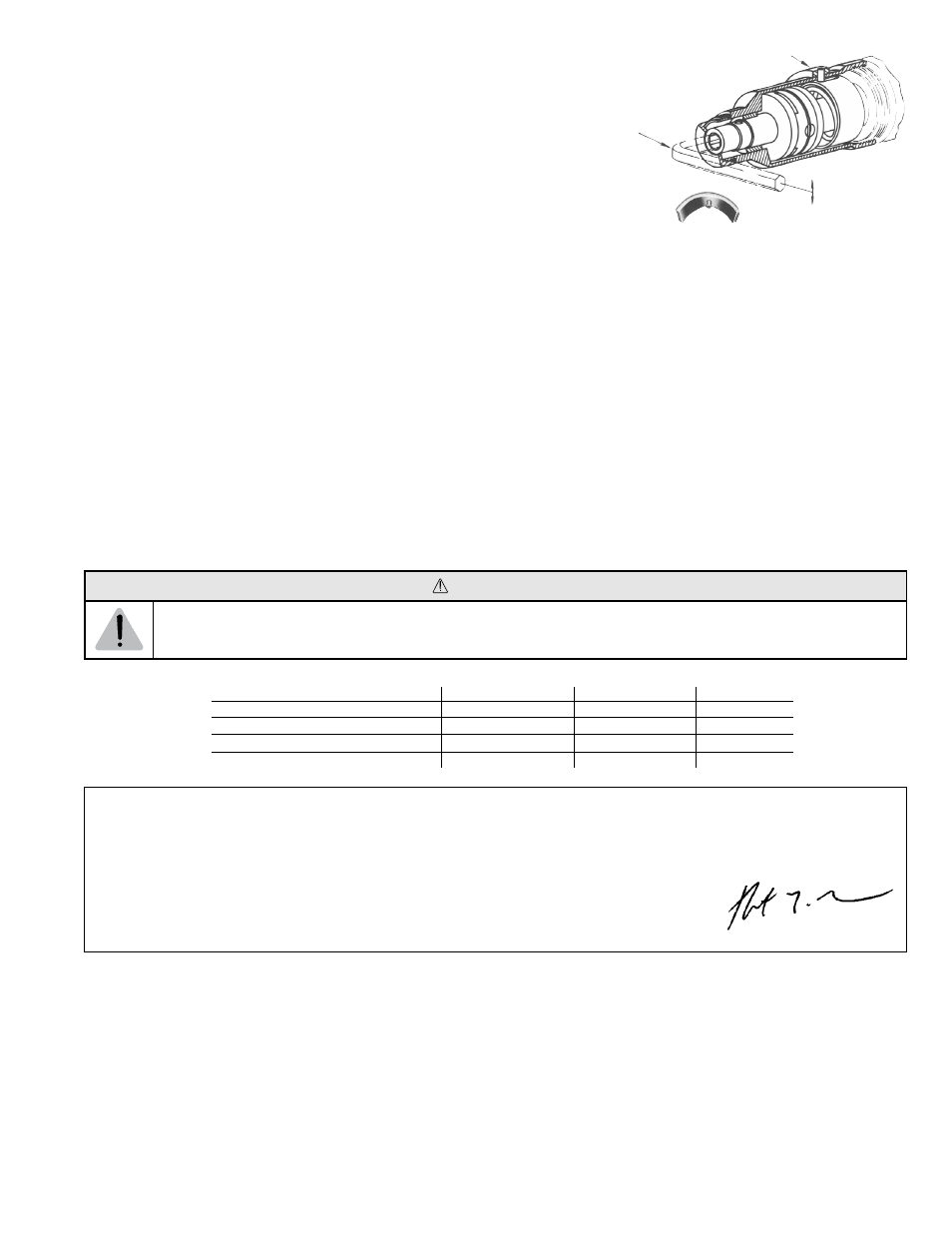

ADJUSTING WRENCH
DEPRESS SPINDLE TO
ENGAGE CLUTCH JAWS
DECREASE
INCREASE
53099
Catalog No. *Sound Pressure dBA *Sound Power dBA *Vibration m/s 2
SSD10P - Positive & Adjustable Clutch 80.0 91.6 3.8
SSD6P - Stall Drive 80.0 91.6 Less than 2.5
SSD10P - Stall Drive 80.0 91.6 Less than 2.5
*per PN8NTC1 *per PN8NTC1 *per ISO 8662
SOUND AND VIBRATION READINGS
DECLARATION OF CONFORMITY
We, Sioux Tools Inc., 250 Snap-on Drive, P.O. Box 1596, Murphy, NC, 28906, USA, declare under our sole responsibility that the products
SSD6P & SSD10P SERIES
to which this declaration relates are in conformity with the following standard or standards or other normative document or documents:
EN 792, ISO 12100-1, ISO 12100-2, ISO 8662, Pneurop PN8NTC1
following the provisions of
98/37/EC.
May 1, 2009
Murphy, North Carolina, USA
Date and place of issues
Robert Hartman
Vice President and General Manager-Power Tools
Sioux Tools Inc
Name and position of issuer
Signature of issuer
WARNING
Disconnect tool from air supply before performing any adjustment, maintenance, or repair.
