Sioux Tools SSD10P - Manual (Page 27)

Form ZCE778 27 Date 2013February4/J
1
2
3
4
5
6
7
25
28
42
35
36
37
38
39
40
41
43
44 45
46
47
48
49
7
18
16
20
21
17
19
11
10
8
9
15
14
12
13
14
29
30 31
26
23
24
27
22
32
33
34
51
50

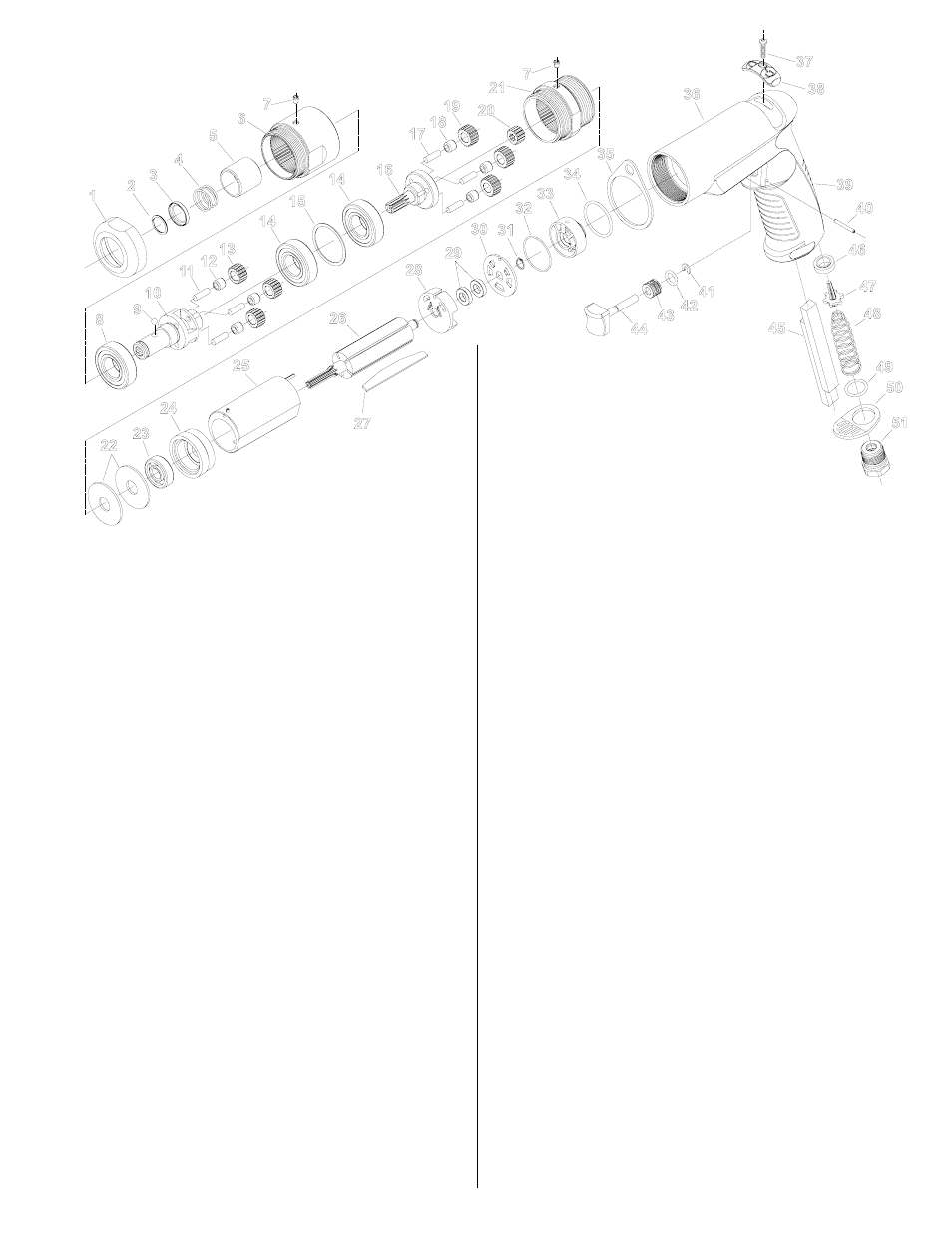

PARTS LIST FOR SSD6P & SSD10P SERIES SCREWDRIVERS
DOUBLE REDUCTION STALL DRIVE
SERIAL “A”
Fig. Part
No. No. Description
*Order Quantity As Required
FURNISH CATALOG, SERIAL,
AND MODEL NUMBER WHEN
ORDERING PARTS
Fig. Part
No. No. Description
1. SDR-43 Gear Case Cap
2. 74830 Spiral Retaining Ring
3. 44660 Ring Guide
4. 21406 Spring
5. 54468B Ball Retainer
6. SDR-42 Second Gear Case (Includes Figure 7)
7. 30375 Grease Fitting (2)*
8. 10265 Ball Bearing
9. 10902 Ball
10. SSD-61 Quick Change Carrier (300, 500, & 700 RPM)
SSD-62 Quick Change Carrier (1200 RPM)
11. SDR-24 Pin (3)* (300, 500, & 700 RPM)
30062 Pin (3)*(1200 RPM)
12. 10028FC Needle Bearing (3)*(300, 500, & 700 RPM)
10040 Needle Bearing (3)* (1200 RPM)
13. SDR-45 Planetary Gear (3)*(300, 500, & 700 RPM)
SDR-46 Planetary Gear (3)*(1200 RPM)
14. ME11A33A Ball Bearing (2)*
15. SDR-27 Spacer
16. SDR-36 Cantilever Gear Carrier (700 RPM)
SDR-37 Cantilever Gear Carrier (500 RPM)
SDR-38 Cantilever Gear Carrier (300 RPM)
SDR-39 Cantilever Gear Carrier (1200 RPM)
17. SDR-24 Pin (3)*(300, 500 RPM)
30062 Pin (3)*(700, 1200 RPM)
18. 10028B Needle Bearing (3)*(300, 500 RPM)
10040 Needle Bearing (3)*(700, 1200 RPM)
19. SDR-44 Planetary Gear (3)*(300 RPM)
SDR-45 Planetary Gear (3)*(500 RPM)
SDR-46 Planetary Gear (3)*(700, 1200 RPM)
20. SDR-47 Sun Gear (700, 1200 RPM)
21. SDR-41 First Gear Case (Includes Figure 7)
22. SDR-29 Wear Plate (2)*
23. 10220 Ball Bearing
24. SDR-80 Front End Plate
25. 74130 Cylinder (SSD10P Models)
74134 Cylinder (SSD6P Models)
26. SDR-7 Rotor (300, 700, &
1200 RPM)(SSD10P Models)
SDR-77 Rotor (300, 700, &
1200 RPM)(SSD6P Models)
SDR-8 Rotor (SSD10P5S)
SDR-87 Rotor (SSD6P5S)
27. SP74048 Vane Set (SSD10P Models)
SP74049 Vane Set (SSD6P Models)
28. SDR-11 Rear End Plate
29. SDR-26 Ball Bearing (2)*
30. SDR-10 Reversing Plate
31. 21491 Retaining Ring
32. 69017 O-Ring
33. SPSDR-9 Reversing Manifold (Includes Figures 32, 34)
34. 04215 O-Ring
35 74106 Bail
36. SDR-2 Pistol Reversing Housing (SSD10P Models)
SDR-33 Pistol Reversing Housing (SSD6P Models)
37. SDR-12 Reversing Mechanism Screw
38. SDR-16 Reversing Shuttle
39. SPSDR-28 Grip (Includes Grip Tape)
40. 30610 Roll Pin 5/64 x 3/4 in
41. 21542 Retaining Ring
42. 14311 O-Ring
43. SDR-23 Trigger Sleeve
44. SDR-200 Trigger
45. 04046 Silencer Pad (2)*
46. IM3100-22 Tipper Valve Seat
47. SDR-20 Tipper
48. SDR-13 Trigger Spring
49. 69007 O-Ring
50. SDR-35 Exhaust Cap
51. 66244R Inlet Adapter
Not Shown:
SPSDR-7AR Motor Assembly (300, 700, & 1200 RPM)
(SSD10P Models)(Includes Figures 23-31)
SPSDR-77AR Motor Assembly (300, 700, & 1200 RPM)
(SSD6P Models)(Includes Figures 23-31)
SPSDR-8AR Motor Assembly (SSD10P5S)
(Includes Figures 23-31)
SPSDR-87AR Motor Assembly (SSD6P5S)
(Includes Figures 23-31)
SPSDR-2A Reversing Housing Assembly (SSD10P Models)
(Includes Figures 32-34, 36-51)
SPSDR-33A Reversing Housing Assembly (SSD6P Models)
(Includes Figures 32-34, 36-51)
77067A Support Handle Assembly
