25. SDR-44 Planetary Gear (3)*
(2000 RPM)
SDR-45 Planetary Gear (3)*
(2500 RPM)
26. SSD-40 Single Reduction Gear Case
(Includes Figure 27)
27. 30375 Grease Fitting
28. SDR-29 Wear Plate (2)*
29. 10220 Ball Bearing
30. SDR-80 Front End Plate
31. 74130 Cylinder (SSD10P Models)
74134 Cylinder (SSD6P Models)
32. SDR-7 Rotor (SSD10P20AC)
SDR-77 Rotor (SSD6P20AC)
SDR-8 Rotor (SSD10P25AC)
SDR-87 Rotor (SSD6P25AC)
33. SP74048 Vane Set (SSD10P Models)
SP74049 Vane Set (SSD6P Models)
34. SDR-11 Rear End Plate
35. SDR-26 Ball Bearing (2)*
36. SDR-10 Reversing Plate
37. 21491 Retaining Ring
38. 69017 O-Ring
39. SPSDR-9 Reversing Manifold
(Includes Figures 38, 40)
40. 04215 O-Ring
41. 74106 Bail
42. SDR-2 Pistol Reversing Housing
(SSD10P Models)
SDR-33 Pistol Reversing Housing
(SSD6P Models)
43. SDR-16 Reversing Shuttle

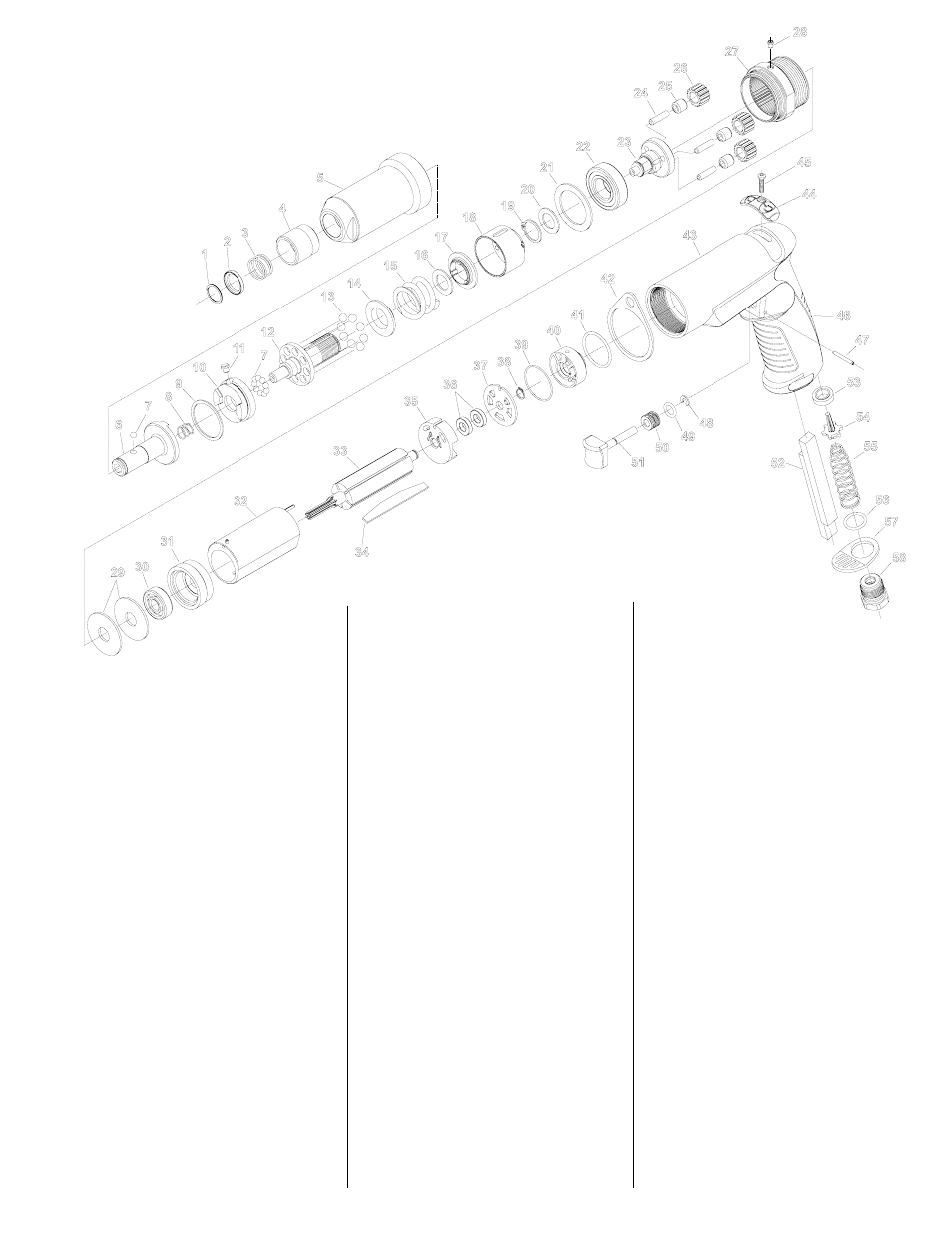

PARTS LIST FOR SSD6P & SSD10P SERIES SCREWDRIVERS
SINGLE REDUCTION ADJUSTABLE CLUTCH
SERIAL “A”
Fig. Part
No. No. Description
Fig. Part
No. No. Description
*Order Quantity As Required
FURNISH CATALOG, SERIAL, AND MODEL NUMBER
WHEN ORDERING PARTS
Fig. Part
No. No. Description
1. 74830 Spiral Retaining Ring
2. 44660 Ring Guide
3. 21406 Spring
4. 54468B Ball Retainer
5. SSD-25 Clutch Case
6. 22677 Bit Holder
7. 10902 Ball (10)*
8. 41250 Spring
9. 21827 Retaining Ring
10. 54071A Clutch Jaw
11. 54074 Ball Retainer
12. SSD-15 Clutch Spindle
13. 10291 Steel Ball (8)*
14. 54072 Spring Guide
15. 41249B Clutch Spring (High Torque)
41284 Clutch Spring (Low Torque)
16. 54073 Index Washer
17. 53095 Adjusting Nut Assembly
18. 21774 Retaining Ring
19. SSD-12 Adjustable Clutch Spacer
20. SSD-11 Spacer
21. 10265 Ball Bearing
22. SSD-22 Cantilever Hex Carrier
(2000 RPM)
SSD-21 Cantilever Hex Carrier
(2500 RPM)
23. SDR-24 Pin (3)*
24. 10028B Needle Bearing (3)*
44. SDR-12 Reversing Mechanism Screw
45. SPSDR-28 Grip (Includes Grip Tape)
46. 30610 Roll Pin 5/64 x 3/4 in
47. 21542 Retaining Ring
48. 14311 O-Ring
49. SDR-23 Trigger Sleeve
50. SDR-200 Trigger
51. 04046 Silencer Pad (2)*
52. IM3100-22 Tipper Valve Seat
53. SDR-20 Tipper
54. SDR-13 Trigger Spring
55. 69007 O-Ring
56. SDR-35 Exhaust Cap
57. 66244R Inlet Adapter
Not Shown:
SPSDR-7AR Motor Assembly (SSDP20AC)
(Includes Figures 29-37)
SPSDR-77AR Motor Assembly (SSD6P20AC)
(Includes Figures 29-37)
SPSDR-8AR Motor Assembly (SSD-
10P25AC)
(Includes Figures 29-37)
SPSDR-87AR Motor Assembly ((SSD6P25AC)
(Includes Figures 29-37)
SPSDR-2A Reversing Housing
Assembly (SSD10P Models)
(Includes Figures 38-40, 42-57)
SPSDR-33A Reversing Housing Assembly
(SSD6P Models)
(Includes Figures 38-40, 42-57)
