Sioux Tools SSD10P - Manual (Page 28)

Form ZCE778A 28 Date 2013November5/B
31
35 36
33
32
34
27
25
26
28
29
30
23
24
38
37
1
4
2
3
12
13
10
11
7
8
5
9
6
22
14
20
21
18
15
16
17
19
39
40
41
42

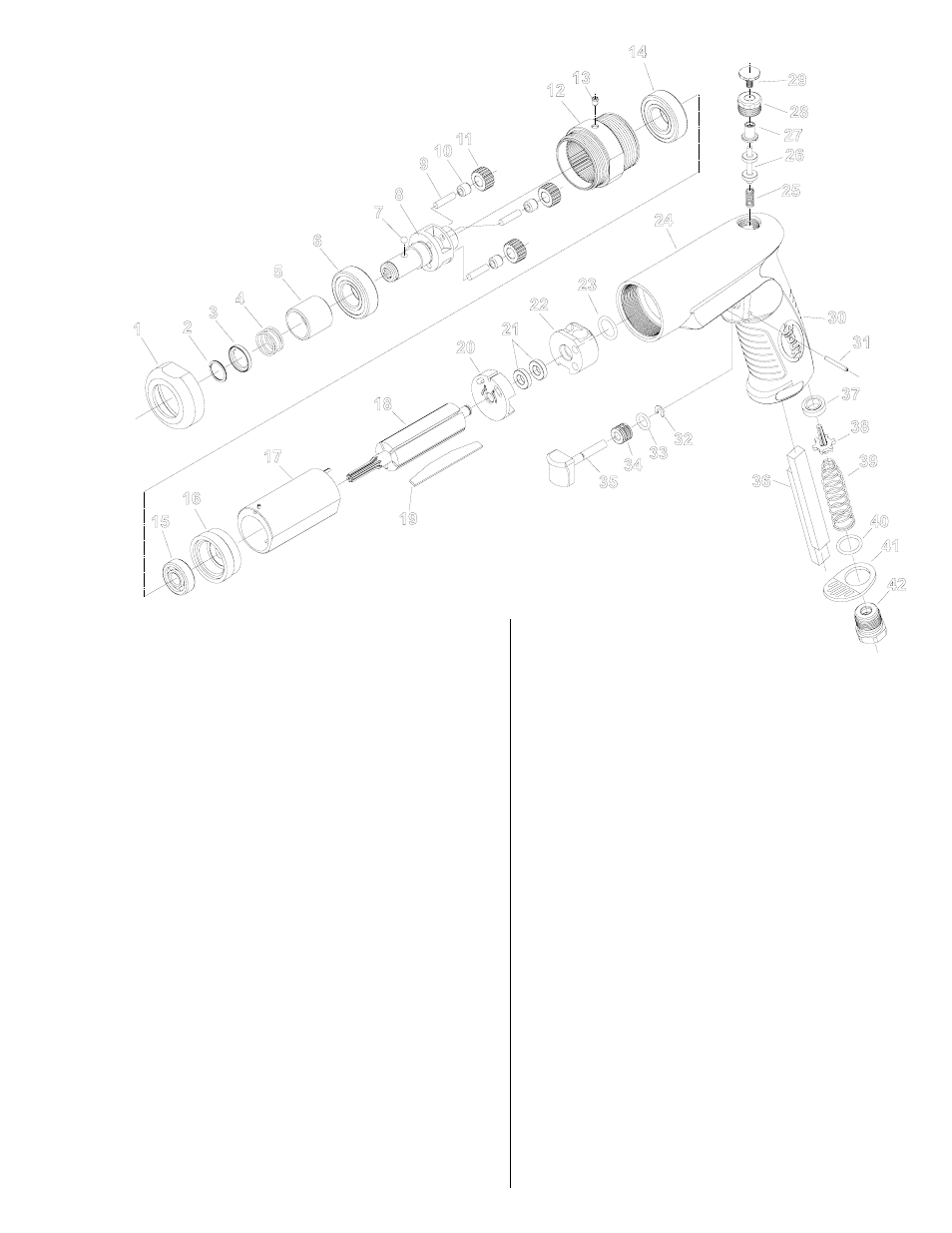

PARTS LIST FOR SSD10P
RAPID REVERSING SERIES SCREWDRIVERS
SINGLE REDUCTION STALL DRIVE
SERIAL “B”
Fig. Part
No. No. Description Fig. Part
No. No. Description
1. SDR-43 Gear Case Cap
2. 74830 Spiral Retaining Ring
3. 44660 Ring Guide
4. 21406 Spring
5. 54468B Ball Retainer
6. 10265 Ball Bearing
7. 10902 Ball
8. SSD-60 Carrier with Quick Change (2000 RPM)
9. SDR-24 Pin (3)*
10. 10028B Needle Bearing (3)*
11. SDR-44 Planetary Gear (3)*(2000 RPM)
12. SDR-40 Single Reduction Gear Case (Includes Figure 13)
13. 30375 Grease Fitting
14. ME11A33A Ball Bearing
15. 10220 Ball Bearing
16. SDR-80 Front End Plate
17. 74130 Cylinder(SSD10P Models)
18. SDR-7 Rotor (SSD10P20S)
19. SP74048 Vane Set (SSD10P Models)
20. SDR-11 Rear End Plate
21. SDR-26 Ball Bearing (2)*
22. SDR-82 Rapid Reverse Insert
23. 69007 O-Ring Parker 3-906
24. SDR-2B Pistol Rapid Reversing Housing
25. SDR-84 Reversing Spring
26. SDR-83 Reverse Valve Spool
27. SDR-88 Top Reverse Button
28. SDR-85 Top Reverse Nut
29. SDR-86 Top Reverse Cap
30. SPSDR-28 Grip (Includes Grip Tape)
31. 30610 Roll Pin 5/64 x 3/4 in
32. 21542 Retaining Ring
33. 14311 O-Ring
34. SDR-23 Trigger Sleeve
35. SDR-200 Trigger
36. 04046 Silencer Pad
37. IM3100-22 Tipper Valve Seat
38. SDR-20 Tipper
39. SDR-13 Trigger Spring
40. 69007 O-Ring
41. SDR-35 Exhaust Cap
42. 66244R Inlet Adapter
Not Shown:
SPSDR-7ARR Motor Assembly
(SSD10P20S)(Includes Figures 15 thru 21)
SPSDR-2BA Rapid Reversing Housing Assembly
(SSD10P Models)(Includes Figures 22 thru 42)
*Order Quantity As Required
FURNISH CATALOG, SERIAL, AND
MODEL NUMBER
WHEN ORDERING PARTS
