Sioux Tools SSD10P - Manual (Page 25)

Form ZCE778A 25 Date 2013November5/B
20
19
21
24
26
22
23
25
27
17
18
16
44
41
42
43
50
51
52
53 54
55
47
48
49
45
46
13
14
12
15
1
5
4
2
3
7
8
9
10
11
6
7
34
35
32
33
29
30
31
28
36
37 38
39
40
57
56
58
59
60
25. 10028B Needle Bearing (3)*
26. SDR-44 Planetary Gear (3)*
(2000 RPM)
SDR-45 Planetary Gear (3)*
(2500 RPM)
27. SSD-40 Single Reduction Gear
Case (Includes Figure 28)
28. 30375 Grease Fitting
29. SDR-29 Wear Plate (2)*
30. 10220 Ball Bearing
31. SDR-80 Front End Plate
32. 74130 Cylinder (SSD10P Models)
74134 Cylinder (SSD6P Models)
33. SDR-7 Rotor (SSD10P20AC)
SDR-77 Rotor (SSD6P20AC)
SDR-8 Rotor (SSD10P25AC)
SDR-87 Rotor (SSD6P25AC)
34. SP74048 Vane Set (SSD10P Models)
SP74049 Vane Set (SSD6P Models)
35. SDR-11 Rear End Plate
36. SDR-26 Ball Bearing (2)*
37. SDR-10 Reversing Plate
38. 21491 Retaining Ring
39. 69017 O-Ring
40. SPSDR-9 Reversing Manifold
(Includes Figures 39 thru
43)
41. ME1A189 Spring (2)*
42. ME9A14 Steel Ball (2)*
43. 04215 O-Ring
44. 74106 Bail
45. SDR-2 Pistol Reversing Housing
(SSD10P Models)
SDR-33 Pistol Reversing Housing
(SSD6P Models)

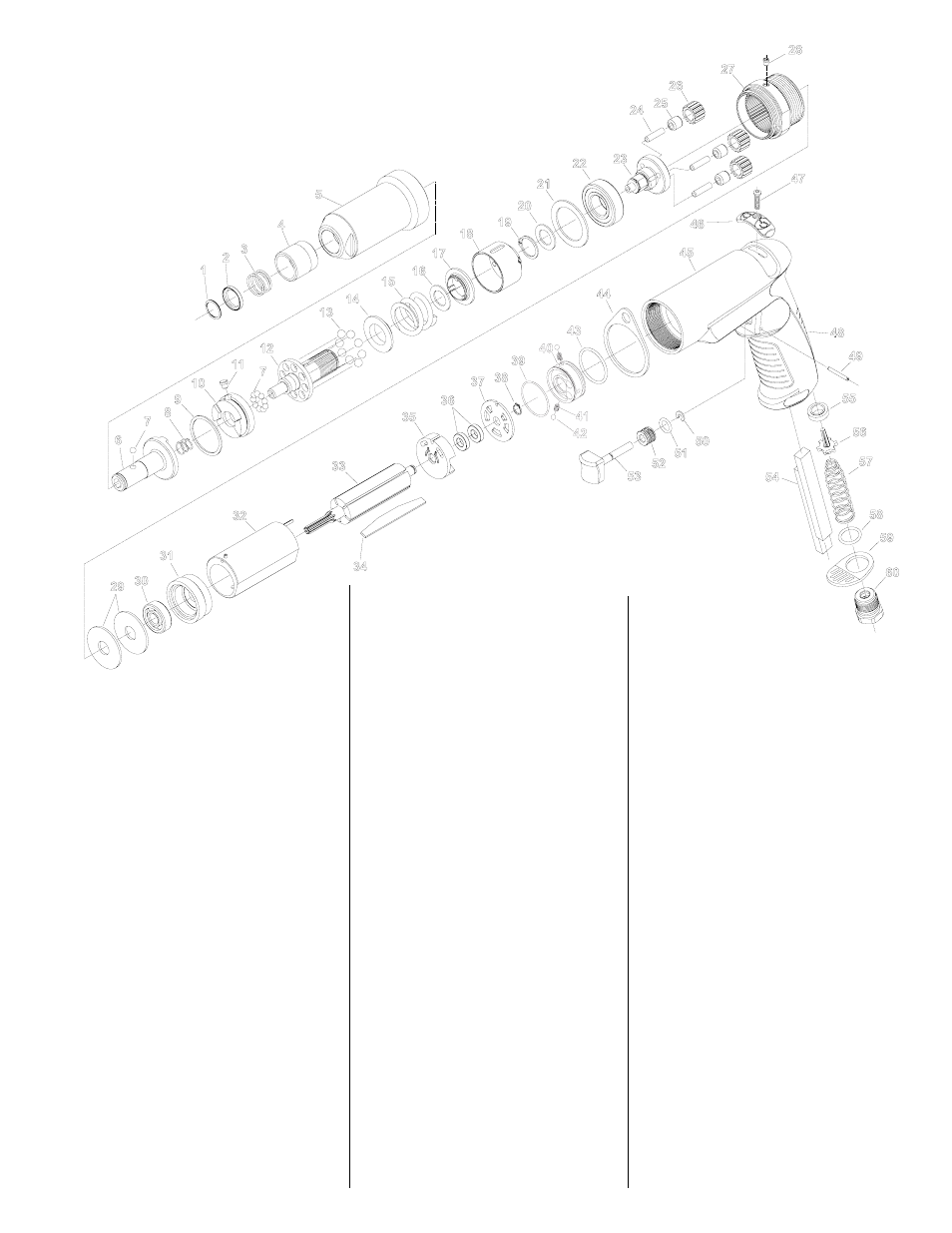

PARTS LIST FOR SSD6P & SSD10P SERIES SCREWDRIVERS
SINGLE REDUCTION ADJUSTABLE CLUTCH
SERIAL “B”
Fig. Part
No. No. Description
Fig. Part
No. No. Description
*Order Quantity As Required
FURNISH CATALOG, SERIAL, AND MODEL NUMBER
WHEN ORDERING PARTS
Fig. Part
No. No. Description
1. 74830 Spiral Retaining Ring
2. 44660 Ring Guide
3. 21406 Spring
4. 54468B Ball Retainer
5. SSD-25 Clutch Case
6. 22677 Bit Holder
7. 10902 Ball (10)*
8. 41250 Spring
9. 21827 Retaining Ring
10. 54071A Clutch Jaw
11. 54074 Ball Retainer
12. SSD-15 Clutch Spindle
13. 10291 Steel Ball (8)*
14. 54072 Spring Guide
15. 41249B Clutch Spring (High
Torque)
41284 Clutch Spring (Low Torque)
16. 35273 Washer
17. 54073 Index Washer
18. 53095 Adjusting Nut Assembly
19. 21774 Retaining Ring
20. SSD-12 Adjustable Clutch Spacer
21. SSD-11 Spacer
22. 10265 Ball Bearing
23. SSD-22 Cantilever Hex Carrier
(2000 RPM)
SSD-21 Cantilever Hex Carrier
(2500 RPM)
24. SDR-24 Pin (3)*
46. SDR-16 Reversing Shuttle
47. SDR-12 Reversing Mechanism Screw
48. SPSDR-28 Grip (Includes Grip Tape)
49. 30610 Roll Pin 5/64 x 3/4 in
50. 21542 Retaining Ring
51. 14311 O-Ring
52. SDR-23 Trigger Sleeve
53. SDR-200 Trigger
54. 04046 Silencer Pad (2)*
55. IM3100-22 Tipper Valve Seat
56. SDR-20 Tipper
57. SDR-13 Trigger Spring
58. 69007 O-Ring
59. SDR-35 Exhaust Cap
60. 66244R Inlet Adapter
Not Shown:
SPSDR-7AR Motor Assembly (SSDP20AC)
(Includes Figures 29 thru 37)
SPSDR-77AR Motor Assembly (SSD6P20AC)
(Includes Figures 29 thru 37)
SPSDR-8AR Motor Assembly (SSD-
10P25AC)
(Includes Figures 29 thru 37)
SPSDR-87AR Motor Assembly ((SSD6P25AC)
(Includes Figures 29 thru 37)
SPSDR-2A Reversing Housing Assembly
(SSD10P Models)(Includes
Figures 37 thru 43, 45 thru 60)
SPSDR-33A Reversing Housing Assembly
(SSD6P Models)(Includes
Figures 37 thru 43, 45 thru 60)
