Sioux Tools SSD10P - Manual (Page 26)

Form ZCE778A 26 Date 2013November5/B
5
4
1
2
3
52
53
54
55
56
57
58
50
51
59
60
47
48
49
61
62
44
42
43
39
37
41
38
40
46
45
32
29
30
31
28
27
27
26
24
25
22
23
21
20
21
33
34
35
36
63
13
14
6
7
8
9
7
10
12
11
15
19
17
18
16
64
65
66
1. 74830 Spiral Retaining Ring
2. 44660 Ring Guide
3. 21406 Spring
4. 54468B Ball Retainer
5. SSD-25 Clutch Case
6. 22677 Bit Holder
7. 10902 Ball (10)*
8. 41250 Spring
9. 21827 Retaining Ring
10. 54071A Clutch Jaw
11. 54074 Ball Retainer
12. SSD-15 Clutch Spindle
13. 10291 Steel Ball (8)*
14. 54072 Spring Guide
15. 41249B Clutch Spring (High Torque)
41284 Clutch Spring (Low Torque)
16. 35273 Washer
17. 54073 Index Washer
18. 53095 Adjusting Nut Assembly
19. 21774 Retaining Ring
20. SSD-41 Double Reduction Gear Case
(Includes Figure 21)
21. 30375 Grease Fitting (2)*
22. 10265 Ball Bearing
23. SSD-63 Hex Gear Carrier
(300, 500, & 700 RPM)
SSD-64 Hex Gear Carrier (1200 RPM)
24. SDR-24 Pin (3)*(300, 500, & 700 RPM)
30062 Pin (3)*(1200 RPM)
25. 10028FC Needle Bearing (3)*
(300, 500, & 700 RPM)
10040 Needle Bearing (3)*(1200 RPM)
26. SDR-45 Planetary Gear (3)*
(300, 500, & 700 RPM)
SDR-46 Planetary Gear (3)*(1200 RPM)
27. ME11A33A Ball Bearing (2)*
28. SDR-27 Spacer
50. 74106 Bail
51. SDR-2 Pistol Reversing Housing
(SSD10P Models)
SDR-33 Pistol Reversing Housing
(SSD6P Models)
52. SDR-16 Reversing Shuttle
53. SDR-12 Reversing Mechanism Screw
54. SPSDR-28 Grip (Includes Grip Tape)
55. 30610 Roll Pin 5/64 x 3/4 in
56. 21542 Retaining Ring
57. 14311 O-Ring
58. SDR-23 Trigger Sleeve
59. SDR-200 Trigger
60. 04046 Silencer Pad (2)*
61. IM3100-22 Tipper Valve Seat
62. SDR-20 Tipper
63. SDR-13 Trigger Spring
64. 69007 O-Ring
65. SDR-35 Exhaust Cap
66. 66244R Inlet Adapter
Not Shown:
SPSDR-7AR Motor Assembly (300, 700, &
1200 RPM)(SSD10P Models)
(Includes Figures 36 thru 44)
SPSDR-77AR Motor Assembly (300, 700, &
1200 RPM)(SSD6P Models)
(Includes Figures 36 thru 44)
SPSDR-8AR Motor Assembly (SSD10P5AC)
(Includes Figures 36 thru 44)
SPSDR-87AR Motor Assembly
(SSD6P5AC)
(Includes Figures 36 thru 44)
SPSDR-2A Reversing Housing Assembly
(SSD10P Models)(Includes
Figures 45 thru 49, 51 thru 66)
SPSDR-33A Reversing Housing Assembly
(SSD6P Models)(Includes
Figures 45 thru 49, 51 thru 66)
77067A Support Handle Assembly
Fig. Part
No. No. Description
29. SDR-36 Cantilever Gear Carrier
(700 RPM)
SDR-37 Cantilever Gear Carrier
(500 RPM)
SDR-38 Cantilever Gear Carrier
(300 RPM)
SDR-39 Cantilever Gear Carrier
(1200 RPM)
30. 30062 Pin (3)*(700, 1200 RPM)
SDR-24 Pin (3)*(300, 500 RPM)
31. 10040 Needle Bearing (3)*
(700, 1200 RPM)
10028B Needle Bearing (3)*
(300, 500 RPM)
32. SDR-46 Planetary Gear (3)*
(700, 1200 RPM)
SDR-44 Planetary Gear (3)*(300 RPM)
SDR-45 Planetary Gear (3)*(500 RPM)
33. SDR-47 Sun Gear (700, 1200 RPM)
34. SDR-41 First Gear Case
(Includes Figure 21)
35. SDR-29 Wear Plate (2)*
36. 10220 Ball Bearing
37. SDR-80 Front End Plate
38. 74130 Cylinder (SSD10P Models)
74134 Cylinder (SSD6P Models)
39. SDR-7 Rotor (300, 700, & 1200 RPM)
(SSD10P Models)
SDR-77 Rotor (300, 700, & 1200 RPM)
(SSD6P Models)
SDR-8 Rotor (SSD10P5AC)
SDR-87 Rotor (SSD6P5AC)
40. SP74048 Vane Set (SSD10P Models)
SP74049 Vane Set (SSD6P Models)
41. SDR-11 Rear End Plate
42. SDR-26 Ball Bearing (2)*
43. SDR-10 Reversing Plate
44. 21491 Retaining Ring
45. 69017 O-Ring
46. SPSDR-9 Reversing Manifold
(Includes Figures 45 thru 49)
47. ME1A189 Spring (2)*
48. ME9A14 Steel Ball (2)*
49. 04215 O-Ring

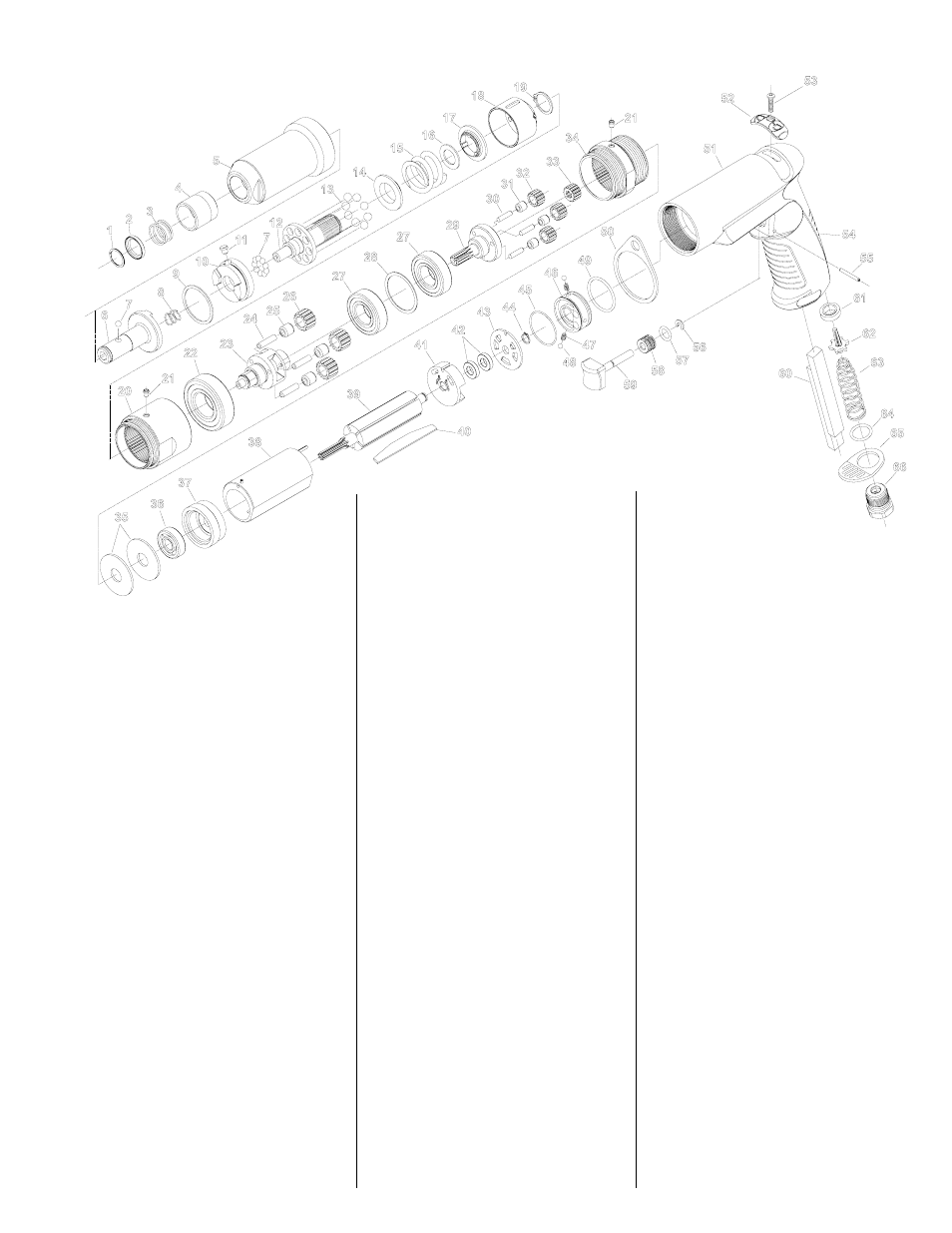

PARTS LIST FOR SSD6P & SSD10P SERIES SCREWDRIVERS
DOUBLE REDUCTION ADJUSTABLE CLUTCH
SERIAL “B”
Fig. Part
No. No. Description
*Order Quantity As Required
FURNISH CATALOG, SERIAL, AND
MODEL NUMBER
WHEN ORDERING PARTS
Fig. Part
No. No. Description
