INSTRUCTIONS FOR 2 1/2 SERIES

NUTRUNNERS, SCREWDRIVERS, & DRILLS

Read and understand "Safety Instructions For Air Tools" and these instructions before

operating this tool.

AIR SUPPLY
The efficiency of the tool is dependent on the proper supply of clean dry air at 90 psig (6.2 bar). The use of a line filter,

pressure regulator, and lubricator will insure maximum output and life of tools. Before connecting tool, blow out the air line to

remove water and dirt which may have accumulated.
HOSE AND HOSE CONNECTIONS
Supply hose should be not less than 3/8" (10mm) I.D. Extension hoses should be at least 1/2" (13mm) I.D. Use couplings and

fittings with at least 3/8" (10mm) I.D.
LUBRICATION
Use SIOUX No. 288 air motor oil. An airline lubricator, set to deliver 2 to 4 drops per minute, is recommended. If a lubricator is

not used, add .04 oz. (1.2cc, 12 to 15 drops) of oil into the air inlet twice daily.
Lubricate the gearing every 100 hours of operation with SIOUX No. 289A grease.
Lubricate positive and adjustable clutches every 40 hours with SIOUX No. 1232A grease.
GENERAL OPERATION
The air motor is started by depressing the operating lever or trigger. Motor speed may be controlled by adjusting the slotted

head control which is located on the tool housing or on some models on the trigger surface.

On reversing tools, the direction of spindle rotation is controlled by the reversing button. When the button is de-

pressed, the spindle rotates counterclockwise. Always depress the button fully to obtain full power. The reversing

button on some models can be locked in the reverse direction by fully depressing and rotating the button clockwise.
Clutch Operation Information

Screw Drivers And Nut Runners
STALL DRIVE..........................................
Spindle turns with motor. Motor stalls when fastener is tight.
DIRECT CLUTCH .................................... Spindle doesn’t turn with motor. Pressure on spindle engages straight jaws to turn

spindle. Motor stalls when fastener is tight.

POSITIVE CLUTCH-ANGULAR JAW ..... Spindle doesn’t turn with motor. Pressure on spindle engages angular jaws to turn

spindle. Clutch ratchets when certain tightness is reached. Torque on the fastener is

determined by how hard the operator pushes on the tool.

POSITIVE CLUTCH ROLLER JAWS ...... Similar to angular jaw except 4 rollers engage angular teeth. Ratchets faster and blow

not as hard.

ADJUSTABLE CLUTCH ......................... Spindle doesn’t turn with motor. Pressure on spindle engages the clutch, causing the

spindle to turn. When fastener reaches a preset torque, clutch will ratchet. Adjusting

spring pressure will change torque.

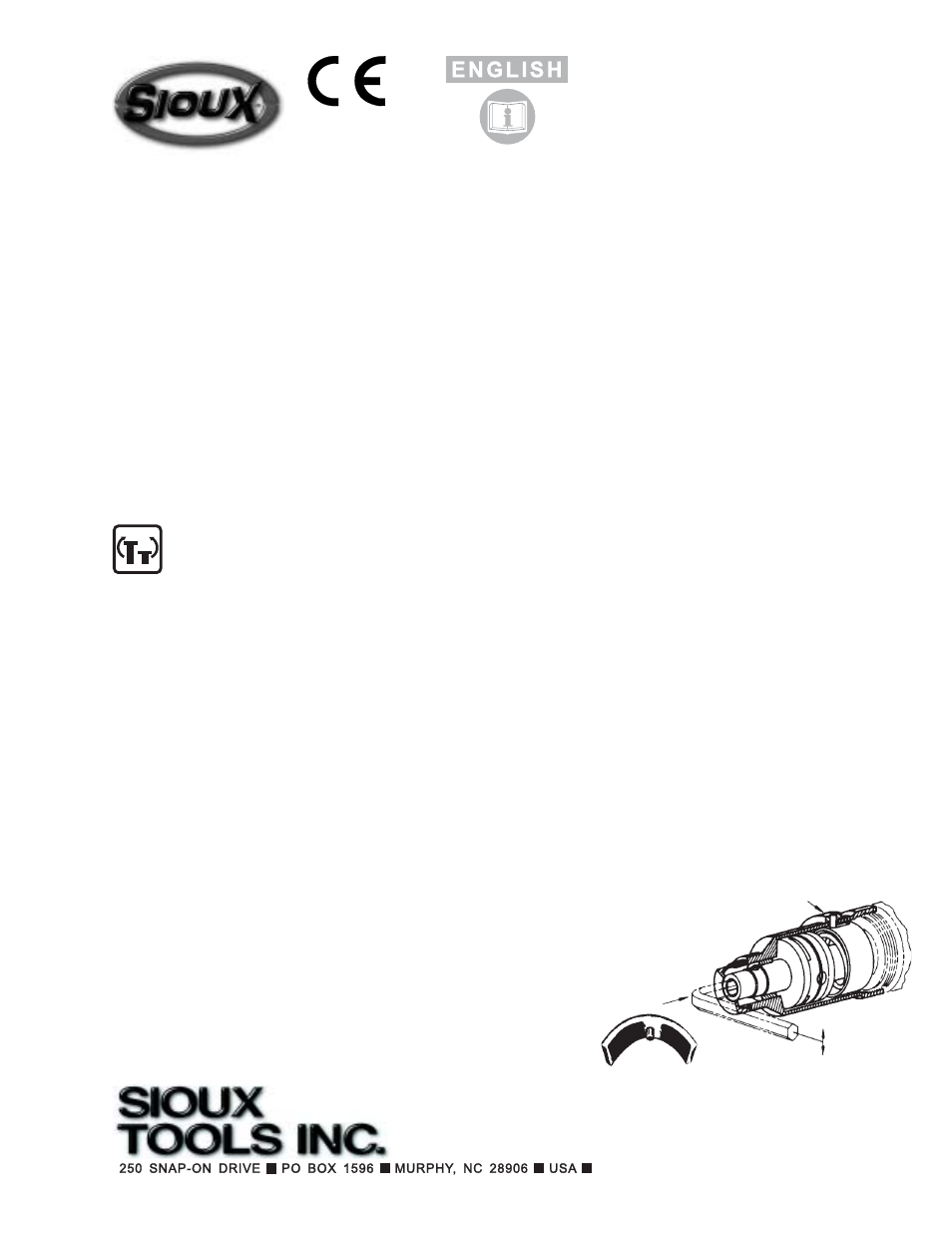

Adjustment of Adjustable Clutch
ABOVE 25 INCH POUNDS
To adjust clutch place adjusting wrench (No. 53099) with pin

through opening in the clutch case. Place 1/4" (6.4 mm) HEX

wrench in the Bit Holder, press in and turn until adjusting wrench

falls into the slot of the Nut of the Clutch. Keep Bit Holder de-

pressed in with HEX Wrench and turn clockwise to increase and

counterclockwise to decrease Torque.
BELOW 25 INCH POUNDS CHANGE TO GREEN SPRING NO. 41284
Again place adjusting wrench in position as for the higher Torque,

but place a screw driver blade through the bit holder opening until

in contact with the slot at the far end. Rotate screw driver until

adjusting wrench falls into place, again rotate screw driver clock-

wise to increase and counterclockwise to decrease Torque.

Form ZCE441

Date 2003June17/D

Page 1 of 32

ADJUSTING

WRENCH

DEPRESS SPINDLE TO

ENGAGE CLUTCH JAWS

DECREASE

INCREASE

53099
