Sioux Tools NO. 1 SERIES “1AM” - Manual (Page 9)

9
Double Reduction
(800 RPM)
Fig. Part
No. No. Description
1. 43804 Ass’y—Planetary (800 RPM)
2. 10257 Bearing—Ball
3. 25680 Washer (4)*
4. 44921 Carrier—Gear (800 RPM)
5. 30453 Pin (4)*
6. 10040 Bearing—Needle (2)*
7. 19195 Gear—Idler (800 RPM)(2)*
8. 10241 Bearing—Ball (3)*
9. 19190 Gear—Ring
10. 21537 Ring—Retaining
11. 66087 1st Ass’y—Planetary (800 RPM)
12. 66079 Carrier—Gear (800 RPM)
13. 66078 Gear—Idler (800 RPM)(2)*
14. 66077 Gear—Pinion (800 RPM)
Single Reduction
(2200, 2800 RPM)
Fig. Part
No. No. Description
1. 43803 Ass’y—Planetary (2200 RPM)
43804 Ass’y—Planetary (2800 RPM)
2. 10257 Bearing—Ball
3. 25680 Washer (2)*
4. 30453A Pin (2)*
5. 19212 Gear—Idler (2200RPM)
19195 Gear—Idler (2800RPM)
6. 44920 Carrier—Gear (2200 RPM)
44921 Carrier—Gear (2800 RPM)
7. 10241 Bearing—Ball
8. 19189 Gear—Ring

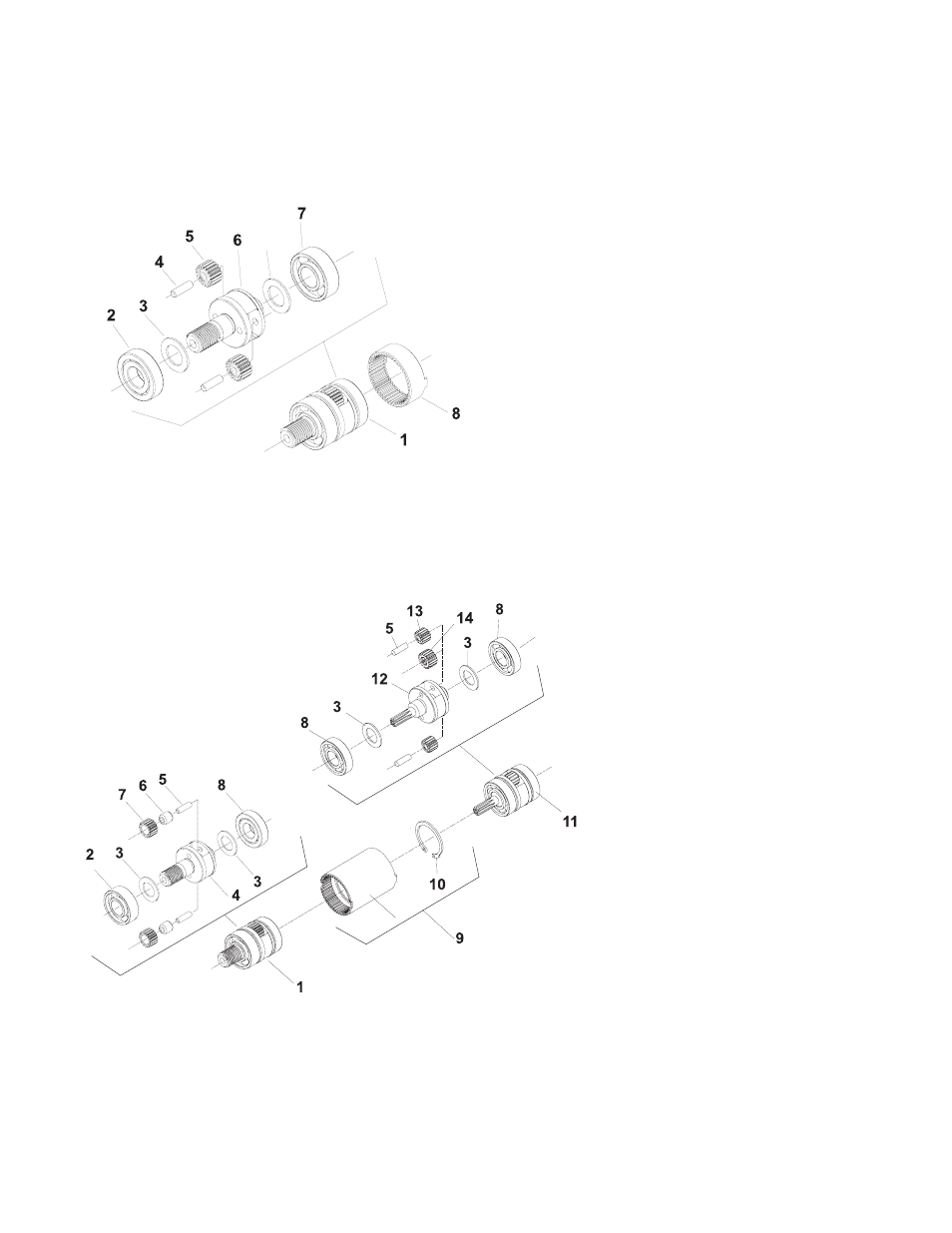

PARTS LIST FOR NO. 1 SERIES
“1AM” AIRCRAFT ANGLE TOOLS
(Serial “A”)
*Order Quantity As Required
FURNISH CATALOG, SERIAL, AND
MODEL NUMBER WHEN ORDERING
PARTS
