Page 8
8

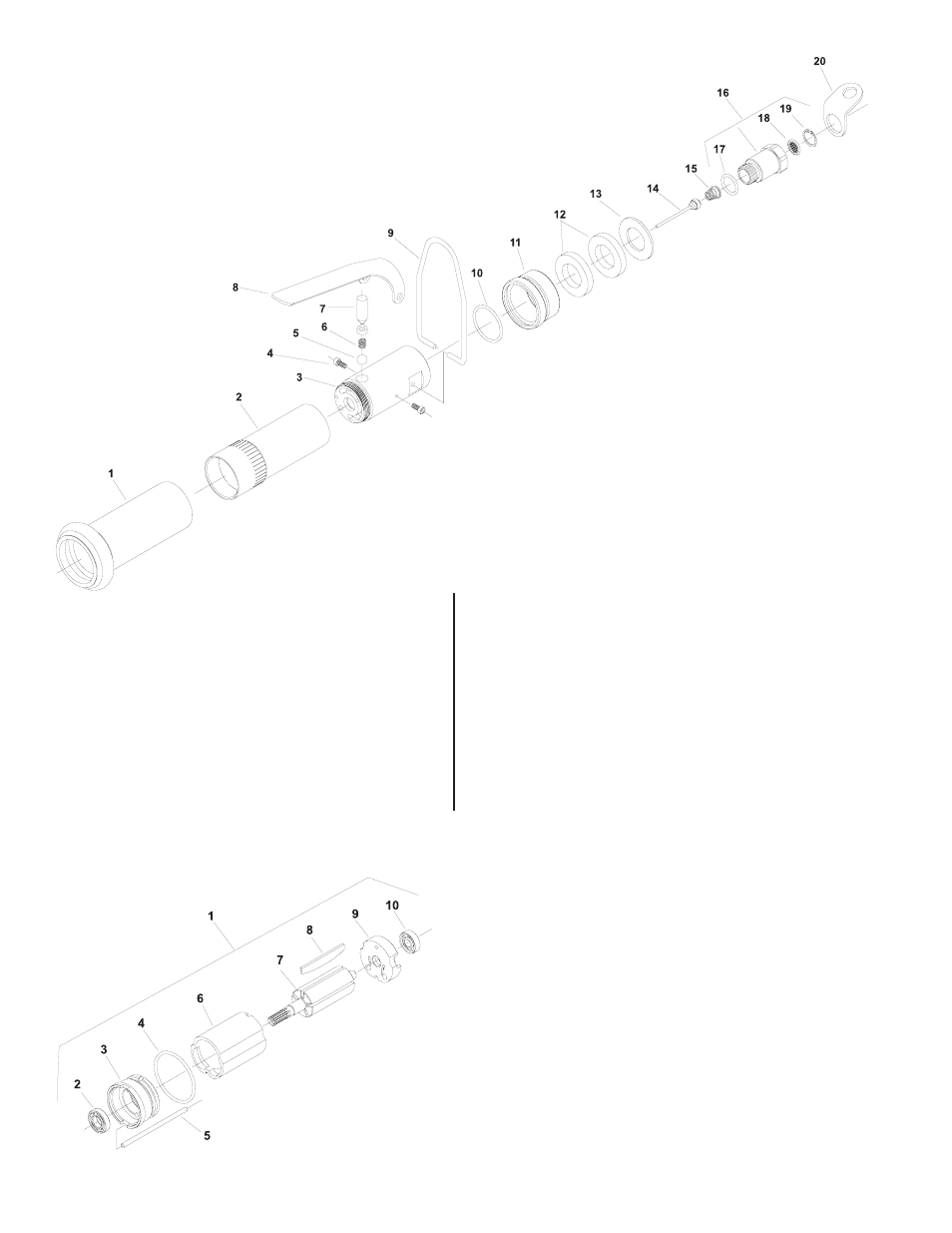

PARTS LIST FOR NO. 1 SERIES
“1AM” AIRCRAFT ANGLE TOOLS
(Serial “A”)
Fig. Part
No.
No.
Description
Fig. Part
No.
No.
Description
1. 66193A
Housing Sleeve (Short—2200, 2800 RPM)
66124
Housing Sleeve (Long—800 RPM)
2.
66010
Housing Assembly (2200, 2800 RPM)
66011
Housing Assembly (800 RPM)
3.
66008
Block Housing
4.
06099
Screw (2)*
5.
10299
Steel Ball1/4" Dia.
6.
21211
Lock Plunger Spring
7.
66020
Plunger
8.
35235
Lever
9.
66036
Bail
10.
04210
O-Ring
11.
66018
Silencer Housing
12.
66191
Felt Washer (2)*
13.
66017
Diffuser Screen
14.
66035
Valve Assembly
15.
21441
Spring
16.
66016
Inlet Adapter
17.
14312
O-Ring
18.
30463
Screen
19.
21541
Retaining Ring
20.
35196
Bail
*Order Quantity As Required
FURNISH CATALOG, SERIAL, AND
MODEL NUMBER WHEN ORDERING
PARTS
Housing Assembly
Fig. Part
No.
No.
Description
1.
65999
Ass’y-Motor (6 Tooth)(2200 RPM)
66000
Ass’y-Motor (8 Tooth)(2800 RPM)
2.
65998
Bearing-Ball
3.
65995
End Plate-Lower
4.
14391
Ring-”O”
5.
66132
Pin
6.
65994
Cylinder
7.
65991
Rotor (6 Tooth)(2200 RPM)
65992
Rotor (8 Tooth)(2800 RPM)
8.
14762
Vane (Set of 5)
9.
65997
End Plate-Upper
10.
10255
Bearing-Ball
Motor Assembly
