Sioux Tools NO. 1 SERIES “1AM” - Manual (Page 11)

11
1. 65238 Flange Bushing
2. 65246 Pin (2)*(Set of 22)
3. 65236 Collet Gear (1/4-28 Th’d)
65264 Collet Gear (#10-32 Th’d)
65538 Collet Gear (9/32"-40 Th’d)
4. 30375 Grease Fitting
5. 65237 45 Degree Housing (Includes Fig. 4)
6. 65235 Pinion
7. 65245 Bearing Retainer
8. 65242 .005" Shim (Order Quantity As Needed)
9. 65244 Angle Drill Housing
10. 10257 Ball Bearing
11. 65243 Retaining Nut
12. 65143 Jam Nut
13. 65146 Spindle Adapter

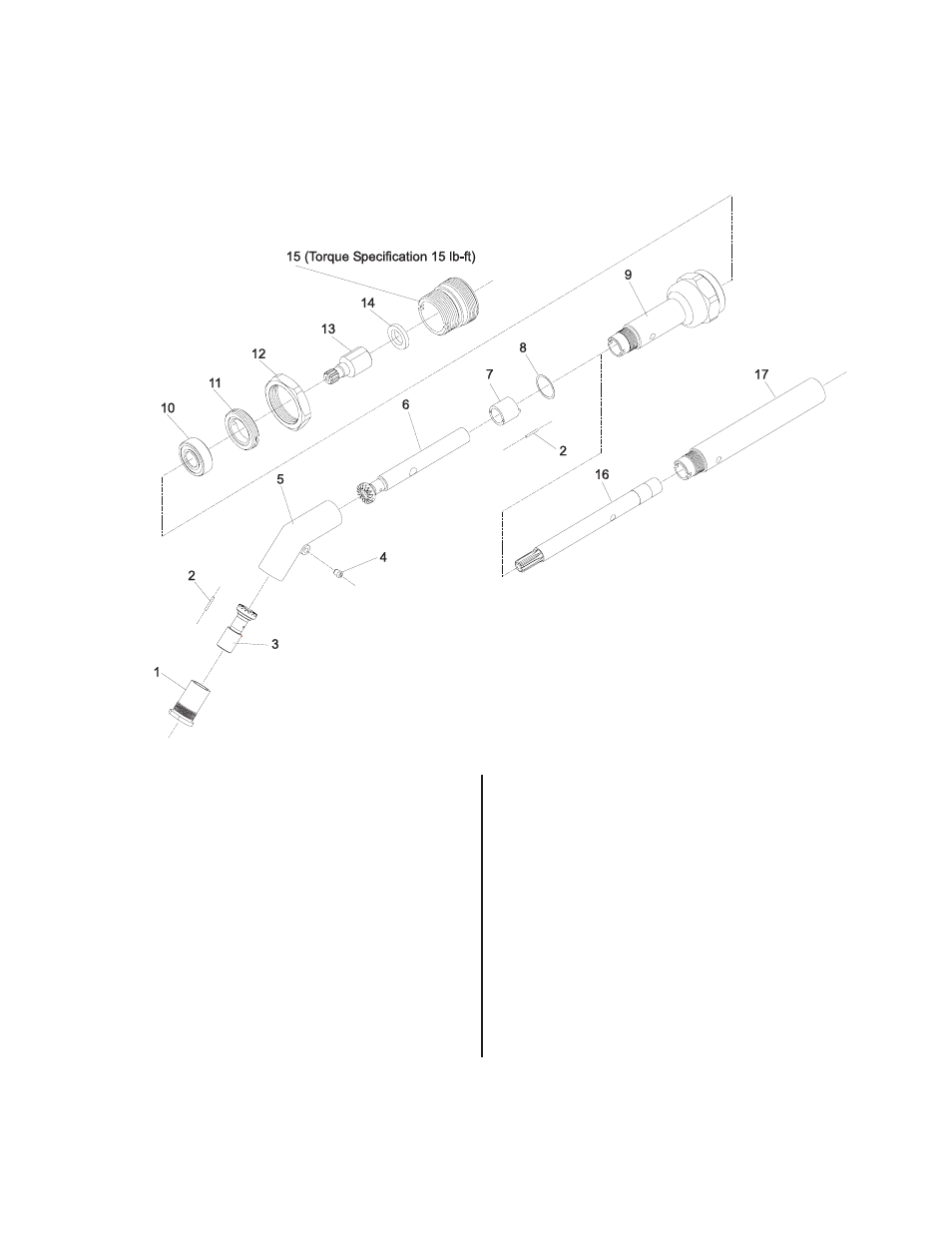

45 Degree Angle Head Assembly
Fig. Part
No. No. Description
*Order Quantity As Required
FURNISH CATALOG, SERIAL, AND
MODEL NUMBER WHEN ORDERING
PARTS
PARTS LIST FOR NO. 1 SERIES
“1AM” AIRCRAFT ANGLE TOOLS
(Serial “A”)
Fig. Part
No. No. Description
14. 44122 Spacer
15. 65231 Adapter
16. 65486 Drive Shaft Extension
17. 65487 Housing Extension
65213 Complete Assembly (1/4"-28 Th’d)
(Includes Figs. 1 thru 11)
65265 Complete Assembly (#10-32 Th’d)
(Includes Figs. 1 thru 11)
65541 Complete Assembly (9/32"-40 Th’d)
(Includes Figs. 1 thru 11)
