25

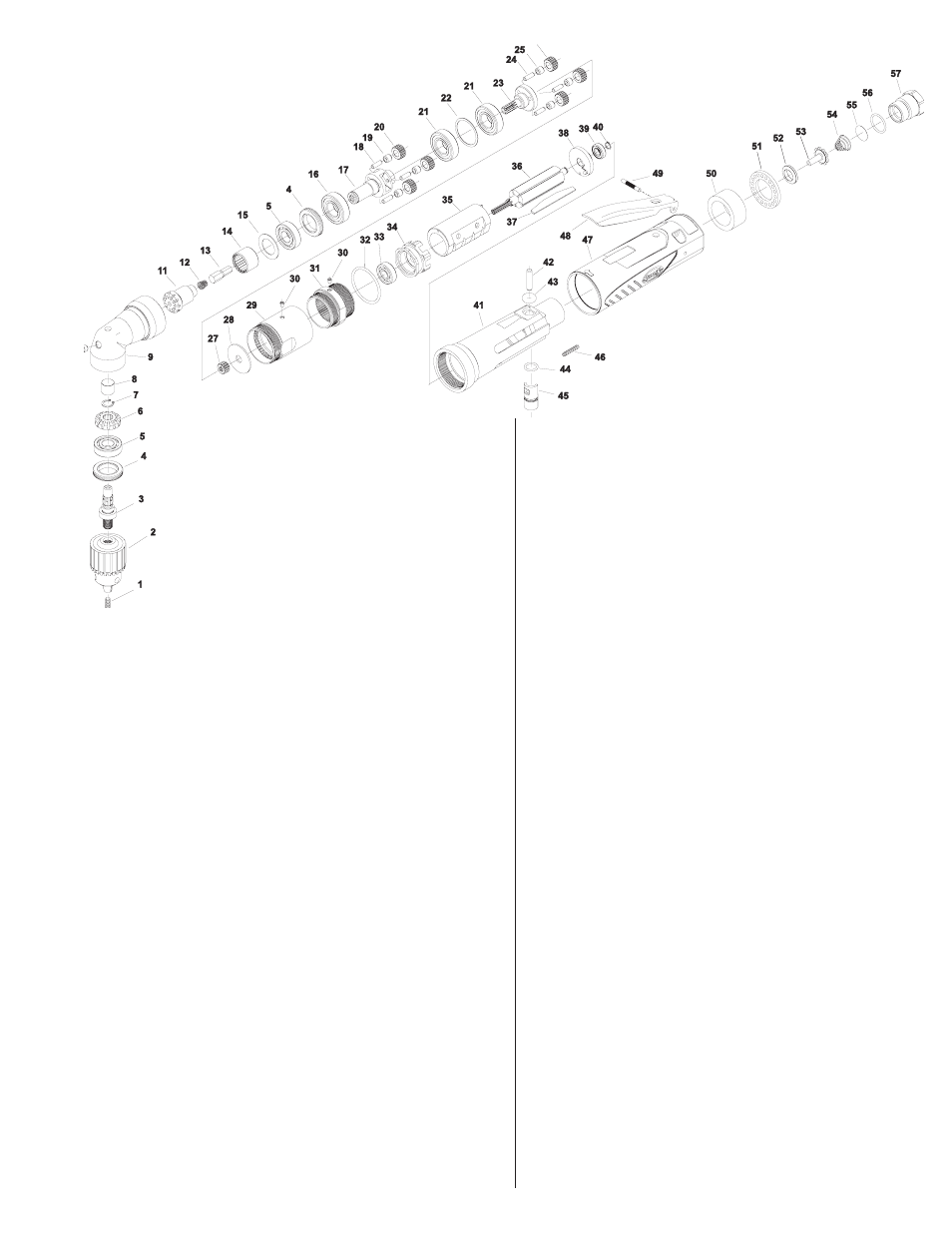

PARTS LIST FOR SDR10A SERIES DRILLS
NON-REVERSING DOUBLE REDUCTION
SERIAL “A”
1. 57250 Chuck Screw (for model numbers ending with 2)
57250R Chuck Screw (for model numbers ending
with 3 or 4)
2. 21019A 1/4" Chuck (for model numbers ending with 2)
30202 Chuck Key, 1/4"
21133B 3/8" Chuck (for model numbers ending with 3)
30002 Chuck Key, 3/8"
21132B 1/2" Chuck (for model numbers ending with 4)
30429 Chuck Key, 1/2"
3. 22651 Chuck Spindle
4. 44776 Bearing Retainer (2)*
5. 10226 Ball Bearing (2)*
6. 19201 Gear
7. ME7A118 Retaining Ring
8. 10012 Needle Bearing
9 SPSDR-92 Angle Head
10. 30375 Grease Fitting
11. 65596 Gear
12. 21401 Valve Spring
13. SDM2720D Bit
14. 10049 Needle Bearing
15. 35214 Washer
16. 10265 Ball Bearing
17. SSD-61 Gear Carrier (400, 1000 RPM)
SSD-62 Gear Carrier (1300 RPM)
18. SDR-24 Pin (3)*(400 & 1000 RPM)
30062 Pin (3)*(1300 RPM)
19. 10028FC Needle Bearing (3)*(400 & 1000 RPM)
10040 Needle Bearing (3)*(1300 RPM)
20. SDR-45 Planetary Gear (3)*(400 & 1000 RPM)
SDR-46 Planetary Gear (3)*(1300 RPM)
21. ME11A33A Ball Bearing (2)*
Fig. Part
No. No. Description
Fig. Part
No. No. Description
22. SDR-27 Spacer
23. SDR-38 Cantilevered Gear Carrier (400 RPM)
SDR-39 Cantilevered Gear Carrier (1300 RPM)
SDR-36 Cantilevered Gear Carrier (1000 RPM)
24. SDR-24 Pin (3)*(400 RPM)
30062 Pin (3)*(1000 & 1300 RPM)
25. 10028B Needle Bearing (3)*(400 RPM)
10040 Needle Bearing (3)*(1000 & 1300 RPM)
26. SDR-44 Planetary Gear (3)*(400 RPM)
SDR-46 Planetary Gear (3)*(1000 & 1300 RPM)
27. SDR-47 Slip Over Pinion (1000 & 1300 RPM)
28. SDR-29 Wear Plate
29. SDR-94 Double Reduction Gear Case
(Includes Fig. 30)
30. 30375 Grease Fitting (2)*
31. SDR-41 Gear Case (Includes Fig. 30)
32. 14333B O-Ring
33. 10220 Ball Bearing
34. SDR-50 Front End Plate
35. 74030 Cylinder, Non-Reversing
36. SDR-7 Rotor (7 tooth)
37. SP74048 Vane Set
38. 74023 Rear End Plate
39. 10253 Ball Bearing
40. 21491 Retaining Ring
41. SDG-1 Straight Non-Reversing Housing
42. 74018 Torr Pin, 3/16 X 7/8
43. 67793 O-ring
44. 14290 “O” Ring
45. 74013 Regulator
46. 06402 Screw, 6-32 X 3/4 Set Soc Hex
47. 74004 Cover
48. SDR-5 Lever
49. 74020 Knurl Pin
50. 74016 Muffler
51. 74017 Exhaust Deflector
52. 74008 Throttle Valve Seat
53. 74009 Throttle Valve
54. 74010 Taper Spring
55. 74011 Screen
56. 14281B “O” Ring, 1/16 X 5/8 X 3/4
57. 74012 Inlet Bushing
*Order Quantity As Required
FURNISH CATALOG, SERIAL, AND
MODEL NUMBER
WHEN ORDERING PARTS
