22

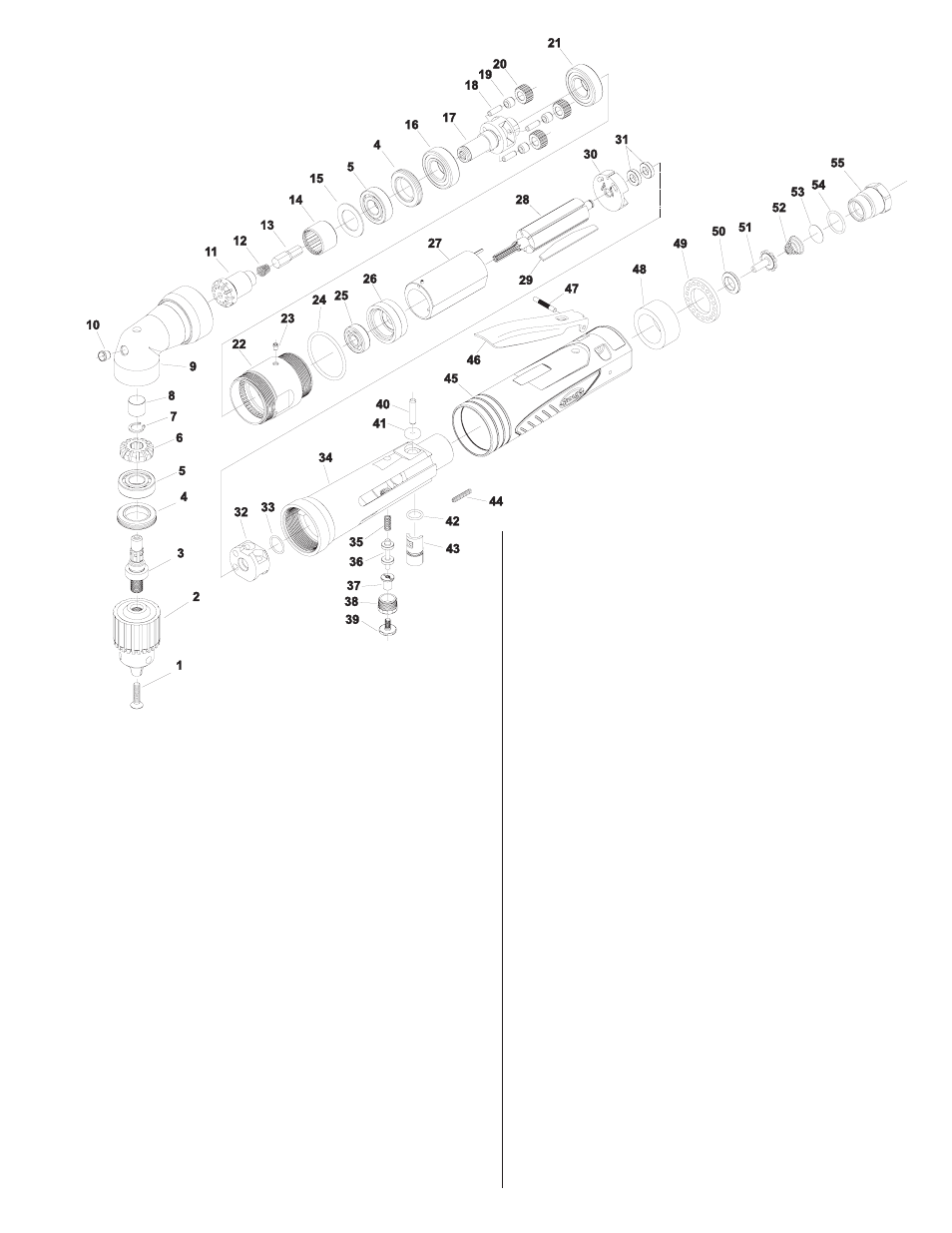

PARTS LIST FOR SDR10A SERIES ANGLE DRILLS
REVERSING SINGLE REDUCTION
SERIAL “A”
Fig. Part
No. No. Description
Fig. Part
No. No. Description
*Order Quantity As Required
FURNISH CATALOG, SERIAL, AND MODEL NUMBER
WHEN ORDERING PARTS
1. 57250 Chuck Screw (For numbers ending with 2)
57250R Chuck Screw (For numbers ending with 3)
2. 21019A 1/4" Chuck (for model numbers ending with 2)
30202 Chuck Key, 1/4"
21133B 3/8" Chuck (for model numbers ending with 3)
30002 Chuck Key, 3/8"
3. 22651 Chuck Spindle
4. 44776 Bearing Retainer (2)*
5. 10226 Ball Bearing (2)*
6. 19201 Gear
7. ME7A118 Retaining Ring
8. 10012 Needle Bearing
9 SPSDR-92 Angle Head
10. 30375 Grease Fitting
11. 65596 Gear
12. 21401 Valve Spring
13. SDM2720D Bit
14. 10049 Needle Bearing
15. 35214 Washer
16. 10265 Ball Bearing
17. SSD-61 Gear Carrier (2000 RPM)
SSD-60 Gear Carrier (1600 RPM)
18. SDR-24 Pin (3)*
19. 10028B Needle Bearing (3)*
20. SDR-44 Planetary Gear (3)* (1600 RPM)
SDR-45 Planetary Gear (3)* (2000 RPM)
21. ME11A33A Ball Bearing
22. SDR-93 Single Reduction Gear Case (Includes
Fig. 23)
23. 30375 Grease Fitting
24. 14333B O-Ring
25. 10220 Ball Bearing
26. SDR-80 Front End Plate
27. SP74130 Cylinder, Reversing
28. SDR-7 Rotor (7 tooth)(1600 RPM)
SDR-8 Rotor (8 tooth)(2000 RPM)
29. SP74048 Vane Set
30. SDR-11 Rear End Plate
31. SDR-26 Ball Bearing (2)*
32. SDR-82 Rapid Reverse Insert
33. 69007 O-ring
34. SDR-81 Straight Reversing Housing
35. SDR-84 Reversing Spring
36. SDR-83 Reverse Valve Spool
37. SDR-88 Top Reverse Button
38. SDR-85 Top Reverse Nut
39. SDR-86 Top Reverse Cap
40. 74018 Torr Pin, 3/16 X 7/8
41. 67793 O-ring
42. 14290 O-ring
43. 74013 Regulator
44. 06402 Screw, 6-32 X 3/4 Set Soc Hex
45. 74103 Cover
46. SDR-5 Lever
47. 74020 Knurl Pin
48. 74016 Muffler
49. 74017 Exhaust Deflector
50. 74008 Throttle Valve Seat
51. 74009 Throttle Valve
52. 74010 Taper Spring
53. 74011 Screen
54. 14281B O-ring, 1/16 X 5/8 X 3/4
55. 74012 Inlet Bushing
