23

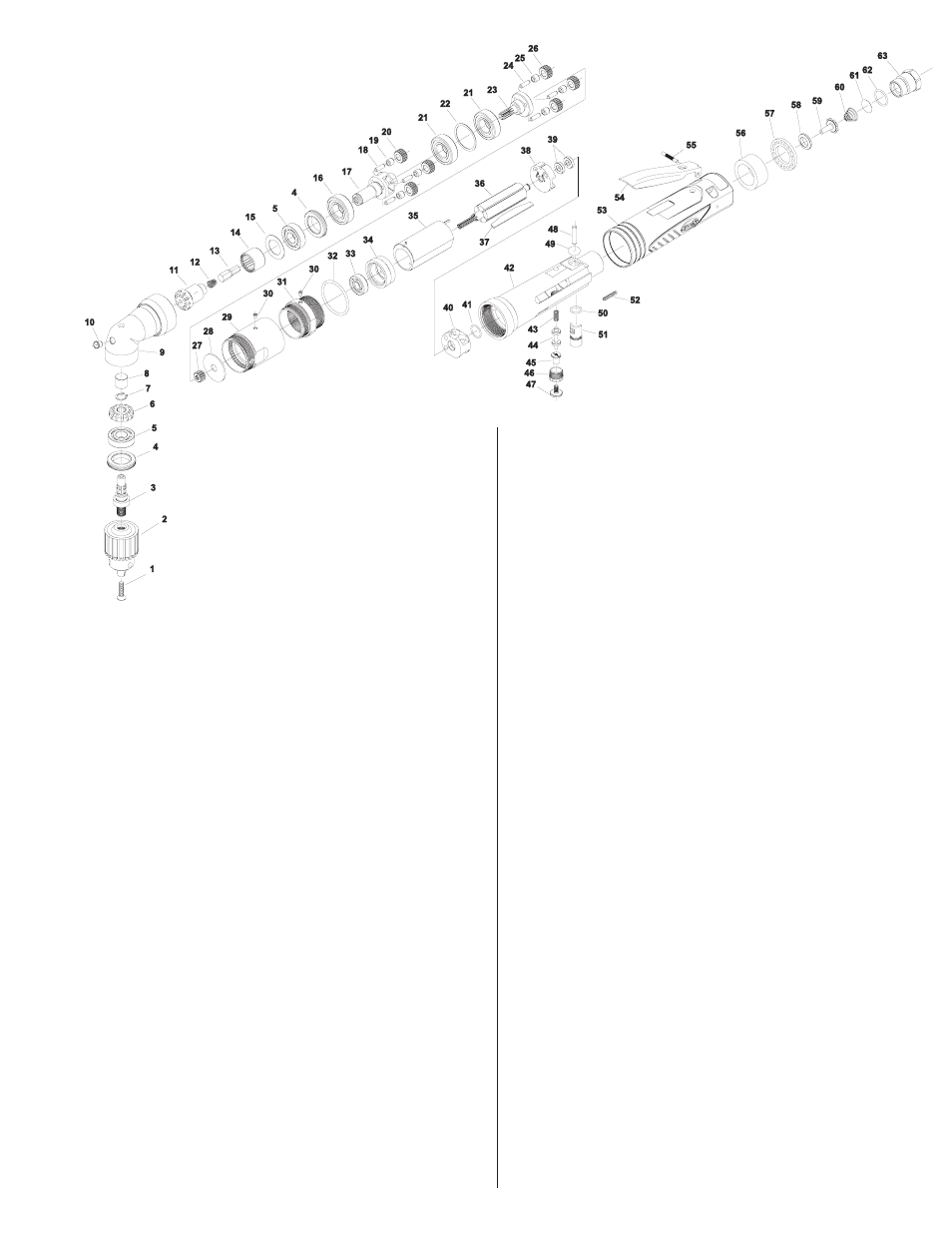

PARTS LIST FOR SDR10A SERIES DRILLS
REVERSING DOUBLE REDUCTION
SERIAL “A”
Fig. Part
No. No. Description
Fig. Part
No. No. Description
1. 57250R Chuck Screw
2. 21132B 1/2" Chuck (for model numbers ending with 4)
30429 Chuck Key, 1/2"
21133B 3/8" Chuck (for model numbers ending with 3)
30002 Chuck Key, 3/8"
3. 22651 Chuck Spindle
4. 44776 Bearing Retainer (2)*
5. 10226 Ball Bearing (2)*
6. 19201 Gear
7. ME7A118 Retaining Ring
8. 10012 Needle Bearing
9 SPSDR-92 Angle Head
10. 30375 Grease Fitting
11. 65596 Gear
12. 21401 Valve Spring
13. SDM2720D Bit
14. 10049 Needle Bearing
15. 35214 Washer
16. 10265 Ball Bearing
17. SSD-62 Gear Carrier (1000 RPM)
SSD-61 Gear Carrier (600 & 300 RPM)
18. 30062 Pin (3)*(1000 RPM)
SDR-24 Pin (3)*(600 & 300 RPM)
19. 10040 Needle Bearing (3)*(1000 RPM)
10028FC Needle Bearing (3)*(600 & 300 RPM)
20. SDR-46 Planetary Gear (3)*(1000 RPM)
SDR-45 Planetary Gear (3)*(600 & 300 RPM)
21. ME11A33A Ball Bearing (2)*
22. SDR-27 Spacer
23. SDR-36 Cantilevered Gear Carrier (600 RPM)
SDR-38 Cantilevered Gear Carrier (300 RPM)
SDR-39 Cantilevered Gear Carrier (1000 RPM)
24. SDR-24 Pin (3)* (300 RPM)
30062 Pin (3)*(1000 & 600 RPM)
25. 10028B Needle Bearing (3)*(300 RPM)
10040 Needle Bearing (3)*(1000 & 600 RPM)
26. SDR-44 Planetary Gear (3)*(300 RPM)
SDR-46 Planetary Gear (3)*(1000 & 600 RPM)
27. SDR-47 Slip Over Pinion (1000 & 600 RPM)
28. SDR-29 Wear Plate
29. SDR-94 Gear Case (Includes Fig. 30)
30. 30375 Grease Fitting (2)*
31. SDR-41 Double Reduction Gear Case (Includes Fig. 30)
32. 14333B O-Ring
33. 10220 Ball Bearing
34. SDR-80 Front End Plate
35. SP74130 Cylinder, Reversing
36. SDR-7 Rotor (7 tooth)
37. SP74048 Vane Set
38. SDR-11 Rear End Plate
39. SDR-26 Ball Bearing (2)*
40. SDR-82 Rapid Reverse Insert
41. 69007 O-ring
42. SDR-81 Straight Reversing Housing
43. SDR-84 Reversing Spring
44. SDR-83 Reverse Valve Spool
45. SDR-88 Top Reverse Button
46. SDR-85 Top Reverse Nut
47. SDR-86 Top Reverse Cap
48. 74018 Torr Pin, 3/16 X 7/8
49. 67793 O-ring
50. 14290 O-ring
51. 74013 Regulator
52. 06402 Screw, 6-32 X 3/4 Set Soc Hex
53. 74103 Cover
54. SDR-5 Lever
55. 74020 Knurl Pin
56. 74016 Muffler
57. 74017 Exhaust Deflector
58. 74008 Throttle Valve Seat
59. 74009 Throttle Valve
60. 74010 Taper Spring
61. 74011 Screen
62. 14281B O-ring, 1/16 X 5/8 X 3/4
63. 74012 Inlet Bushing
*Order Quantity As Required
FURNISH CATALOG, SERIAL, AND
MODEL NUMBER
WHEN ORDERING PARTS
