29 ZCE818 Date 2014October8/B
*Order Quantity As Required
FURNISH CATALOG, SERIAL, AND
MODEL NUMBER
WHEN ORDERING PARTS
Fig. Part
No. No. Description Fig. Part
No. No. Description

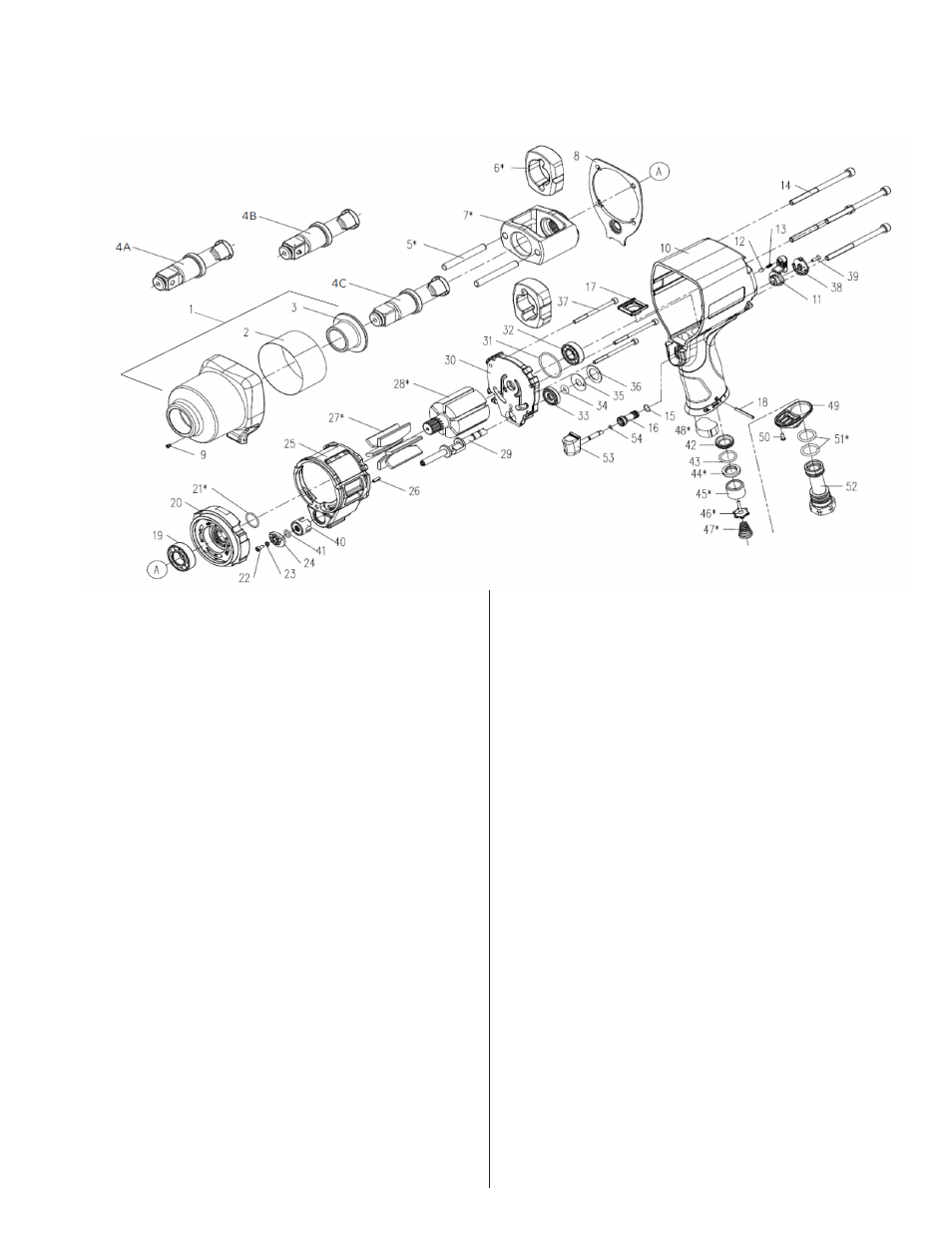

PARTS LIST FOR PARTS LIST FOR
IW750MP SERIES
PISTOL GRIP IMPACT DRIVERS
SERIAL“A”
1. 74970 Hammer Case (Assembly includes 1, 2, 3 and 9)
2. Steel Ring
3. Hammer Case Bushing
4A. MG1250P12 3/4" Pin Anvil (Thru Hole)
4B. 74950A Anvil Assy (Pin Detent) (includes 4B.1 - 4B.3)
74950 3/4" Pin Anvil (Detent)
IM5100P-26 Locking Button
74960 Spring Pin, M2 x 16
ME1A238 Spring, Comp
4C .MG1250-12R Anvil Assy (Friction Ring) (includes 4C.1 - 4C.3)
MG1250-12 Anvil
ME7B44 O-Ring .424" ID x .103"
ME7A136 Anvil Steel Ring 3/4"
5. MG1250-14 Pin (2)*
6. MG1250-13 Hammer (2)*
7. MG1250-11 Hammer Frame
8. 74976 Hammer Case Gasket
9. Hammer Case Grease Fitting
10. 74971-1 Housing
11. 74977 Regulator
12. 74978 Pin
13. 74979 Spring
14. 74980 Bolt W/Flat Washer (4)*
15. AT570-17 O-Ring .424" ID x .103"
16. AT670-12 Trigger Bushing
17. 74981 Seal
18. AT670-14 Spring Pin
19. AT670-15 Ball Bearing
20. AT670-16 Front End Plate
21. AT670-17 O-Ring
22. 74982 Screw Assembly
23. AT570-34 Flat Washer
24. 74983 Reverse Valve A
74973 Cylinder Assembly (includes 25 & 26)
25. Cylinder Unit
26. Spiral Pins
27. MG1200-50 Vanes (6)*
28. MG1250-6 Rotor
29. 74984 Reverse Valve
30. AT670-23 Rear End Plate
31. AT670-24 O-Ring
32. AT670-25 Ball Bearing
33. 74985 Latch Spring Bushing
34. 74986 O-Ring
35. 74987 Flat Washer
36. 74988 Seal
37. 74989 Motor Screw (3)*
38. 74990 Reverse Valve B
39. 74991 Screw - RV
40. 74992 Latch Spring Bushing
41. 74993 O-Ring
42. AT670-31 Insert Bushing
43. AT670-32 O-Ring
44. AT670-33 Seal Unit
45. AT670-34 Bushing
46. AT670-35 Tip Valve
47. AT670-36 Spring
48. AT670-37 Muffler
49. AT670-38 Deflector
50. AT670-45 Tap Bolt
51. AT670-39 O-Ring (2)*
52. AT670-40 Air Inlet
74975 Trigger Assembly (includes 53 & 54)
53. Trigger Unit
54. O-Ring
Not Shown:
74930 Warning Label
