340i Integrated Amplifier
____________________________________________________________________________________
10
When you select one of the digital inputs as
described in the aforementioned section, the display
window will show which of the four digital inputs is
selected. At the same time, the right side of the
display window will initially show four dashes as
follows “----” which indicate that the 340i is in the
process of locking onto the external digital signal –
this may take several seconds. When the 340i
successfully locks onto the digital signal, the four
dashes will be replaced by the sampling rate of this
digital signal. When the signal cannot be locked
onto, “----” remains in the display window. The
optional digital-to-analog circuit option inside the
Nēo 340i is capable of processing the following
sampling rates: 32.0kHz, 44.1kHz, 48.0 kHz,
88.2kHz, 96 kHz, 176.4kHz and 192kHz.
Optional Phono Section
The Nēo 340i Integrated Amplifier features an
optional MC/MM phono section that may be installed
only by your MOON Authorized Dealer or at the
Simaudio factory. This phono card is a very high
quality design, providing adjustments for both
capacitance and resisitance loading, as well as gain
level. This flexibility allows you to optimize the 340i
for a wide variety of MC and MM cartridges.

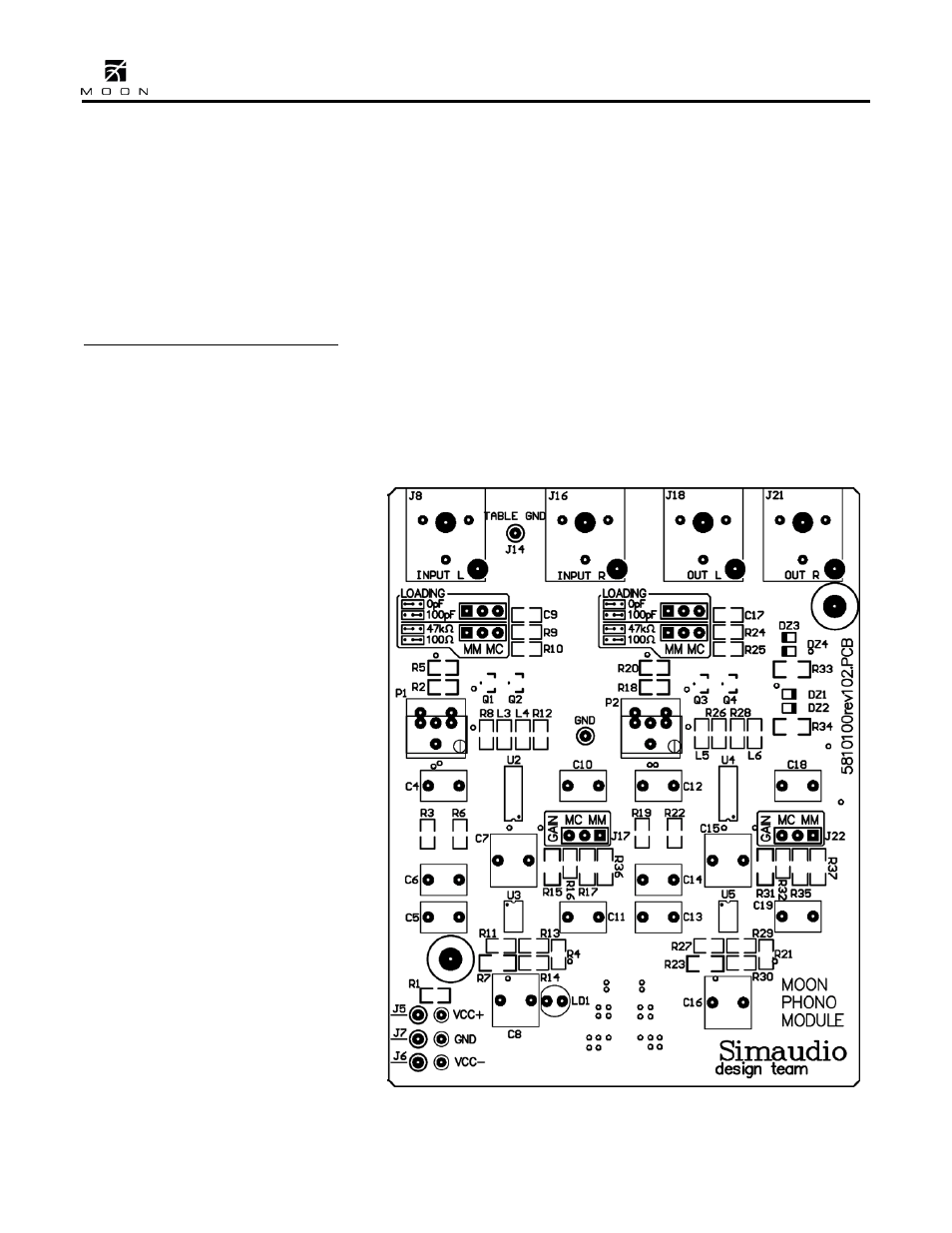

Circuit Board Layout:
Figure 3: Nēo 340i Optional Phono Section Circuit Board Layout
