P.7 RTA-S07

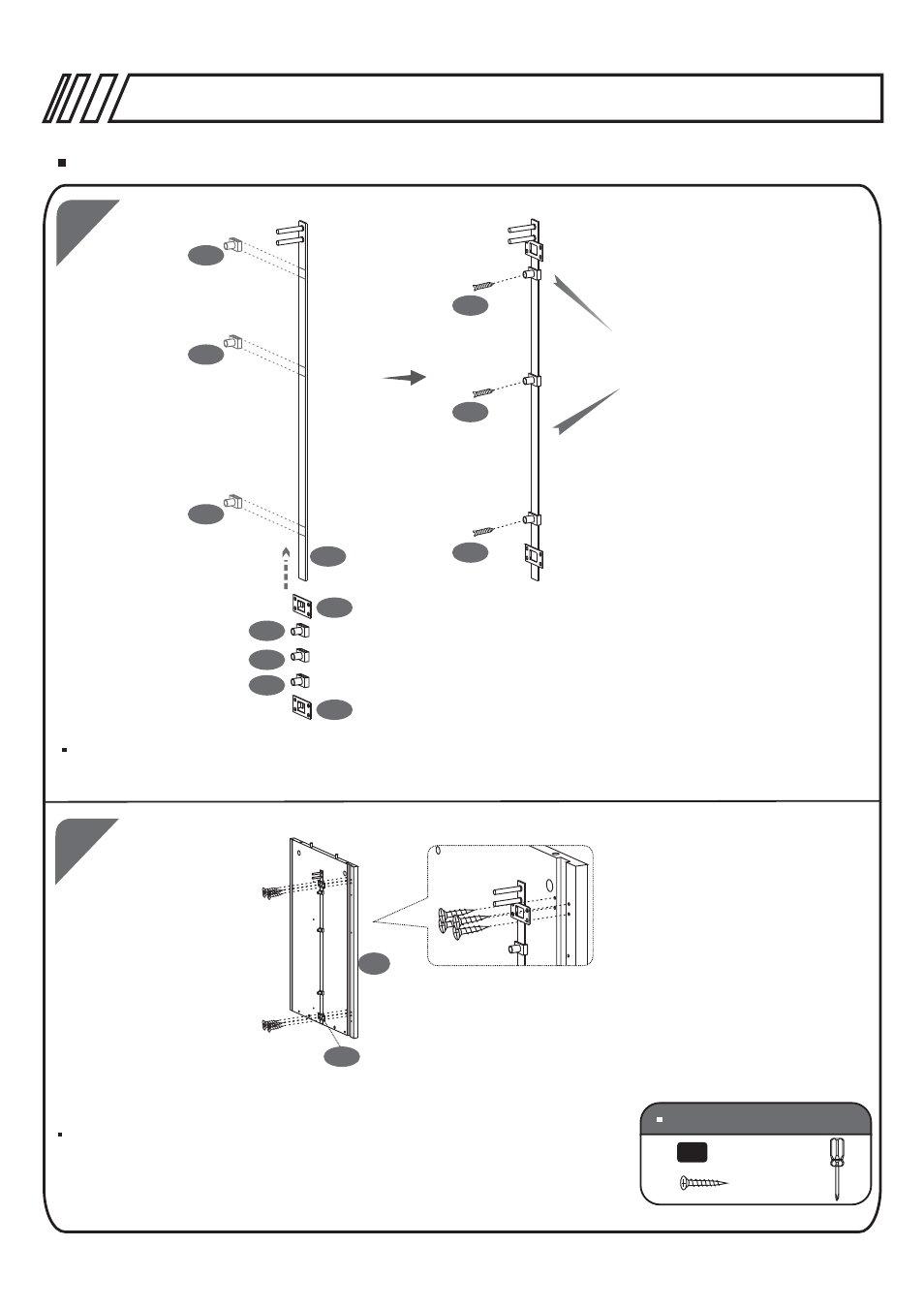

ASSEMBLY STEPS:
1
Tighten the metal plates
on the marked position
of the metal bar
22C
22C
22C
22C
22A
22A
22F
22F
22E
22C
22C
22F
Insert the metal fittings into the bar (22E) in the following order: (22A)x1, (22C)x3, (22A)x1. Then tighten
the (22C) on the marked positions of the bar (22E).
15
22A
SCREWS
C
8PCS
3X15 MM
2
X2
Place the bar (22E) inside the channel of Right panel (15) with the tubes
towards the top of the panel, and secure the fittings (22A) to the panel using
Screws (C).
