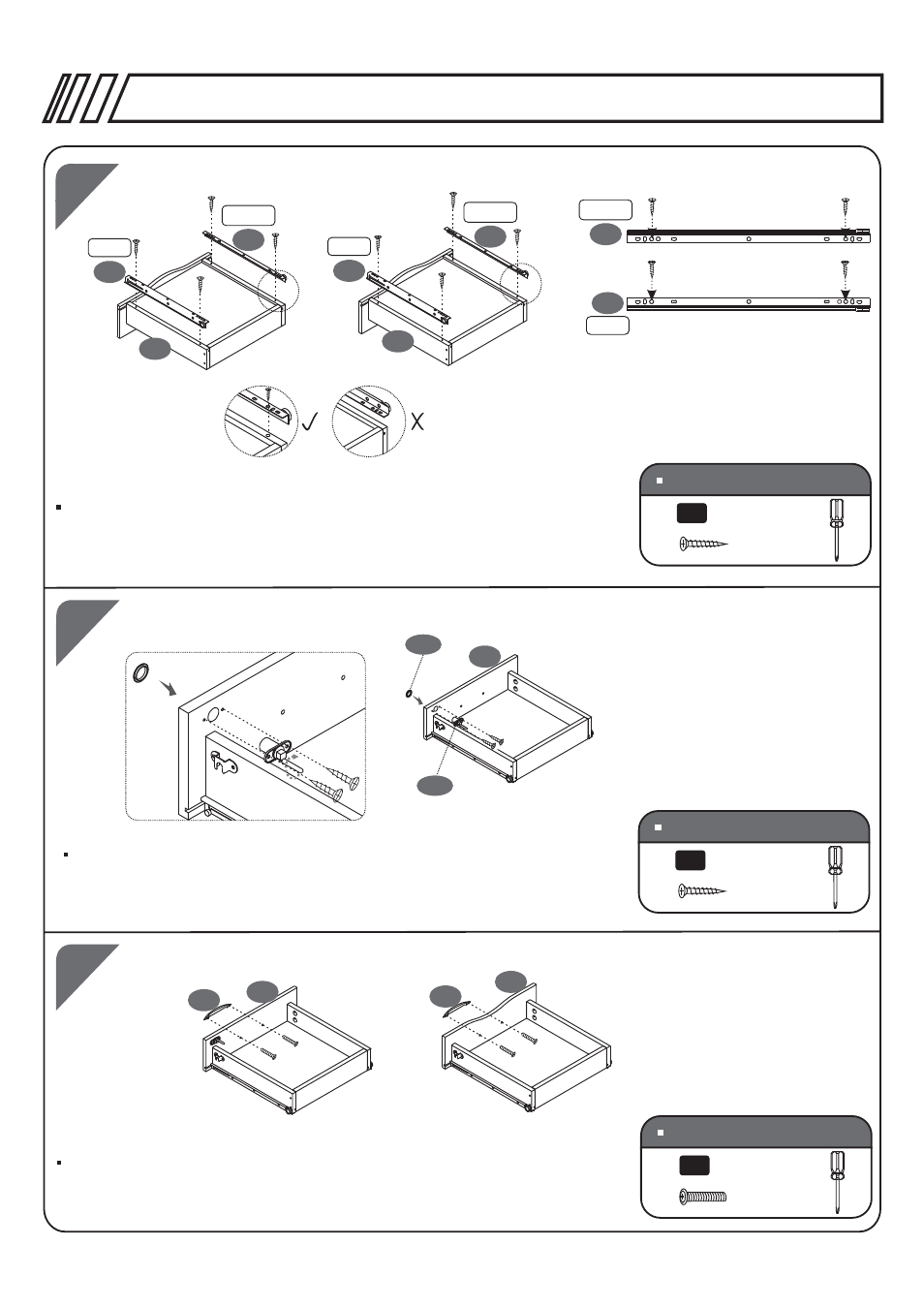

Place the small drawers upside-down. Grab the “L” shaped sliders (12) and
assemble them to the drawers using Screws (C), with the wheels facing
towards the back of the drawers. Make sure the sliders are touching the side
panels, and that they are not “up in the air”.
Assemble the lock (22D) and ring (22G) to the Top Drawer Front Panel (4)
using Screws (C).
IMPORTANT: The rod on the lock MUST face down, and the lock MUST turn
counter-clockwise with the key.
SCREWS
4X20 MM D
4PCS
14
4
21
13
13
Assemble the Handles (13) to the small drawers using Screws (D) as shown.
