ROHO JetStream Pr System - Manual (Page 7)

6
Operations Manual - instructions on JetStream Pro use and installation.
Privacy Flap - polyester material bridges gap between JetStream Pro Back and
wheelchair seat
Lumbar Support Pad - foam pad provides added support to lumbar region.
Reducer - for more secure fit with Standard JetStream Pro Backs on 3/4" (1.9 cm)
back posts.
(Qty. 2) 7/8" (2.2 cm) available upon request.
Allen Wrench - 5mm Allen wrench for adjusting cap piece screws.
Contoured Foam Pad - provides cushioning between user and carbon fiber shell.
Breathable Cover - covers contoured foam pad and attaches to the carbon fiber
shell with Velcro®.
Carbon Fiber Shell - attaches to the backrest clamps through the adjustable
bracket.
Nut - attaches adjustable brackets to the carbon fiber shell. Use a 10mm wrench*
and the 5mm Allen wrench on opposing side
(qty 4)
.
Hex Head Bolt - attaches adjustable brackets to backrest clamps (qty 4) . Requires
10mm wrench*
Adjustable Bracket Clamp - connects adjustable brackets to wheelchair back posts
(qty 4) .
Cap Piece - secures Adjustable Bracket Clamp to back posts (qty 4) .
Cap Piece Screw - screw fastens bracket clamp on wheelchair back post
(qty 4).
Adjustable Bracket - attaches to carbon fiber shell and backrest clamps
(qty 2)
Product Registration Card - Complete card and mail to ROHO or register online at
www.therohogroup.com.
* Additional Tools Needed for Assembly: 10 mm wrench
A.
B.
C.
D.
E.
F.
G.
H.
I.
J.
K.
L.
M.
N.
O.

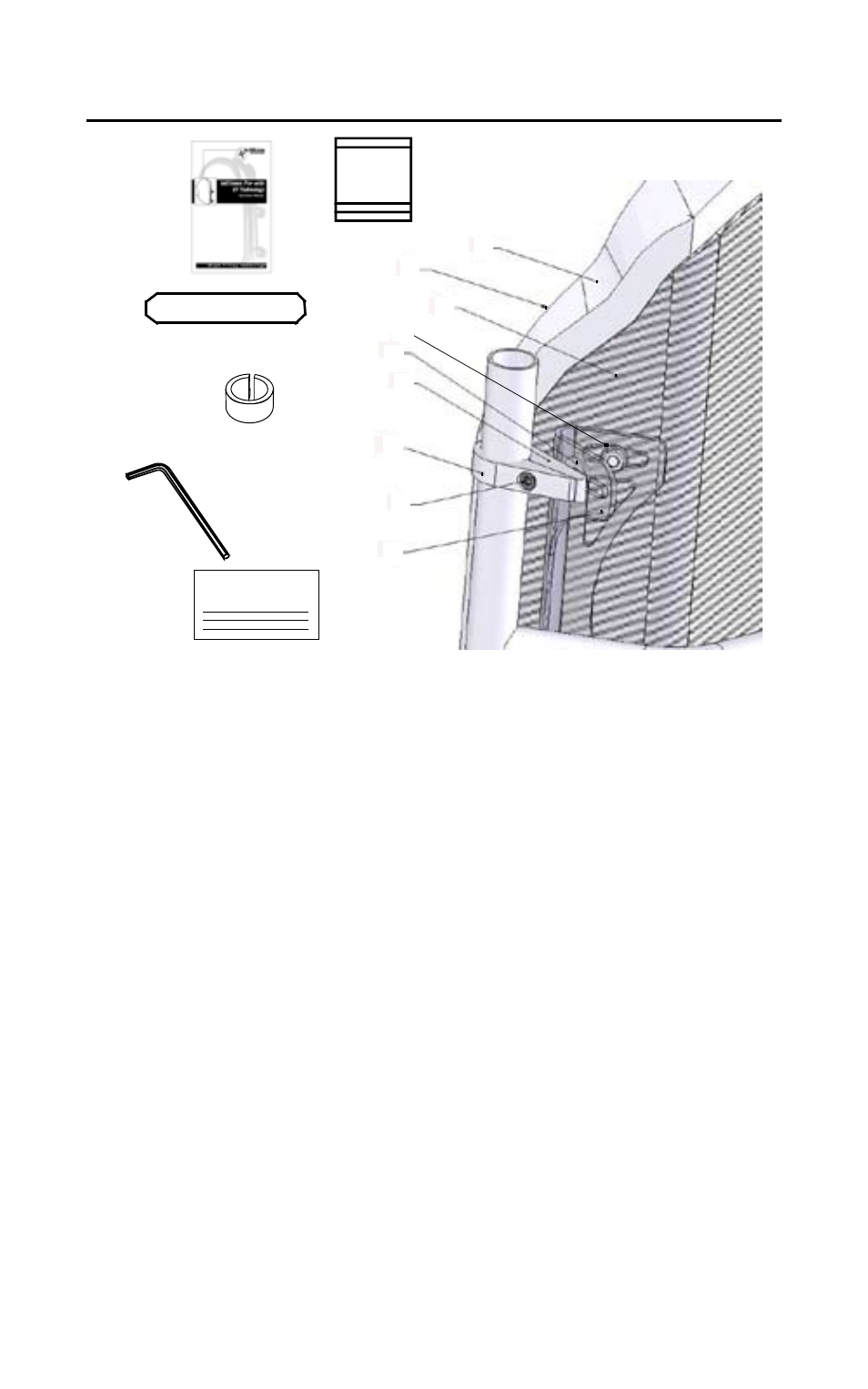

JetStream Pro Adjustable Back Standard and Low Height Parts Detail
&
'
(
*
+
,
)
-
.
F
G
H
I
J
K
L
M
N
A
D
E
B
C
O
Product
Registration Card
