Remy 29MT GEAR REDUCTION HEAVY DUTY STARTING MOTORS User Manual

Page 2

NOTICE

- Only licensed Remy International, Inc. product and component parts should be used, and the use of other parts or modifications not approved

by Remy International, Inc. will void all applicable warranties. The failure to carefully follow these Installation Instructions, set forth above, will void all
applicable warranties. DELCO REMY is a registered trademark of General Motors Corporation, licensed to Remy International, Inc. Pendleton, IN 46064.
©

Technical support: USA 800 854 0076, Mexico 01 800 000 7378, Brazil 0800 703 3526, South America 55 11 2106 6510 or visit
delcoremy.com

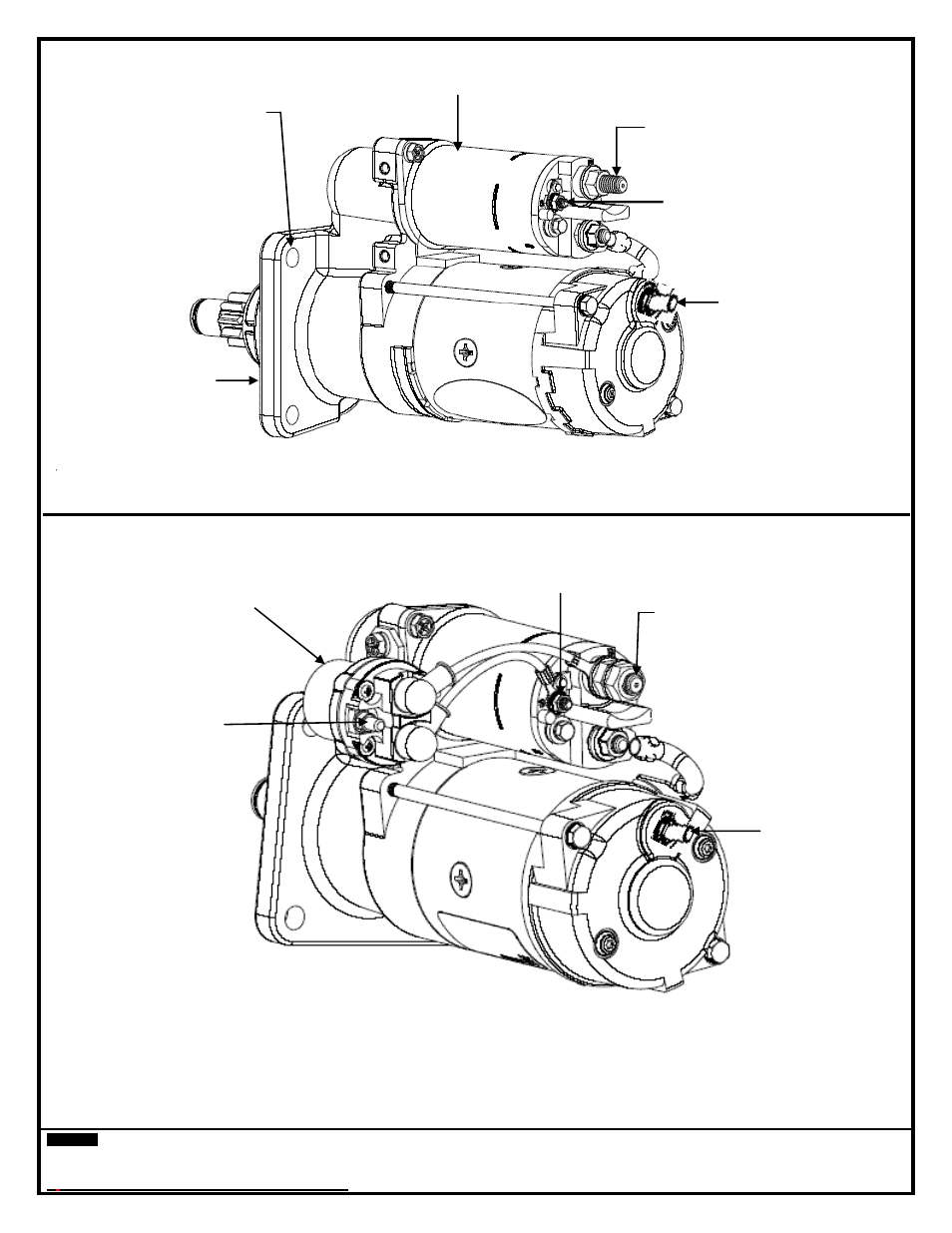

FIGURE 2

– MAGNETIC SWITCH (RELAY) ATTACHED

FIGURE 1

MAGNETIC SWITCH
(RELAY)

SWITCH TERMINAL
1.9-2.5 Nm (17-22 lb in)

BATTERY (+) TERMINAL
14.7-17.7 Nm (11-13 lb ft)

MOUNTING FLANGE

HOLES (3)

BATTERY (+) TERMINAL
14.7-17.7 Nm (11-13 lb ft)

SOLENOID SWITCH

SWITCH TERMINAL
2.0-2.25 Nm (18-20 lb in)

NOSE LESS DRIVE
HOUSING

GROUND
TERMINAL
(Optional)
14.7-17.7 Nm
(11-13 lb ft)

GROUND
TERMINAL
(Optional)

14.7-17.7 Nm

(11-13 lb ft)

SWITCH TERMINAL

2.0-2.25 Nm (18-20 lb in)

This manual is related to the following products:

28MT GEAR REDUCTION HEAVY DUTY STARTING MOTORS
