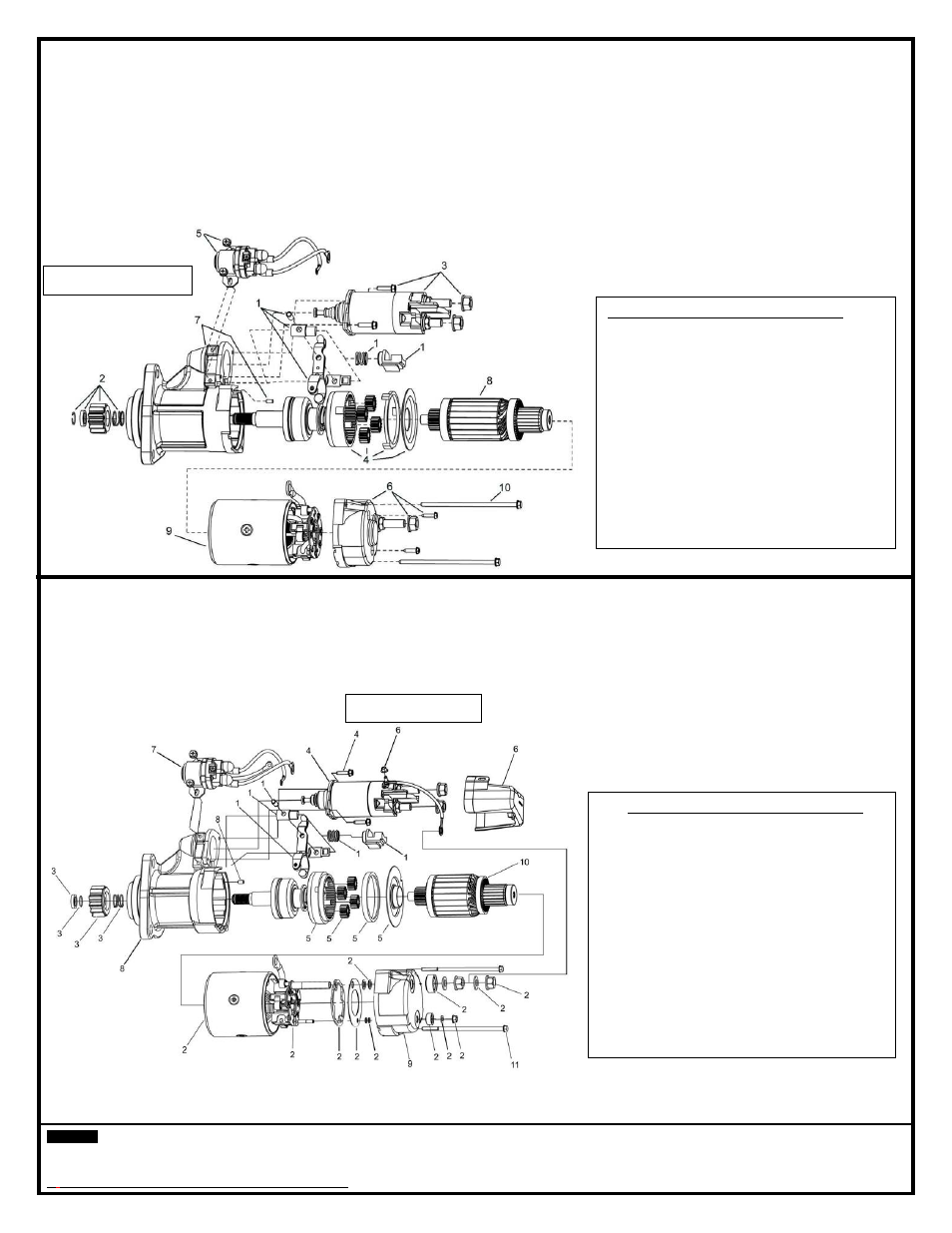

38MT STARTER

38MT SERVICE PARTS PACKAGES

1. LEVER

2. PINION
3. SOLENOID ASSEMBLY
4. DRIVE SHAFT ASSEMBLY
(WITHOUT PINION)
5. INTEGRAL MAGNETIC SWITCH (IMS)
6. CE HOUSING
7. DRIVE HOUSING (NOSE)
8. ARMATURE ASSEMBLY
9. BRUSH & FRAME ASM.
10. THRU BOLTS

HARDWARE PACKAGE MAY BE
NECESSARY

39MT SERVICE PARTS PACKAGES

1. LEVER
2. BRUSH & FRAME
3. PINION
4. SOLENOID ASSEMBLY
5. DRIVE SHAFT ASSEMBLY
6. JUMP START PROTECTION (JSP)
7. INTEGRAL MAGNETIC SWITCH

(IMS)

8. DRIVE HOUSING (NOSE)
9. CE HOUSING
10. ARMATURE ASSEMBLY
11. THRU BOLTS

HARDWARE PACKAGE MAY BE
NECESSARY

39MT STARTER
