10

degrees uphill to prevent downhill movement of the Turbo Chute

during use.

The Inflatable Start Mat should be at the top of the hill and the last

section to be attached to the slide and staked down.

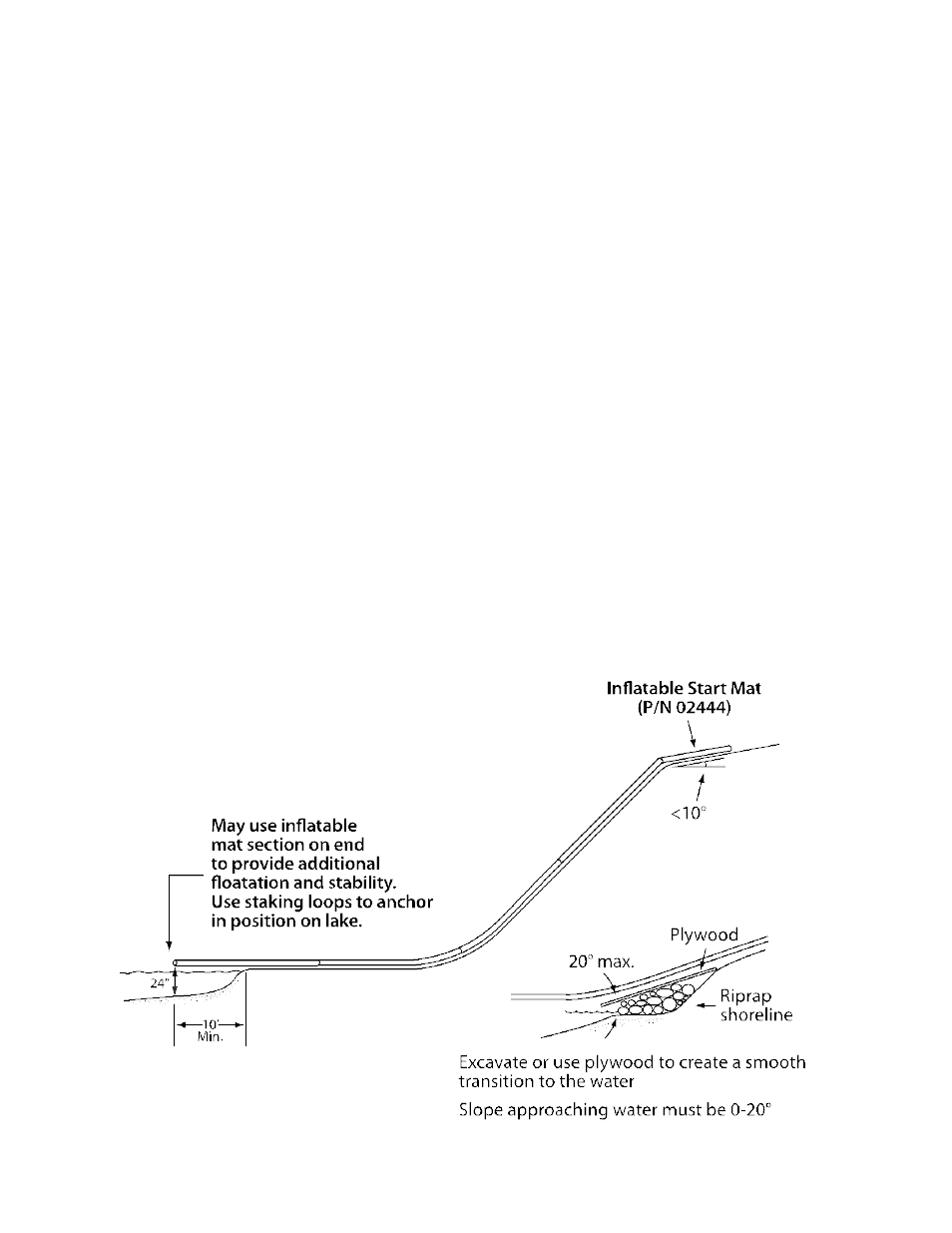

To correctly position your slide:

1. Output end of slide must extend at least 10 feet out from the

waters edge (shoreline) and be floating.

2. Water depth at the end of the slide should be a minimum of 24

inches deep and should be free of rocks and other obstructions.

3. The Inflatable Start Mat should be situated at the beginning of

the slide, on a level or slightly downward sloping surface of no

more than 10 degrees in slope.

4. Ensure there is a smooth transition from land to water.

Excavate, use fill sand or other means of creating this smooth

transition.

5.

Add additional Turbo Chute sections if slide is too short to meet

the criteria above.
