9

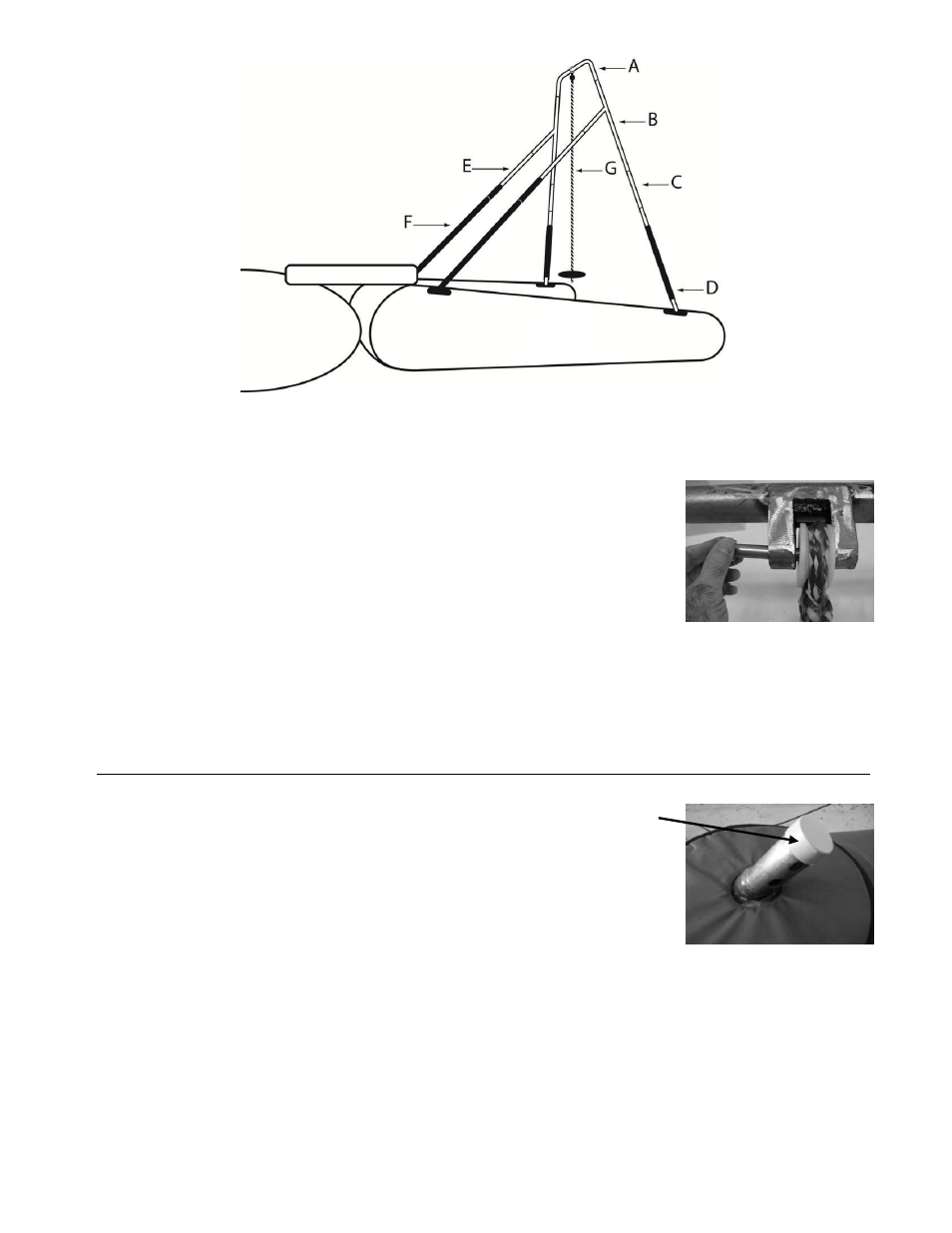

Illustration of frame pieces assembled.
While the frame is still lying on the ground, attach
the rope assembly (G) to the pivot mount on the
bottom of frame section A. Insert the bolt through
the center of the nylon bearing. Attach lock washer
and nut to end of bolt and tighten securely.
Tighten all frame bolts securely using the M6 hex wrenches provided.
Step 5: Carry tube to water
Remove protective caps from frame posts.
Retain these caps for use later during deflation and
off-season storage of the Rope Swing.
NOTE: Make sure the protective pad remains in
place and covers the base plate of the frame posts.
Carry, DO NOT DRAG, base tube to the water’s edge.
