RODE Microphones NT6 - Manual (Page 10)

- 10 -
Using the NT6
• The NT6 is a phantom powered microphone. To
operate correctly it requires a 24V or 48V phantom
supply from the mixing console or other source.
• It is recommended that you use a high-quality
microphone lead from the preamp body to the
recording device or mixing console, and keep it
as short as practical for your application. This will
ensure the highest quality sound reproduction.
• Please ensure all cable connections are secure
before applying power to the microphone, and
allow a few moments for the microphone to
stabilise after the power is turned on.

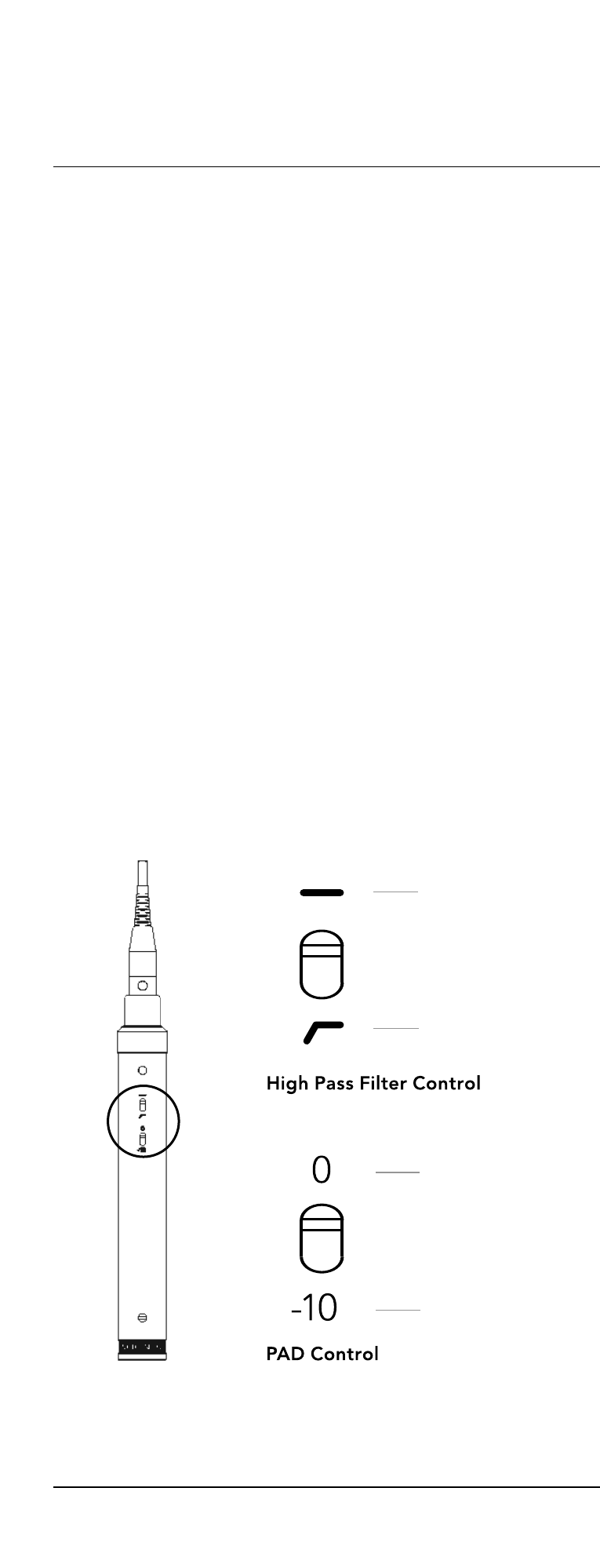

• The pre-amplifi er (body) incorporates two switches
for varying both the low end frequency response
(HPF) and sensitivity (PAD).
Flat
80Hz
0 dB
-10 dB
