2 • Meet the DM800i™ Series Digital Series Mailing System
2 - 6 SV61162 Rev. D
Parts of the
Mailing System This section describes the parts of your DM800i™ Series System and
includes:
• The Mailing System Exterior, including the Weigh-On-The-Way®
(WOW®) Module
• The Mailing System Interior
• The IntelliLink
® Control Center
• The Main Screen
Mailing System
Exterior IntelliLink® Control Center
- This contains the screen and keypad
for communicating with the mailing machine and the built-in post-
age meter (Postal Security Device).
Feed Cover
- Protect moving parts and prevent foreign objects
from entering the machine. The feed cover protects the feeder.
WOW (Weigh-On-The-Way®) Cover
- Protects the WOW® trans-
port area on the DM Series™ systems that have the optional
Printer Cover
- protects the print head and ink cartridge compo-
nents.
Thickness Adjustment Knob
- You use this knob to adjust for the
thicknesses of the envelopes you are feeding into your mailing sys-
tem.
Platform Scale -
The 10 lb. integrated platform scale comes with
the DM800i™ Digital Mailing System.
On/Off switch
- Turns the mailing system on and off. This is
located on the lower left side of the feed deck
Feed Deck -
This is where you load the mail.
Side Guide
- Set this to reduce the skewing of pieces of mail as
you feed them into the feeder.
Transport Release Knob
- You pull this knob out to drop the lower
half of the transport deck if you need to clear a jam.

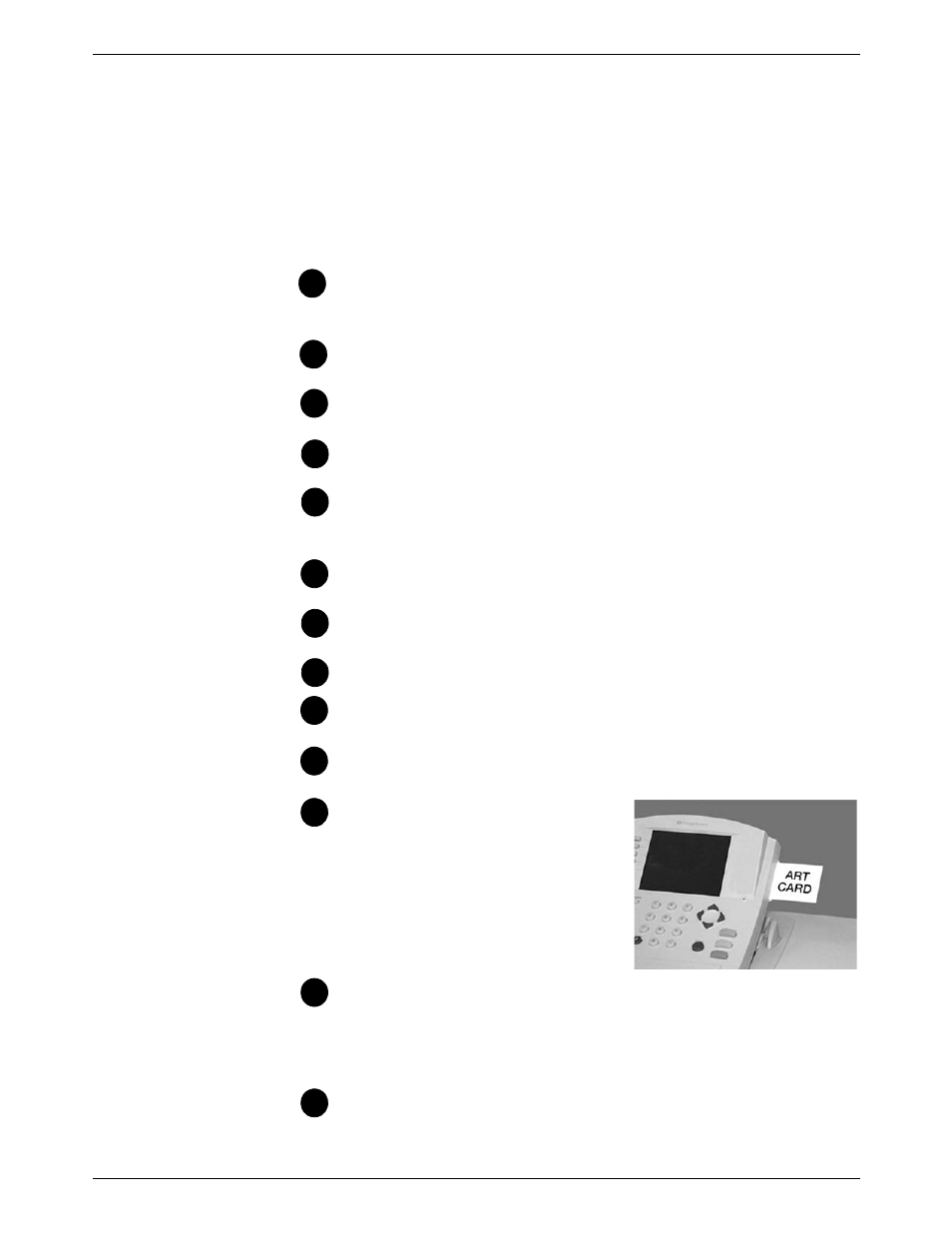

Art Card Slot
- The art card plugs
into the art card slot on the right
side of the IntelliLink® Control Cen-
ter (as shown in the photo on the
right). The art card contains adver-
tisements and inscriptions.
Quick Reference Card Set
- These
are easy reference cards containing instructions for performing
operations like how to set postage, process mail, or clear jams. The
cards are located in a slot in the stacker module of your mailing sys-
tem.
Stacker
- This is where mail is deposited after the postage is
applied to the piece of mail. It is located on the right side of the
machine. It may be a drop stacker, or an optional DJPS/DMPS
Power Stacker.
1
2
3
4
5
6
7
8
9
10
11
12
13
