Setting Up Your DIRECTV

Sat-Go

Connecting DIRECTV Sat-Go to a VCR, DVD player or PMP
(personal media player)

Depending on the connections on the back of your VCR or DVD player, you have the following
options:

•

Component Connection (Best Quality)

•

A/V Connection (Better Quality)

These connections are described on the following.

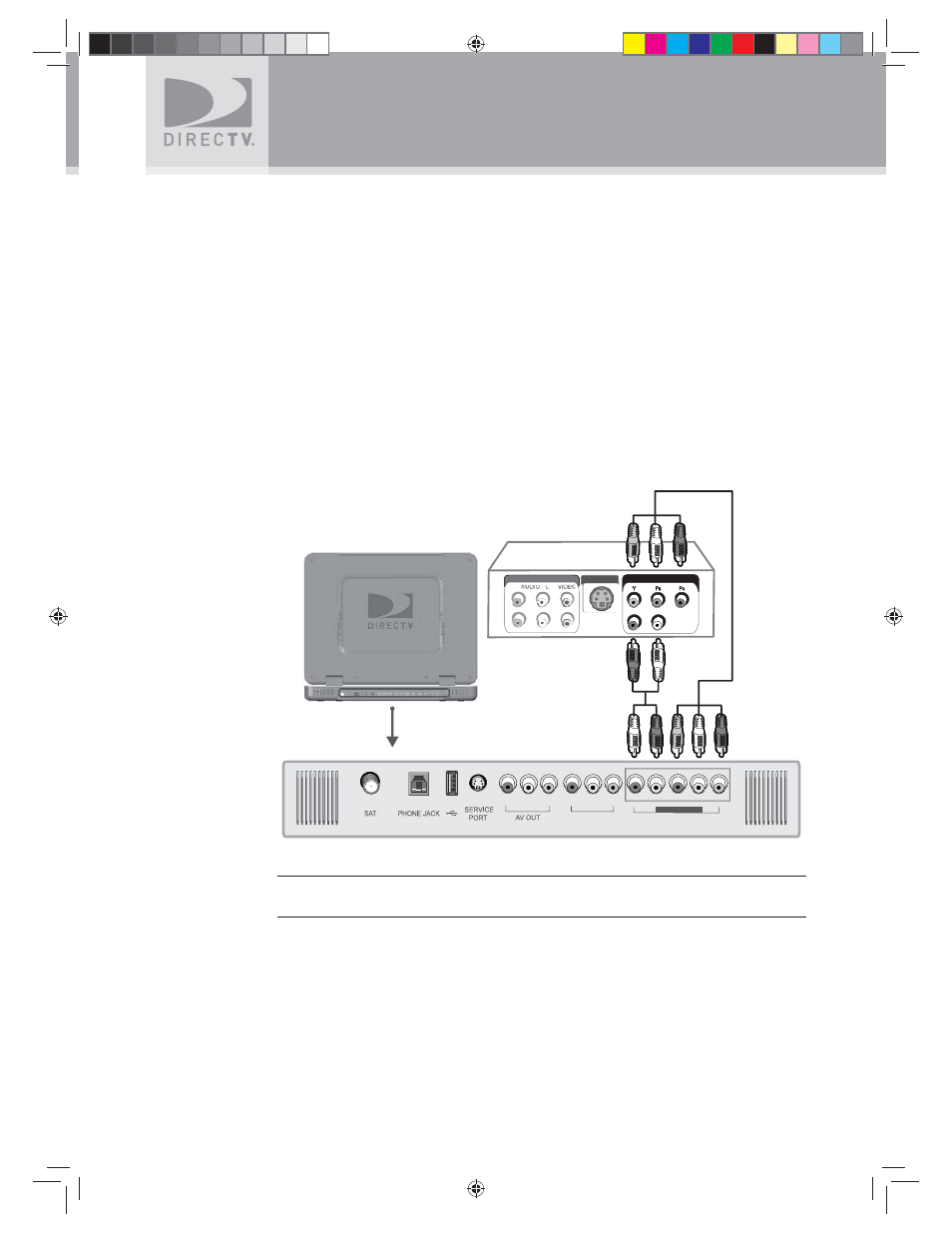

Component Connection (Best Quality)

1. Connect the Component video cable to the component video output jacks (Y/Pb/Pr) on the

VCR or DVD Player and to the component video input jacks (COMPONENT AV IN 2) on
the DIRECTV Sat-Go TV rear connector panel.

2. Connect the audio cable to the audio output jacks (L/R) on the VCR or DVD Player and to

the COMPONENT AV IN 2 jacks (L/R) on the DIRECTV Sat-Go TV rear connector panel.

UNIT IMAGE

COMPONENT OUT

LINE OUT

R -

R - AUDIO - L

S-VIDEO OUT

LINE OUT

AV IN 1

AV IN 2

COMPONENT

NOTE:

Depending on the manufacturer, the

Y/Pb/Pr

jacks may be identifi ed as

Y/PB/PR

Y/B-Y/R-Y

, or

Y/CB/CR
