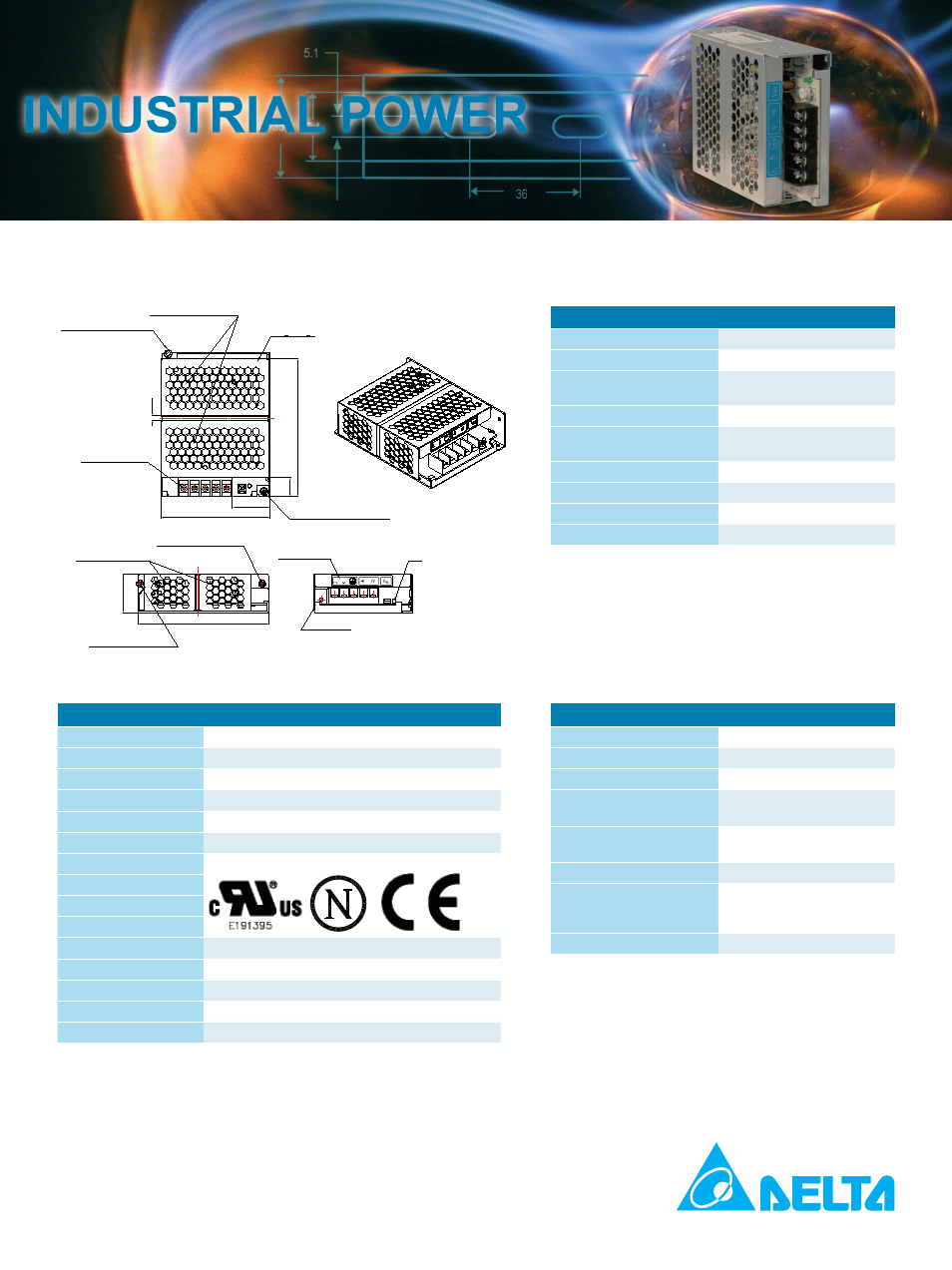

MECHANICAL DRAWINGS
MECHANICAL DESIGN
Dimensions (L x W x H) 128 mm x 97mm x 38mm
MTBF > 700,000 hrs.
Noise Sound pressure level (SPL)
< 40 dBA
Cooling Convection
Input / output terminal Terminal block 7 pin rated
300V/20A
Input / output wire AWG22-14
Shock test IEC 60068-2-27
Vibration IEC 68000-2-26
SAFETY / Approvals
EMC / Emissions FCC Title 47, Class B / EN55022; CISPR22, Class B
Immunity EN61000-4-3, 1998; EN61000-4-4, 1995
EN61000-4-5, 1995 IEC61000-4-6 1996;
EN61000-4-8; IEC61000-4-12 or IEEE C62.41;
Approvals UR / cUR recognized to UL60950-1 and CSA C22.2
No. 60950-1; CB test certificate and report to IEC60950-1;
CE (EMC and low voltage directive)
Voltage dips EN61000-4-11
Galvanic isolation Input to output: 3 KVac;
Input to ground: 1.5 KVac;
Output to ground: 500 Vac
ENVIRONMENTAL / Protection
Operating temperature -10°C to +70°C *
Storage temperature -25°C to +85°C
Humidity operation < 95% RH non condensing
Overvoltage protection < 32V, ± 10%, SELV output,
non-latching (auto recovery)
Overload protection > 120% of rated load current,
auto recovery (Hicc-up mode)
Overcurrent protection > 120% of the rated current
Note (*) * Operation to 70°C possible
with a linear derating to half
power from 50°C to 70°C
www.delta.com.tw/industrialautomation
December 09, 2008
Delta Electronics, Inc. (Taoyuan 1)
31-1, Xingbang Road, Guishan Industrial Zone,
Taoyuan County 33370, Taiwan, R.O.C.
Tel: 886-3-362-6301
Fax: 886-3-362-7267
Connector 5 pin
Area for screw head
Ø 7 mm
Hatched portion
Have 0.3 depression
Case cover
Area for screw head
Ø 7 mm
4.0
122.5
17.0
*97±0.5
(C)
33.6
L N
Case chassis
Area for screw head
Ø 7 mm
Hatched portion
Have 0.3 depression
Area for screw head
Ø 7 mm
Identify label LED
*128.0
(A)
*38±0.5 (B)
