Delta Electronics 1-phase 35W User Manual

Features

Features:

● Full Aluminium casing for lightweight and

corrosion resistant handling

● Universal AC input

● Overload protection

● Overvoltage protection

● Thermal protection

● MTBF: > 700,000 hrs

● Efficiency > 85% typ.

● Expected lifetime: 10 years

● 2 year warranty

● RoHS compliant

INPUT SPECIFICATIONS

Operating voltage range 85 - 264Vac; 100 - 375Vdc
Frequency

47 - 63Hz

Max. current

1.0A max. (0.72A max. @ 115Vac,

0.4A max. @ 230Vac)

Inrush current

< 30A @ 115Vac, 60A @ 230Vac

Efficiency

> 85% (typical)

Leakage current

< 1mA @ 240Vac

OUTPUT SPECIFICATIONS

Power

35W

Voltage

24Vdc

Tolerance

± 2.0%

Current

1.46A (35W max.)

Line regulation

< 0.5% typical

(@ 85 to 264Vac input, 100% load)

Load regulation

< 1% typical

(with rated input, 0 to 100% load)

PARD

< 150mVpp.

Rise time

< 30ms @ 100% load (25°C)

Start-up time

< 2500ms @ 100% load (25°C) and

typical line input

Hold-up time

> 15ms @ 115Vac, > 80ms @ 230 Vac

with 35W load (25°C)

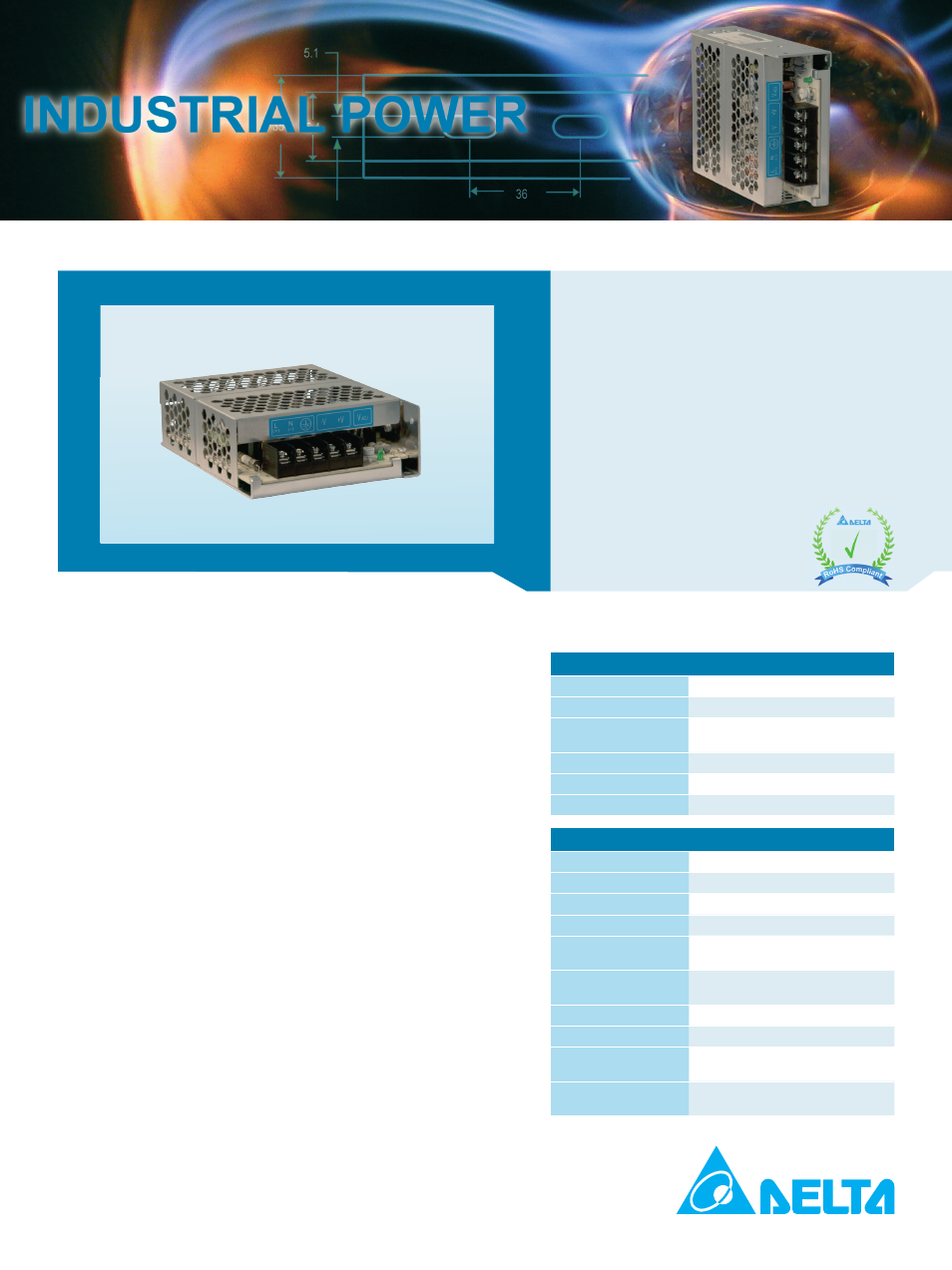

1-phase 35W Panel Mount Power Supply from Delta

The new Panel Mount Power Supply is the latest offering from

one of the world’s largest leading power supply manufacturers

and solution providers – Delta.

The product range offers a nominal output voltage of 24V, a

wide temperature range from 0°C to +70°C and a highly de-

pendable minimum holdup time. The state-of-the-art design is

made to withstand harsh industrial environments. The rugged,

ultra-compact metal case is shock and vibration resistant ac-

cording to IEC60068-2.

Delta’s panel mount power supply offers overvoltage and

overload protection. Using a wide input voltage range design,

it is usable worldwide. This also includes input DC operating

voltage from 100-375Vdc. Its output terminal type and loca-

tions are also thoughtfully designed for fast wiring and easy

installation.
