ParkZone PKZ5880 - Manual (Page 7)

EN

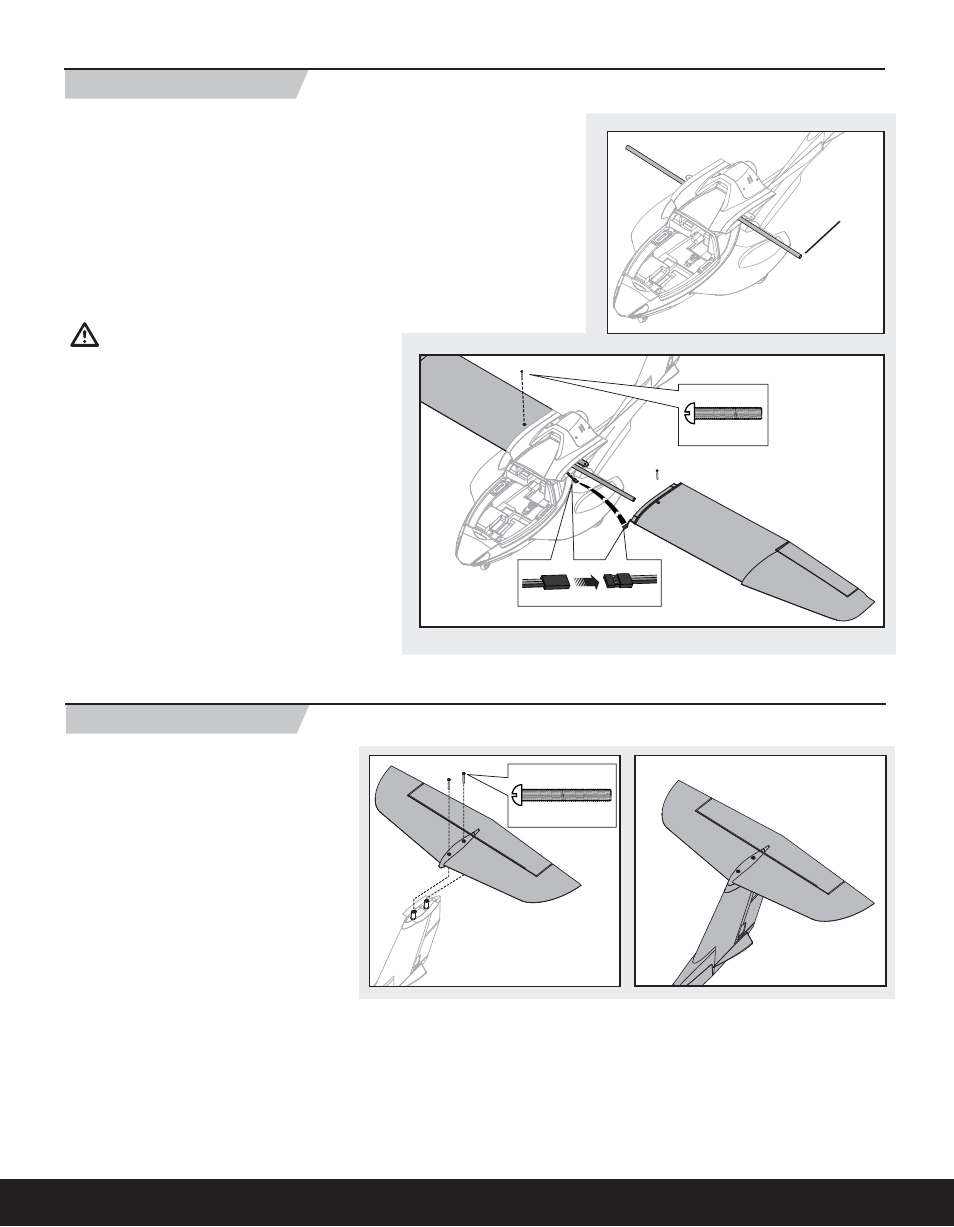

1. Put the wing tube (A) into the hole in the wing
slot of the fuselage.
2. Put the right wing on the wing tube.
3. Move the wing on the tube into the slot on the
fuselage while putting the aileron connector in
the fuselage.
4. Attach the two aileron connectors to the aileron
Y-harness at the root of each wing. Place extra
servo lead slack and servo connectors in the
small cavity in the root of the wing.
5. Fully install the right wing on the fuselage using
a screw (B).
6. Install the left wing using the steps above.
CAUTION: Do NOT crush or otherwise
damage wiring when attaching wing to fuselage.
7. Where needed, disassemble in reverse order.
3 X 16mm (2)
1. Install the horizontal tail on the fuselage using
the two screws (A).
2. Attach the clevis to the elevator control horn
(see instructions for clevis connection).
3. When needed, disassemble in reverse order.
Installing Wing
Installing Horizontal Tail
3 X 22mm (2)
A
B
A
7
