Palram SUNTO User Manual
Suntop
SUNTOP
®
107 / 27 (American 4.2)
Installation Guide
13.02.2006
1

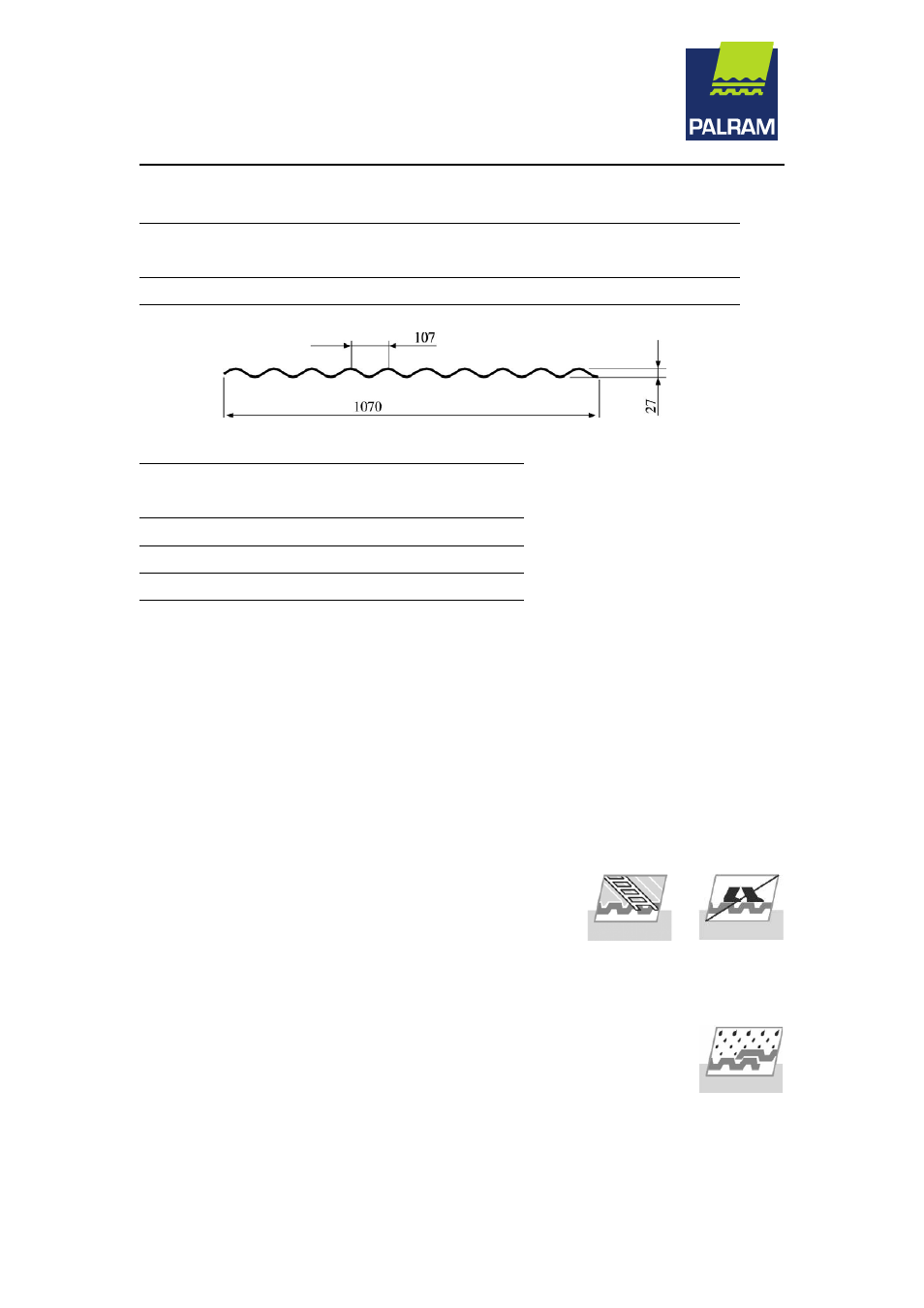

Profile Dimensions
Profile
(mm)
Thickness
(mm)
Length
(m)
Width
(mm)
Effective
Width (mm)
Side-Lap
(%)
107 / 27
2.0
1.5 - 11.6
1070
963
10
Load / Span Data
Load
(Kg/m
2
)
Maximum Roof Span (mm)
( mm)
50
1250
80
1100
110
1050
The dimensions depicted do not supersede the requirements of local construction codes.
Purlins spans are based on the panel’s structural properties, sheet deflection, potential wind and
snow load ,hail and other applicable factors according to construction practice, professional expertise
and previous field experience.
In vertical walls the spans can be increased by 10%.
Minimum recommended slope for a new roof – 10%.
Maximum recommended sheet length – 7.0 m.
Safety
Do not step directly on the sheets - before,
during or after installation.
Work according to local safety regulations.
Use stepping ladder or crawling boards.
Positioning
The sheets must be laid on the roof against the primary direction of wind
and rain.
The SUNTOP sheet must be installed without any stresses.
Do not pull, stretch or force the sheets when the profiles are not perfectly matched.
Always install with the UV protected side facing out.
