SUNTUF® Technical Guide
Profile: 107/27 (American 4.2)
©PALRAM Industries. All rights reserved.

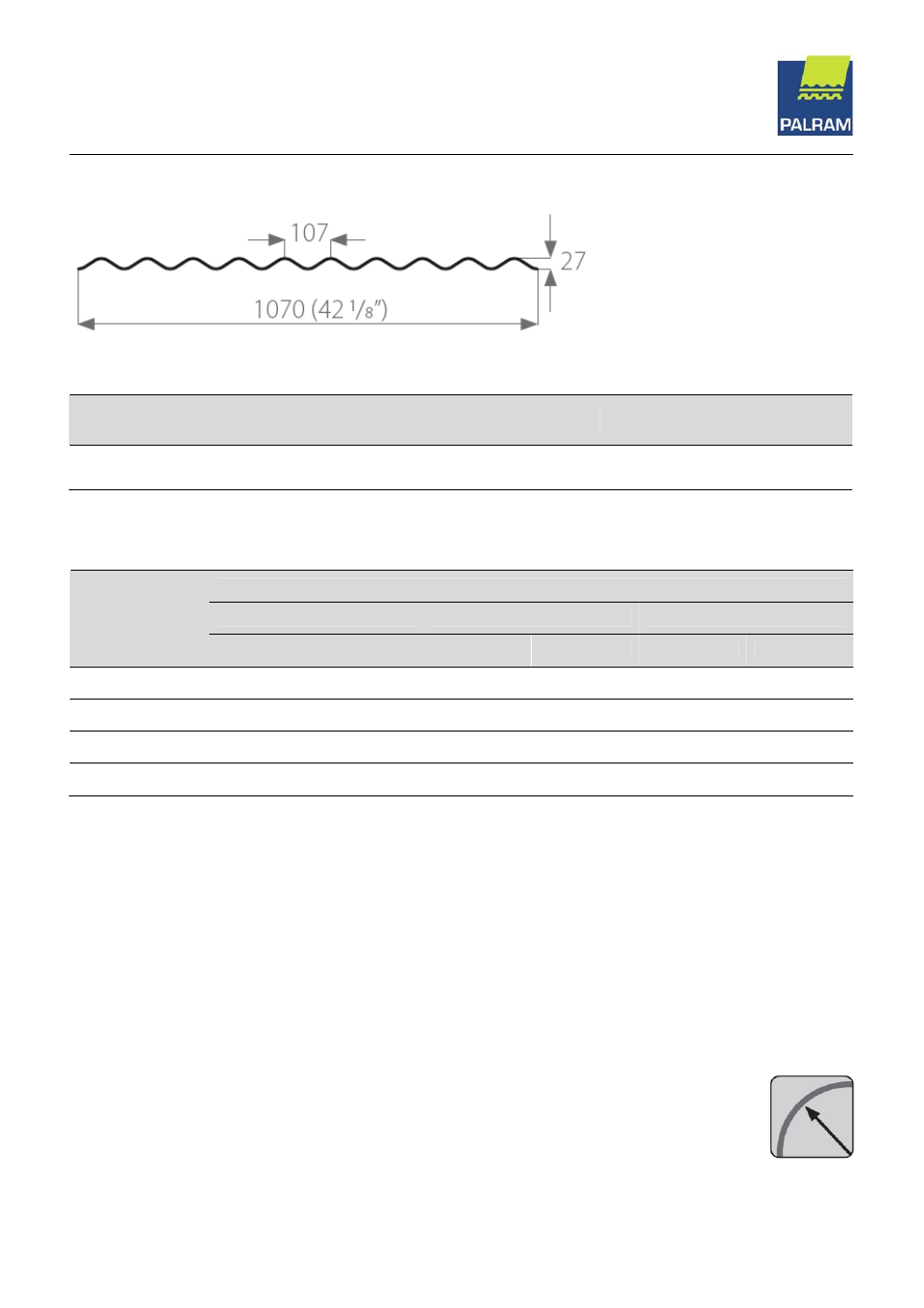

Profile Drawing
Profile Dimensions
Profile
(mm)
Thickness
(mm)
Length
(m)
Overall width
(mm)
Cover Width
(mm)
Side-Lap
( % )
107 / 27
0.8-1.5
1.5 - 11.8
1070
963
10
Load / Span Data
Maximum Roof Span (mm)
1.0 mm
1.2 mm
1.5 mm
Load
(kg/m²)
Mid Field
End Field
Mid Field
End Field
Mid Field
End Field
75
1250 940 1300 975 1350 1010
100
1150 860 1200 900 1250 940
125
1050 790 1100 825 1150 860
150
950 710 1000 750 1050 790
The dimensions specified do not supersede the requirements of local construction codes.
The maximum purlin spans are based on continuous beam calculation model and practical testing.
The criterion for allowed deflections is L/20.
For single span application use the end field column.
The mentioned load refers to both wind and snow loads and intended for rooflights only.
Minimum recommended slope – 10%.
Maximum recommended panel length - 7.0 m.
Curved Roof
Minimum curving radius 6.0 m.
