SUNTUF® 177 / 51 (5,6,waves)
Installation Guide
13/02/2006 1

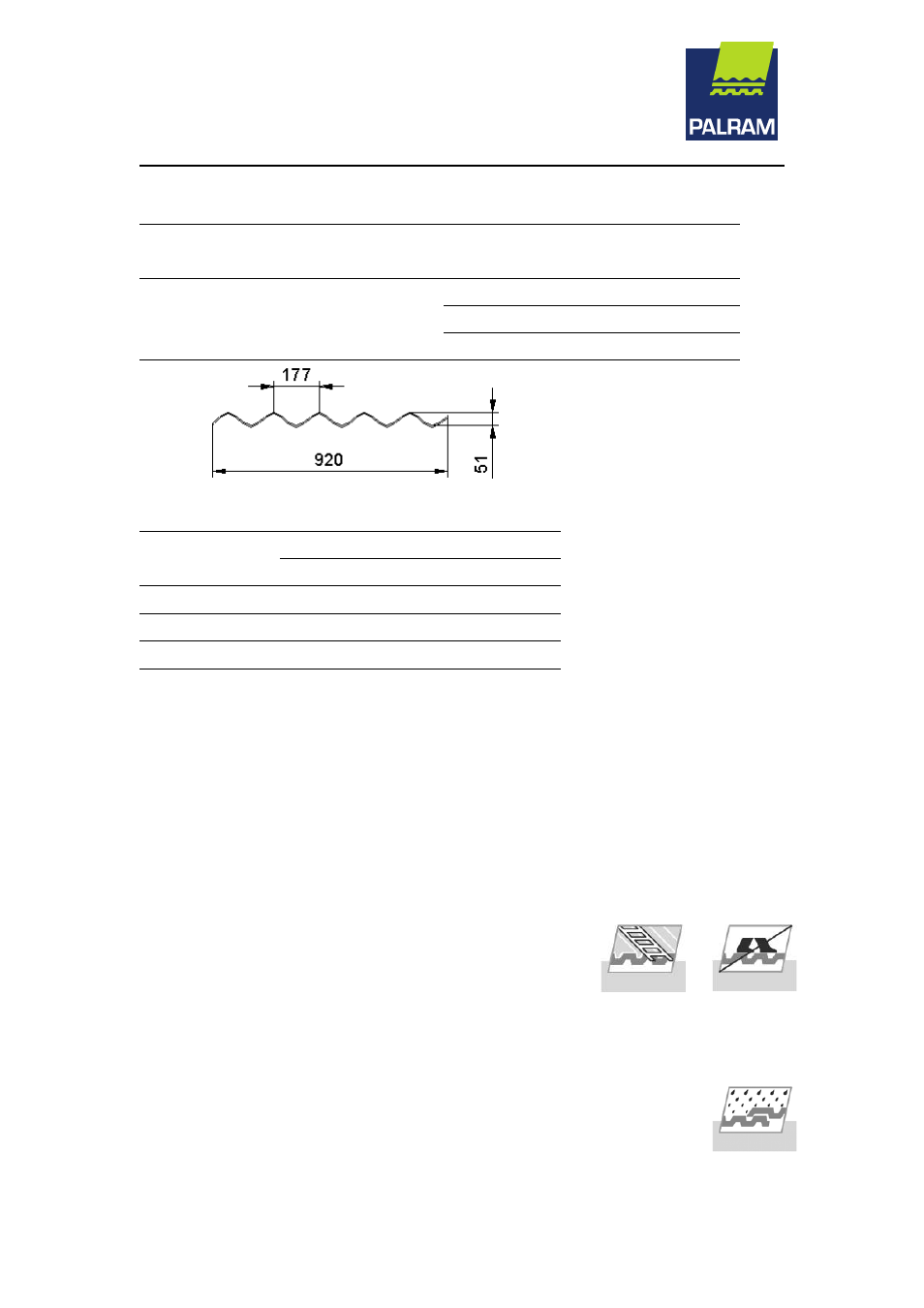

Profile Dimensions
Profile
(mm)
Thickness
(mm)
Length
(m)
Width
(mm)
Effective
Width (mm)
Side-Lap
(%)
920 885 3.8
1100 1062 3.4 177 / 51 1.0 – 1.5 1.5 - 11.6
1100 885 19.5
(1100)
Load / Span Data
Maximum Roof Span (mm) Load
(kg/m 2 ) 1.0 mm 1.5 mm
50 1250 1500
80 1200 1400
110 1150 1300
The dimensions depicted do not supersede the requirements of local construction codes.
Purlins spans are based on the panel’s structural properties, sheet deflection, potential wind and
snow load, hail and other applicable factors according to construction practice, professional
expertise and previous field experience.
In vertical walls, the spans can be increased by 10%.
Minimum recommended slope for a new roof – 10%.
Maximum recommended sheet length – 7.0 m.
Safety
Do not step directly on the sheets - before,
during or after installation.
Work according to local safety regulations.
Use stepping ladder or crawling boards.
Positioning
The sheets must be laid on the roof against the primary direction of wind
and rain.
The SUNTUF sheet must be installed without any stresses. Do not pull, stretch or
force the sheets when the profiles are not perfectly matched.
Always install with the UV protected side facing out.
