Palruf® technical guide profile: 0100 industrial

PALRUF® Technical Guide
Profile: 0100 Industrial
©PALRAM Industries. All rights reserved.

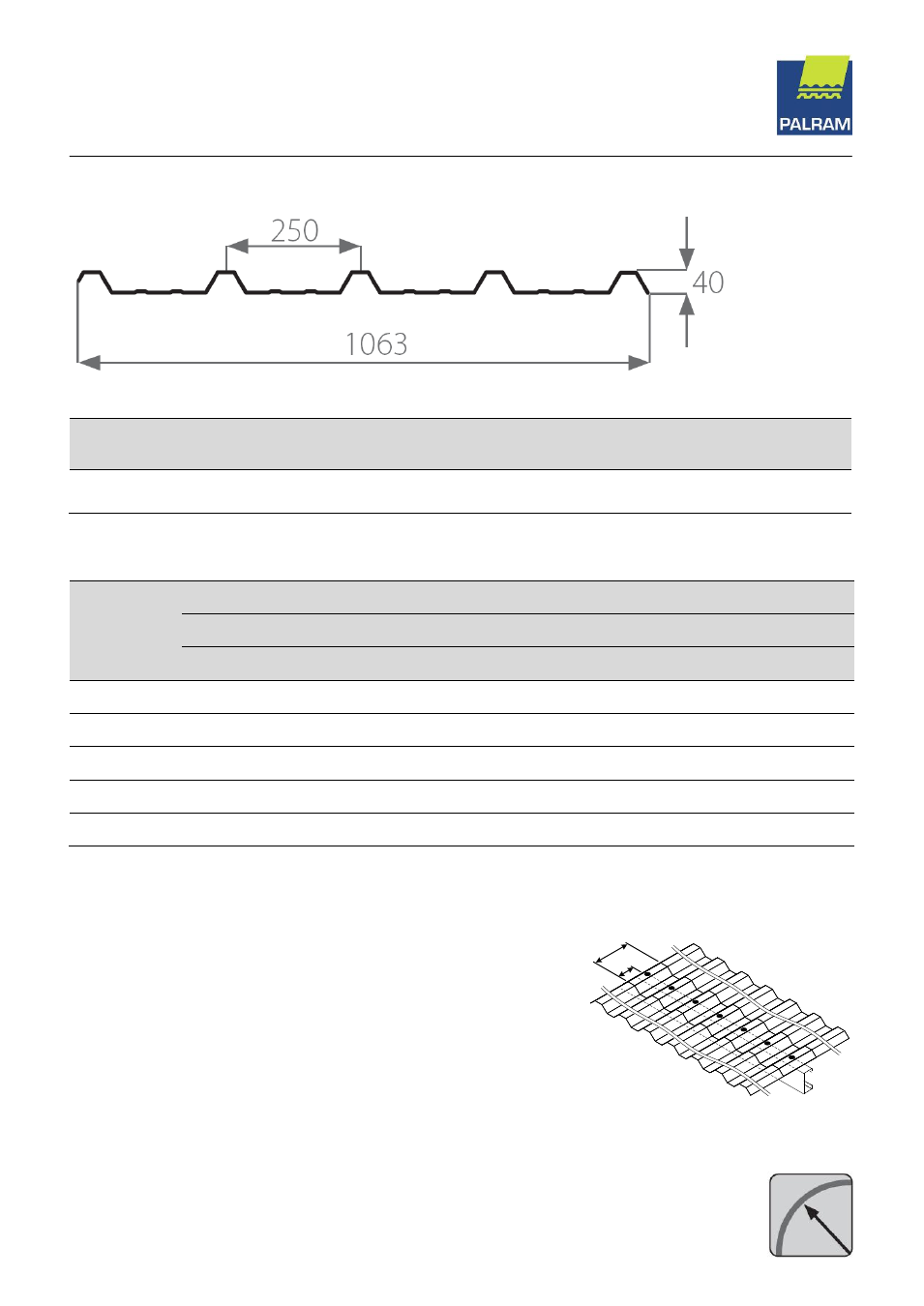

Profile Drawing
Profile Dimensions
Profile
(mm)
Thickness
(mm)
Length
(m)
Overall width
(mm)
Cover Width
(mm)
Side-Lap
( % )
250 / 40
2.0 – 3.0
1.5 - 11.6
1063
1000
5.9
Load / Span Data
Load
(kg/m²)
Maximum Roof Span (mm)
2.0 mm
2.5 mm
3.0 mm
Mid Field
End Field
Mid Field
End Field
Mid Field
End Field
50
1800
1350
1900
1430
2000
1500
75
1600
1200
1700
1280
1800
1350
100
1450
1090
1550
1160
1650
1240
125
1350
1010
1450
1090
1550
1160
150
1250
940
1350
1010
1450
1090
The specified dimensions do not supersede the requirements of local construction codes.
The maximum purlin spans are based on continuous beam calculation model and practical testing.
The criterion for allowed deflections is L/20.
The mentioned load refers to both wind and snow loads.
Minimum recommended slope – 10%.
For vertical application spans can be increased by 10%.
Panel Length
Maximum recommended panel length - 7.0 m.
Recommended longitude overlap of 200mm above purlin.
Each panel to extend 100mm over the fixings line on the purlin.
Panels should overhang Min. 50mm and Max. 150mm beyond the last fixings line.
Curved Roof
Minimum curving radius 20.0 m.
20
0
mm
10
0
mm
