11- ENG D26968
12. Slide axle through axle brackets. NOTE: The pallet will need to be
removed before the wheel can be assembled.
13. Lift generator and slide pallet and 2x4s out. NOTE: Generator will tilt.
14. Lift generator and slide spacer, then wheel (with valve stem to the outside)
onto axle.
15. Slide flat steel washer onto axle against wheel.
16. Secure with cotter pin.
BATTERY INSTALLATION
The generator is equipped with a maintenance free battery.
1.
For packaging purposes the black
negative battery cable and battery
were secured with wire ties. Cut
these wire ties.
2. Connect black negative cable to
negative (-) battery post. Tighten
securely. NOTE: Make sure rubber
boot is covering positive (+) battery
terminal.
NOTE: If battery needs to be charged,
follow these instructions.
When charging the
battery, do not smoke.
Keep away from any sparks. The
fumes from the battery acid can cause
an explosion. To prevent explosive
fumes from accumulating do not
charge in an enclosed area.
Sulfuric acid is a
flammable and
explosive chemical that is harmful to
the skin, eyes, and clothing.
To prevent sparks,
disconnect the black
battery cable from the negative (-)
terminal before disconnecting the red positive cable.
1. Remove black negative battery cable from the battery.
2. Remove red positive battery cable from the battery.
3. Use a portable 12 volt battery charger, if needed, to bring battery to full
charge (12.6 at 70ºF.). Refer to the battery charger’s operator’s manual for
the correct procedure. If a battery charger is not available, have an
authorized service center charge the battery.
4. Connect the battery cables.
To Prevent sparks connect the red (positive) cable to the
positive (+) terminal before connecting the black negative
cable.
When transporting unit over extremely rough terrain by
vehicle the battery should be secured.

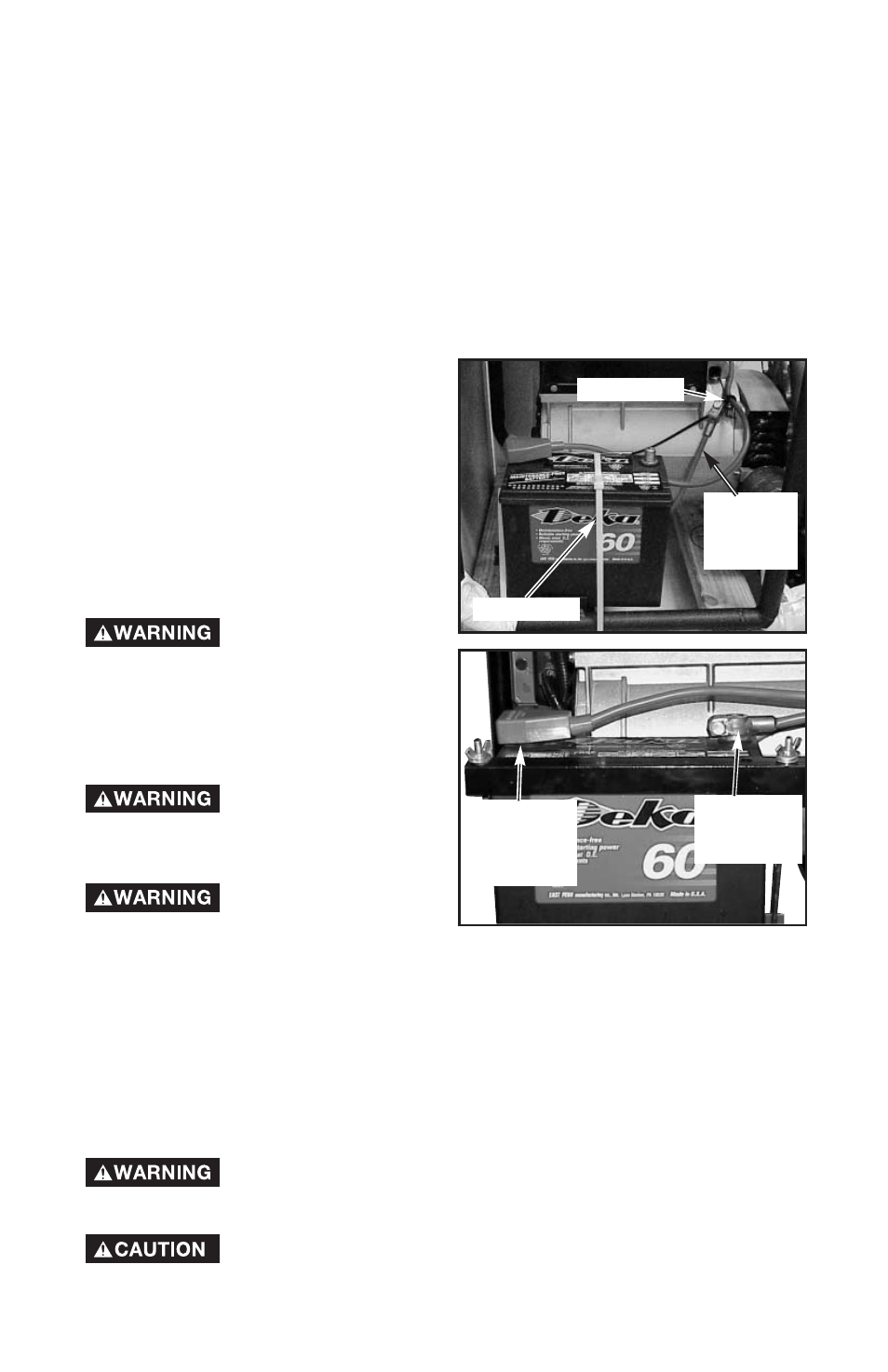

Positive
Battery
Cable with
rubber boot
Negative
Battery
Cable
Negative
Battery
Cable
Wire Tie
Wire Tie
