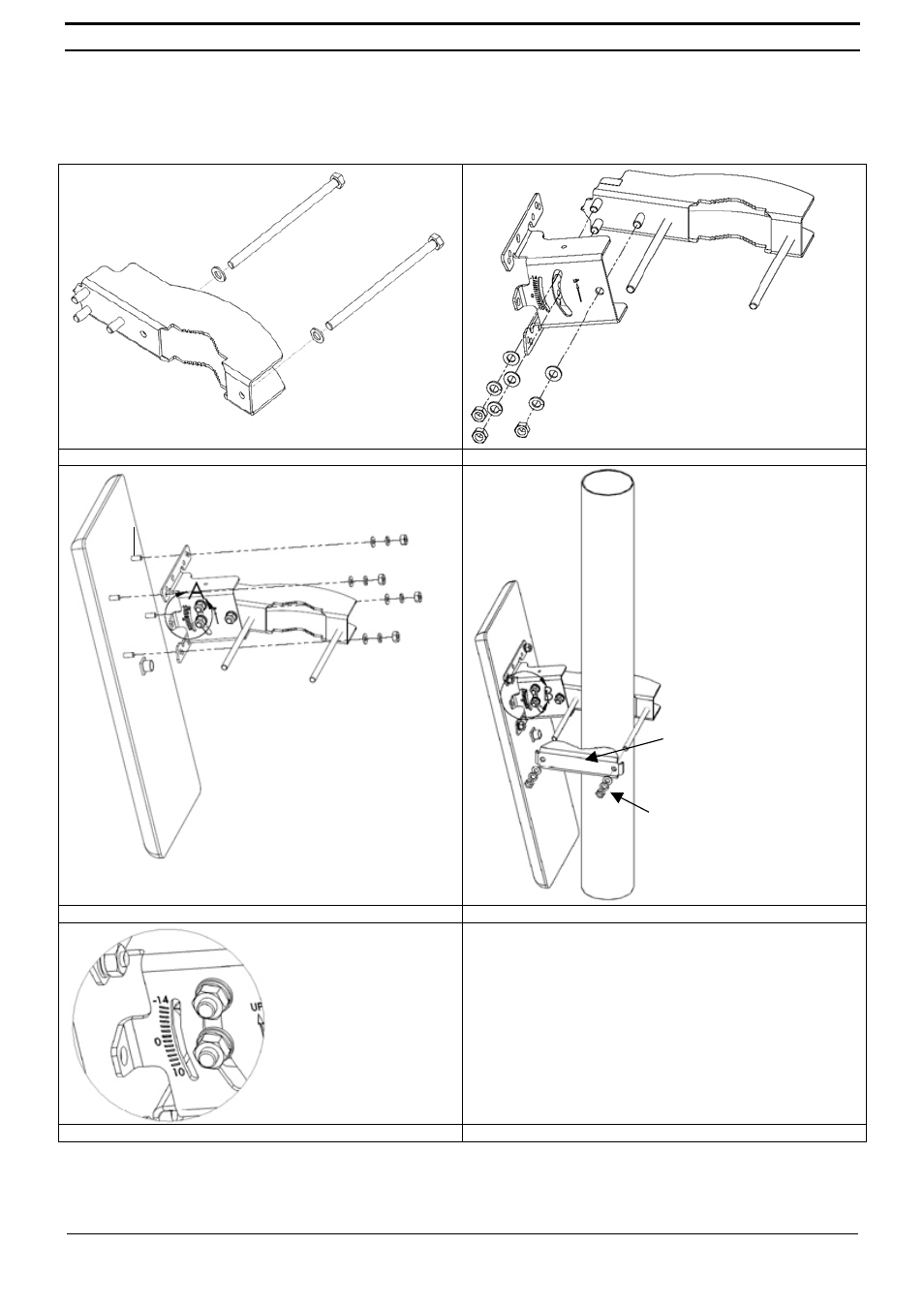

Antenna Mounting Instructions
2
P/N 214219
September 2005
Figure 1
Figure 2
Figure 3
Figure 4
Figure 5
Elevation
Bracket
M8x150mm
bolts
Pole Bracket
M8 flat
washers
Welded bolts
M8 flat & spring washers,
and nuts
¼” studs
Pole
¼” flat & spring
washers, and nuts
U-Bracket
Elevation Scale
M8 flat & spring washers,
and nuts
Antenna
