16 Mighty Mule 362-D Installation Instructions rev 07/19/11
SURGE PROTECTOR
Transformer
RED to POSITIVE
BLACK to NEGATIVE
Battery Cable
from Control Box
0 2

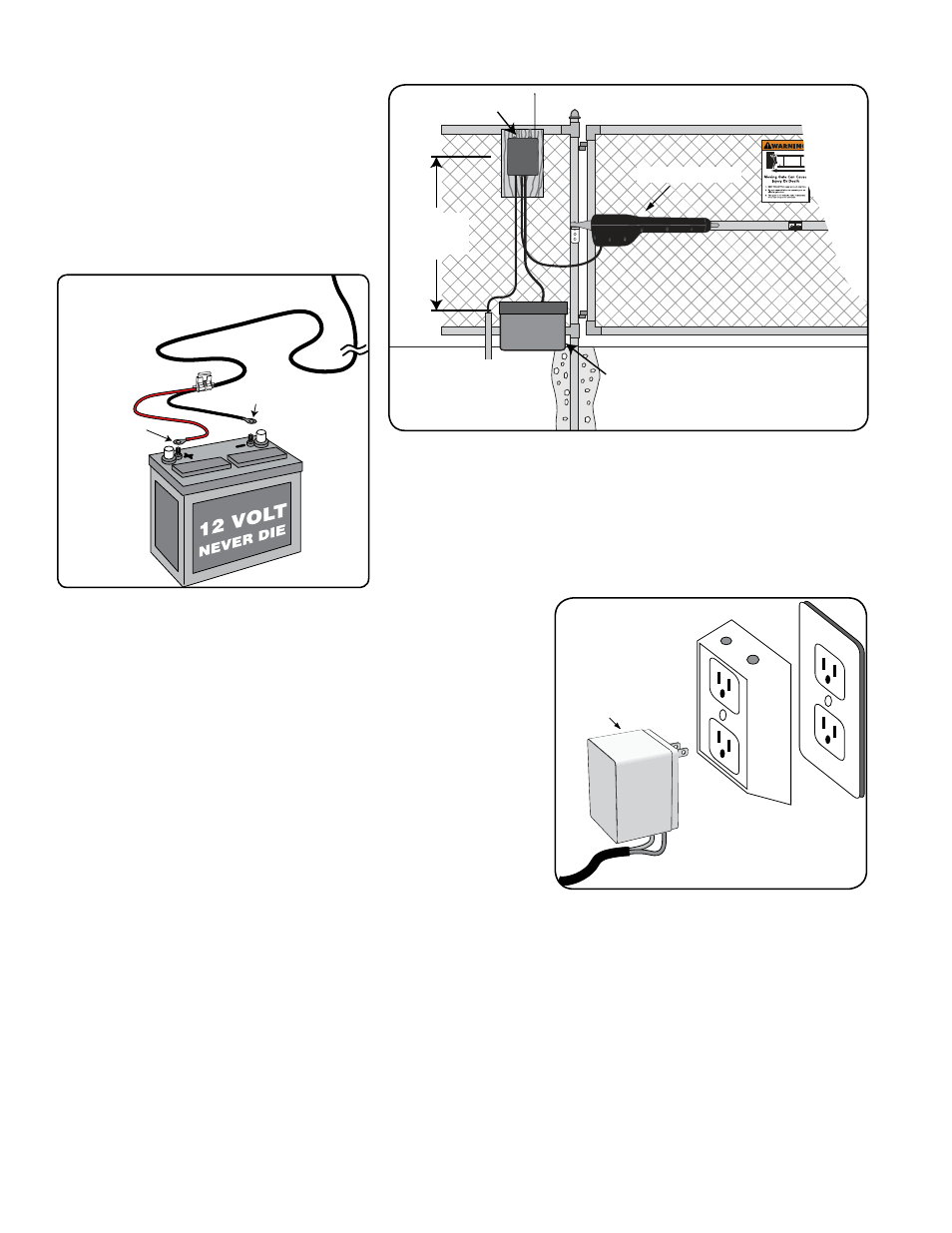

Connect the Battery
Step 1
Place the 12 Volt automotive/lawn tractor
battery and its weatherproof case within 6 feet
of where the control box is mounted.
Step 2
Attach the battery wires provided to the terminals of the battery. Take
care to attach the BLACK wire to the NEGATIVE terminal and the
RED wire to the POSITIVE terminal. Reverse connection will cause
damage to the control board.
Step 3
Plug the transformer into the electrical outlet. Use of a surge protector
with the transformer is strongly recommended. If electrical outlet is
located outdoors, outlet and transformer should be protected by a
weatherproof cover.
Set the CLOSED Position Limit
for
PULL-TO-OPEN Installation
Your transmitter must be able to operate the gate. If not see, "Personalize Your Transmitter Setting on page 18.
Note: The OPEN limit is when the opener is fully retracted and the gate is in the full open position. The open limit
setting can only be adjusted by moving the gate bracket. To achieve the optimum closed position, you must adjust the
CLOSED limit setting:
Step 1
Make sure the Control Box is ON and that the gate is in the OPEN POSITION (arms fully retracted).
Step 2
Press and HOLD the 2nd Opener CLOSE button on the control board and be prepared to RELEASE the button when the
gate reaches the desired closed position/limit. Use the JOG OPEN and CLOSE buttons to "fine tune" the gate position if
neccessary.
12 Volt automotive or marine
type battery in weather proof
housing (not included).
First Gate Opener
Control Box
With-in
6 feet
