appear and will be active.

Section 2.3.6.2 Password System Operation

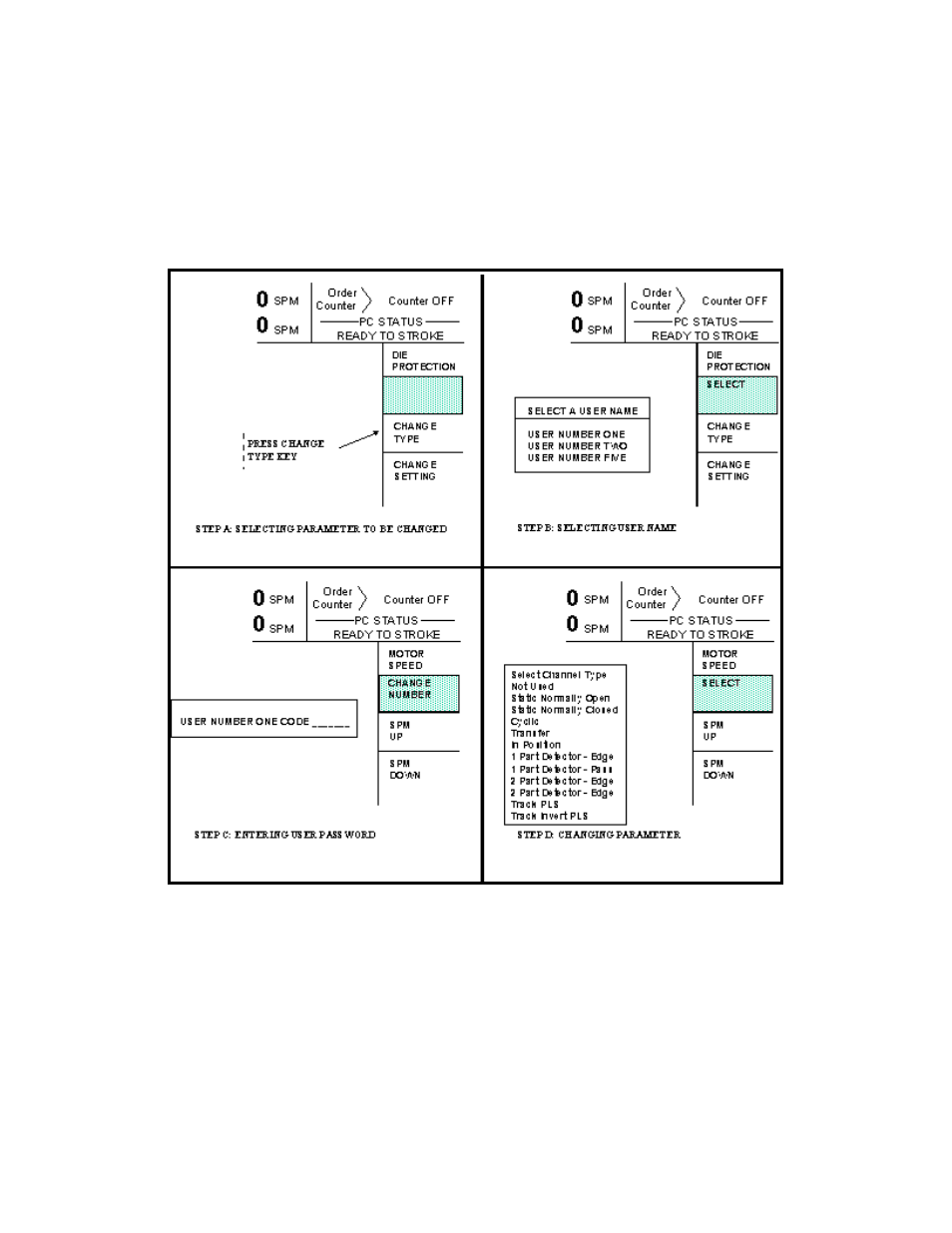

Figure 2.2 displays a typical password entry sequence. This example shows the steps necessary to
change a die protection channel setting. This is typical for password entry for all restricted items.

Figure 2.2 Password Entry Sequence

Step A:

Select the restricted item. In the example shown in Figure 2.2 the restricted item is
die protection Change Type. Once the parameter is selected then Softkey # 1 the
upper vertical softkey (Softkey # 1 is highlighted in Figure 2.2) , will display the
legend “Select”.

Step B:

A list of users that have access to this restricted item will appear. In the example
